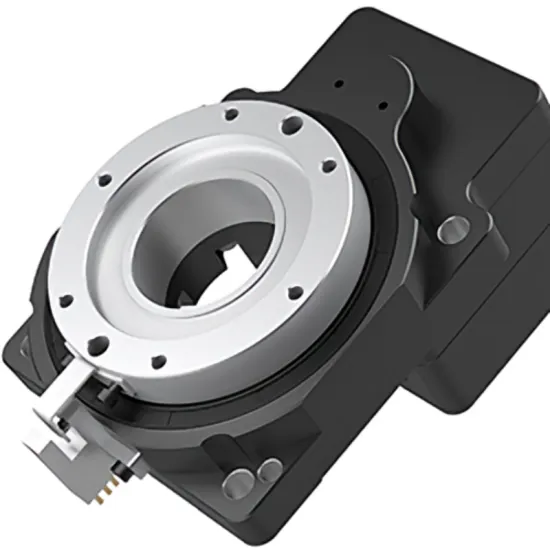

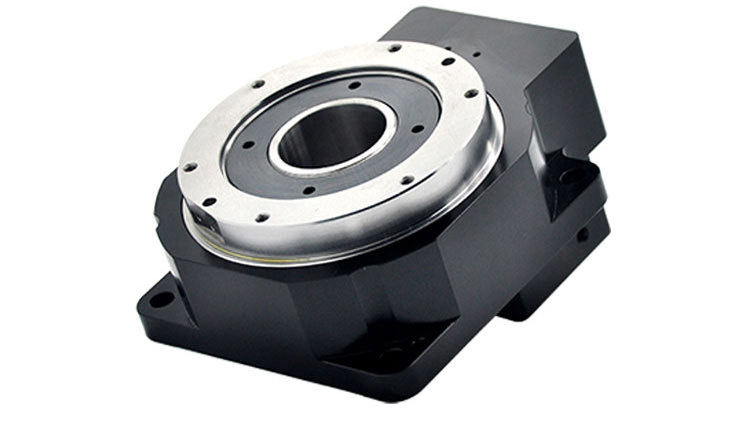

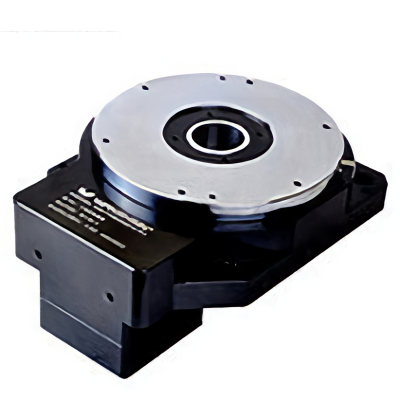

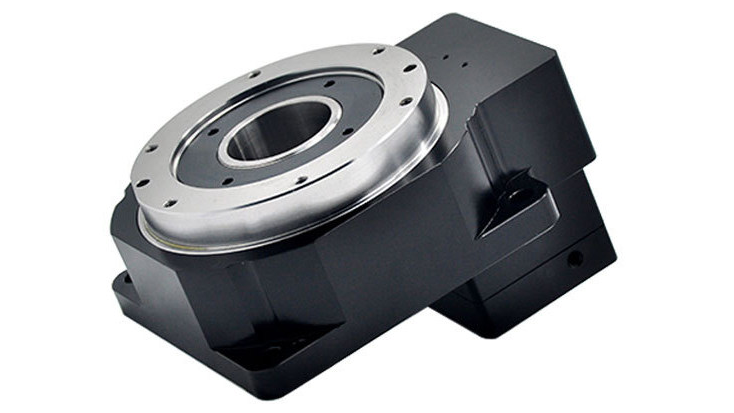

Product Showcase
|
|
Material Structure
The aluminum alloy casing, crafted with a special process, has a bright, smooth, and exquisite appearance. |
The stainless steel rotary platform and hollow shaft are adaptable to a wider range of environments. |
Backlash-free fit |
Features
| High output | High rigidity | High precision |
| High efficiency | High hardness teeth | Low noise |
Product Overview
1. Product Overview
The hollow rotary platform, driven by a motor, achieves automated angle adjustment. It is a revolutionary product in rotary motion mechanisms, capable of replacing both DD motors and dividers, striking a balance between the two. With a repeatability of ≤5 seconds, the motor is easily configured, provides stable load-bearing capacity, and can be paired with AC servo motors or stepper motors for arbitrary angle division. It can satisfy digital control requirements that dividers cannot achieve, and its positioning accuracy rivals that of DD motors. This significantly reduces costs and brings unexpected results.
2、Product Features
◆High output, high rigidity, high precision, high efficiency, high-hardness tooth surface, and low noise;
◆The rotating surface can directly lock the workpiece, improving the ease of workpiece loading;
◆High precision, positioning accuracy less than 1 arcmin, repeatability up to ±5 arcsec;
◆Smooth and stable rotation of the disc, and rapid positioning; compatible with servo and stepper motors from various manufacturers;
◆Hollow structure design, convenient for wiring and piping, and allows for arbitrary motor configuration.
3、Material Structure
New material：
The aluminum alloy casing, crafted with a special process, has a bright, smooth, and exquisite appearance.
The stainless steel rotating platform and hollow shaft make it suitable for a wider range of environments.
Adjustable structure：
Zero backlash fit。
4、Application areas
Hollow rotary platforms are widely used in CNC indexing devices, robotic arm joints, fourth machining axes of machine tools, military radar, automated production lines, and other automation industries.
Product Categories

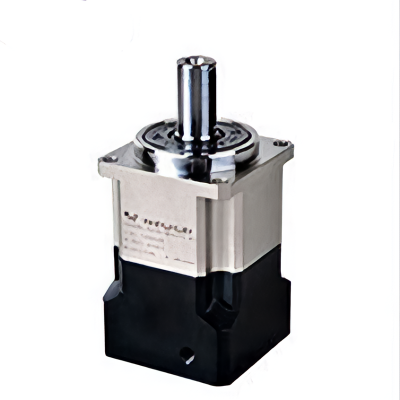

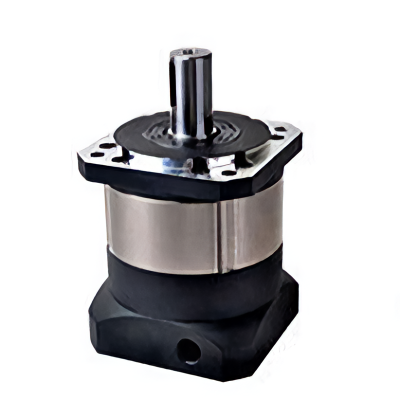

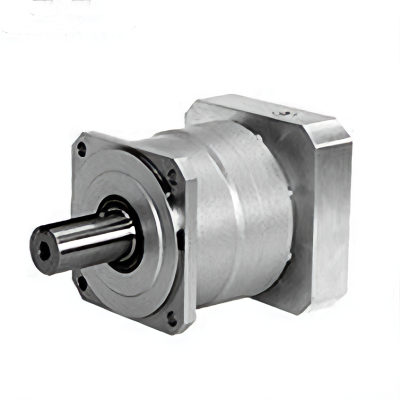

WAB series helical planetary gear reducers |
WAD series helical planetary gear reducers |
WVRB series helical gear planetary reducer |
WSF series helical planetary gear reducers |
WME series spur gear planetary reducer |
WPF series spur gear planetary gear reducers |
WPL series spur gear planetary reducers |

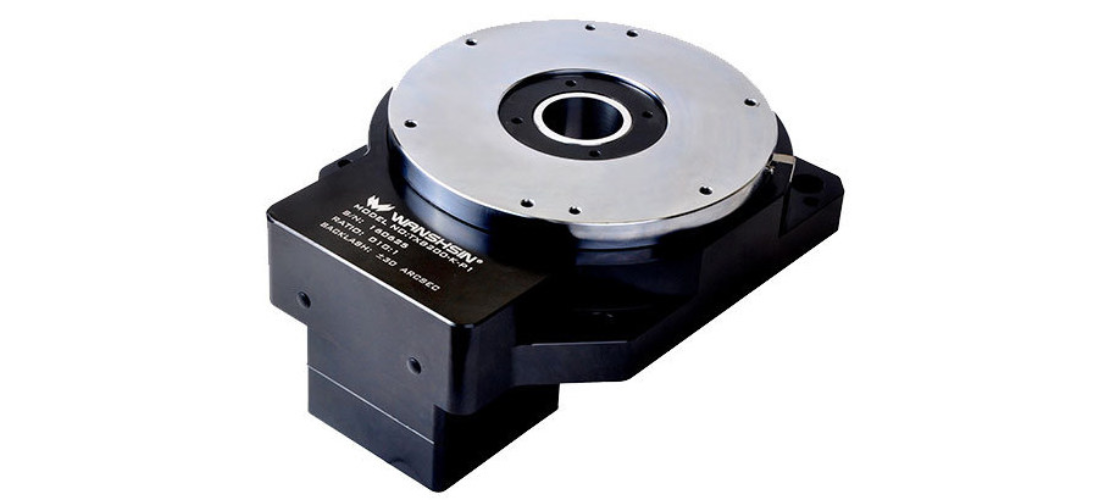

WT Series Hollow Rotary Platform |

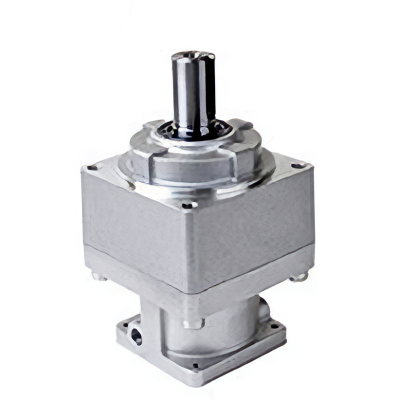

WR series corner planetary gear reducers |
Performance data
Specifications | Unit | WTN060 | WTN060+WVRB042 | WTN060+WRS042 |
Applicable motor models | 42stepper motor | 50W~100Wservo motor | motor shaft diameter≤8 | |
Bearing type | crossed roller bearing | |||
Ratio | 5 10 18 | 25 40 50 70 100 | 15 30 50 | |
Rotational inertia | Kg.m² | 3507x10-7 | ||
Rated output torque | N.m | 5.2 4.6 1.2 | 5.2 | 5.2 |
Rated output speed | rpm | 300 | ||
Angular transmission accuracy | arcmin | <2 | ||
Reset positioning accuracy | arcsec | <15 | ||
Backlash | arcmin | <1 | <3 | <3 |
Allowable axial load | N | 250 | ||
Allowable moment of inertia | N.m | 5 | ||
Parallelism of rotation platform | mm | 0.015 | ||
Concentricity of rotation platform | mm | 0.01 | ||
Output end face runout | mm | 0.008 | ||
Noise | dB | 65 | 60 | 65 |
Service life | h | 20000 | ||
Protection level | IP | 40 | ||
Weight | Kg | 0.6 | 1.2 | 1.3 |

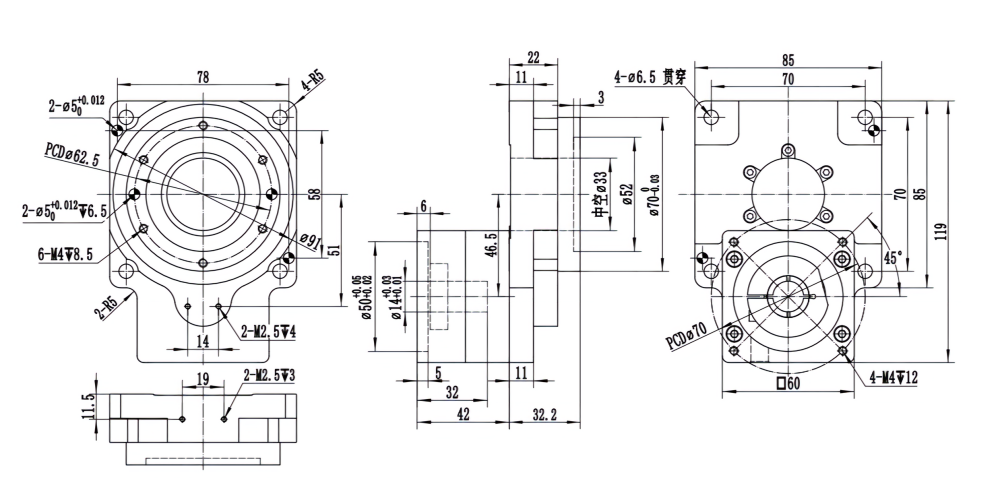

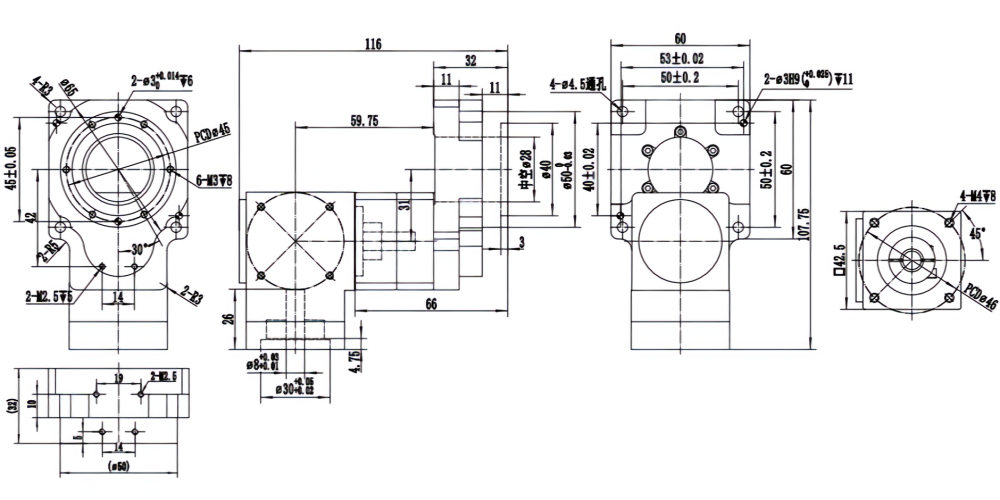

5/10 Scale Outline Drawing
18 Comparison of External Views

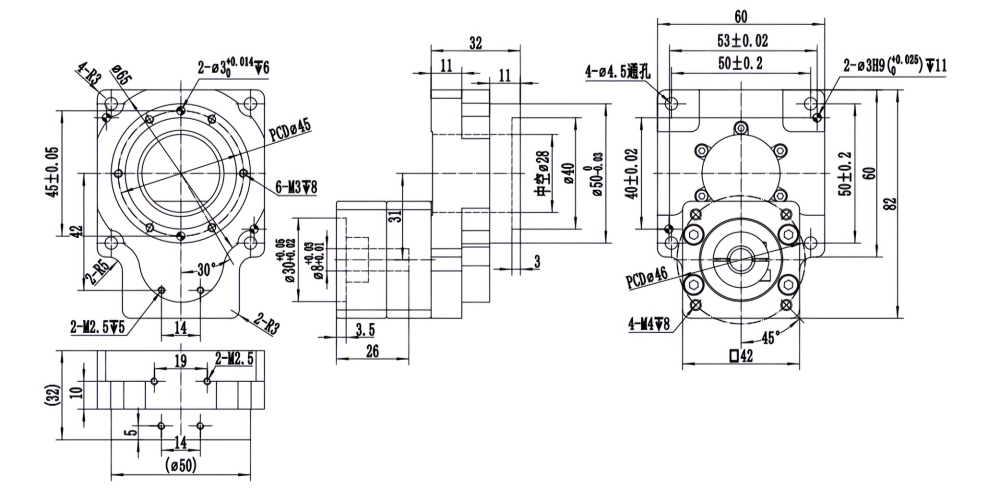

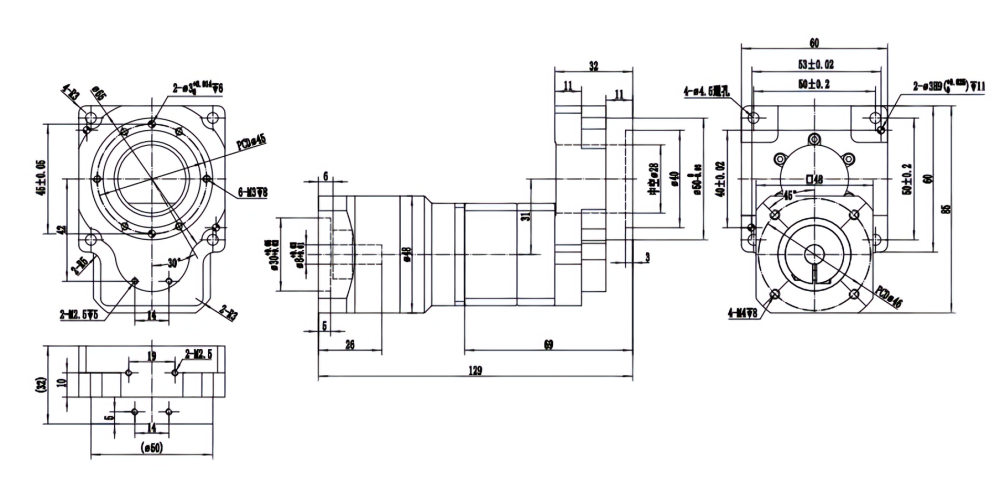

Composite planetary profile diagram

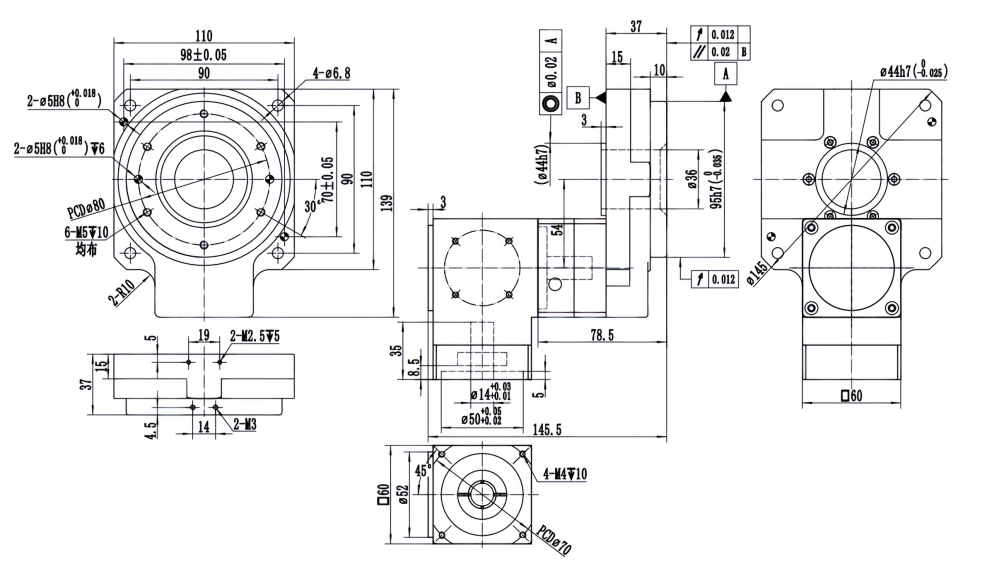

Modular Corner Outline Drawing
Specifications | Unit | WTN085 | WTN085+WVRB060 | WTN085+WRS060 |
Applicable motor models | 57stepper motor | 200W~400Wservo motor | motor shaft diameter≤14 | |
Bearing type | crossed roller bearing | |||
Ratio | 5 10 | 30 40 50 70 100 | 15 30 50 | |
Rotational inertia | Kg.m² | 12593x10-7 | ||
Rated output torque | N.m | 12 10 | 12 | 12 |
Rated output speed | rpm | 300 | ||
Angular transmission accuracy | arcmin | <2 | ||
Reset positioning accuracy | arcsec | <15 | ||
Backlash | arcmin | <1 | <2 | <2 |
Allowable axial load | N | 500 | ||
Allowable moment of inertia | N.m | 10 | ||
Parallelism of rotation platform | mm | 0.015 | ||
Concentricity of rotation platform | mm | 0.01 | ||
Output end face runout | mm | 0.008 | ||
Noise | dB | 65 | 60 | 65 |
Service life | h | 20000 | ||
Protection level | IP | 40 | ||
Weight | Kg | 1.2 | 2.7 | 2.5 |

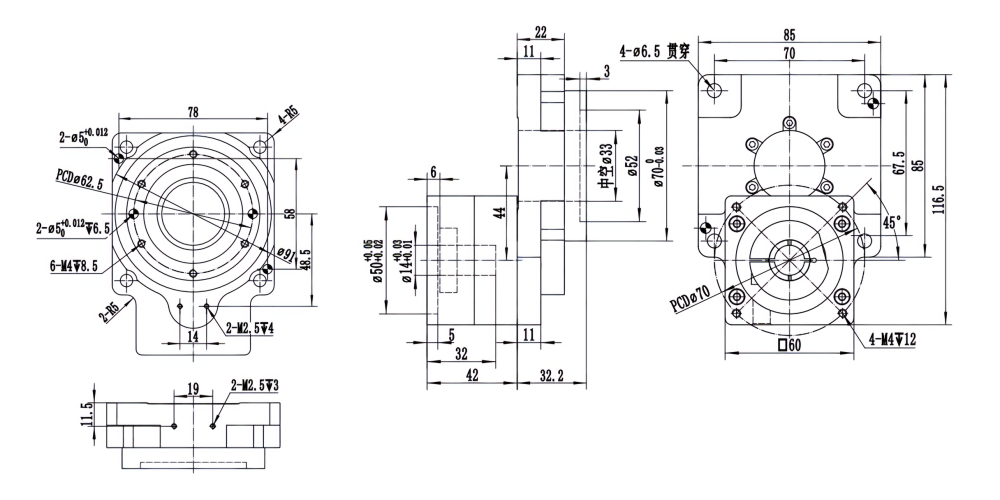

5 Exterior view
10 Exterior View Drawing

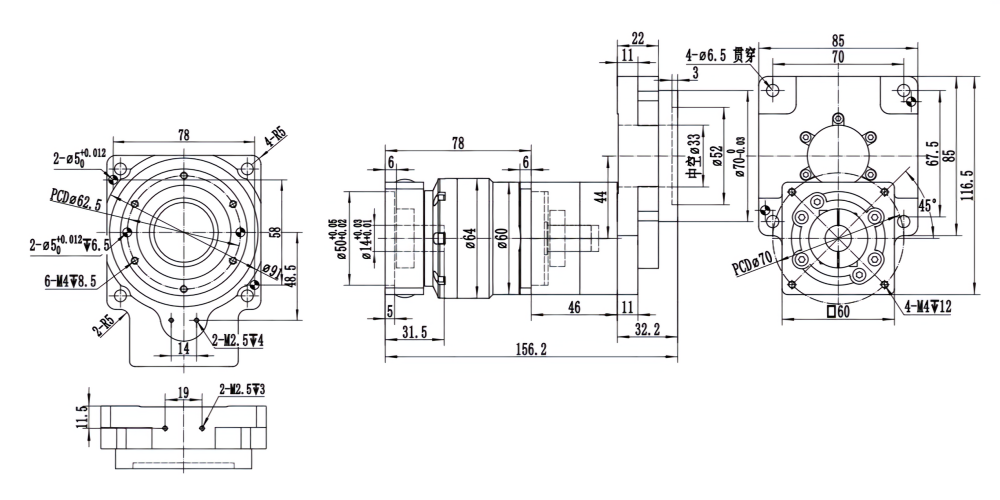

Composite planetary profile diagram
Specifications | Unit | WTN130 | WTN130+WVRB060 | WTN130+WRS060 |
Applicable motor models | 57stepper motor | 200W~400Wservo motor | motor shaft diameter≤14 | |
Bearing type | crossed roller bearing | |||
Ratio | 10 18 | 30 40 50 70 100 | 10 30 50 | |
Rotational inertia | Kg.m² | 8155x10-6 | ||
Rated output torque | N.m | 32 20 | 32 | 32 |
Rated output speed | rpm | 200 | ||
Angular transmission accuracy | arcmin | <1.5 | ||
Reset positioning accuracy | arcsec | <15 | ||
Backlash | arcmin | <1 | <2 | <2 |
Allowable axial load | N | 2000 | ||
Allowable moment of inertia | N.m | 50 | ||
Parallelism of rotation platform | mm | 0.02 | ||
Concentricity of rotation platform | mm | 0.012 | ||
Output end face runout | mm | 0.012 | ||
Noise | dB | 65 | 60 | 65 |
Service life | h | 20000 | ||
Protection level | IP | 40 | ||
Weight | Kg | 2.8 | 4.3 | 4.1 |

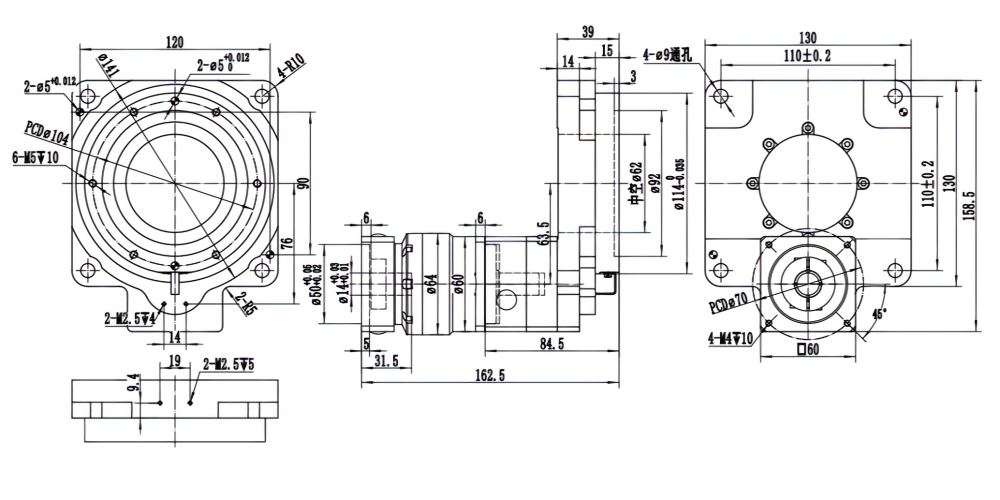

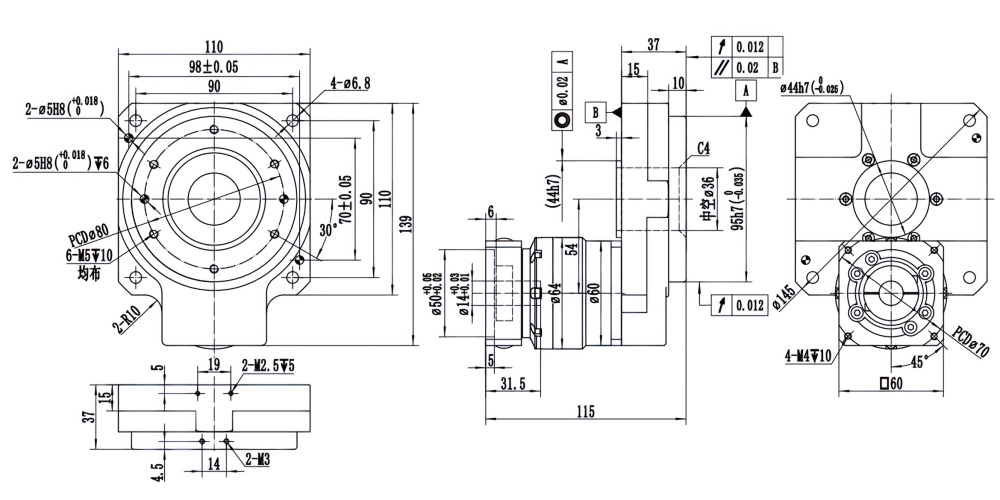

Composite planetary profile diagram

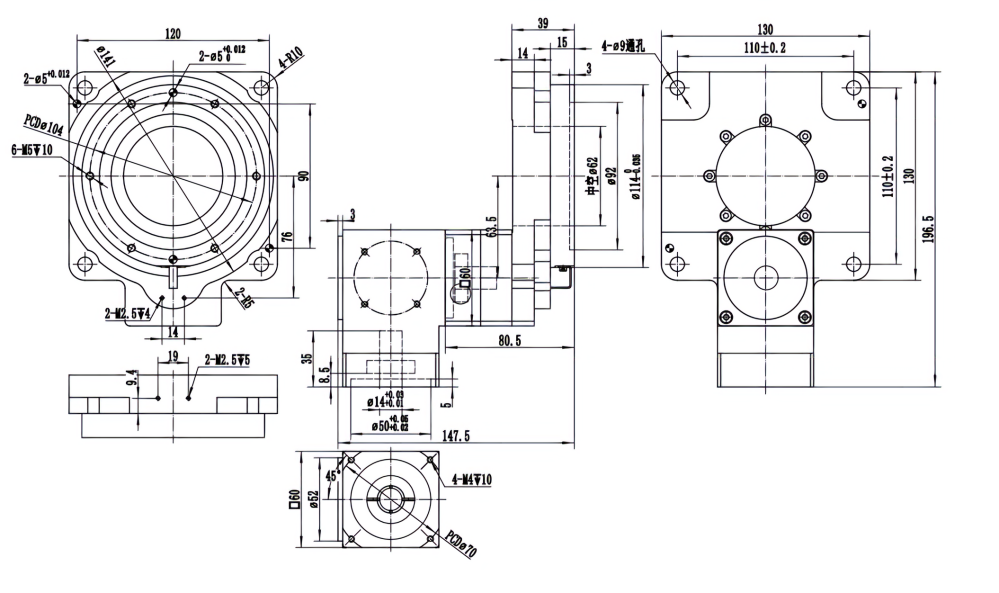

Modular Corner Outline Drawing

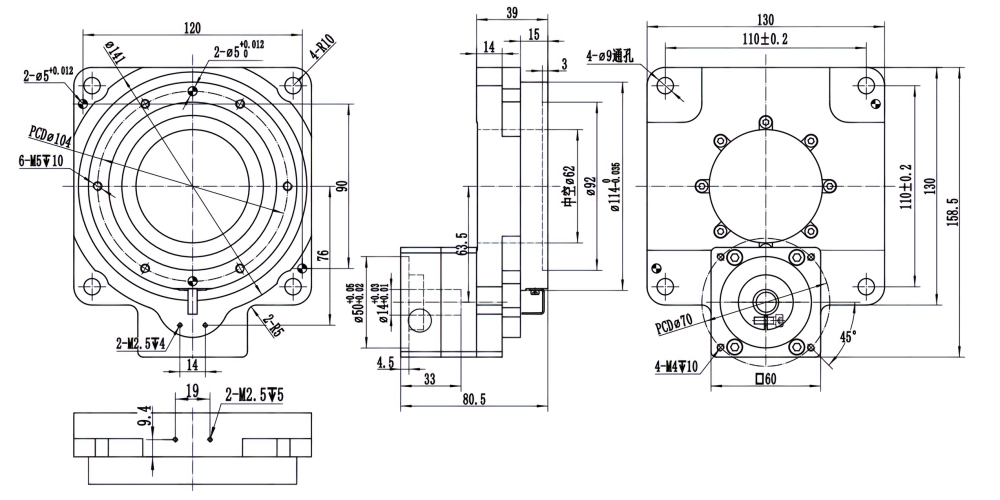

10/18 Outline Drawing
Specifications | Unit | WTN200 | WTN200+WVRB090 | WTN130+WRS060 |
Applicable motor models | 86stepper motor | 750W servo motor | motor shaft diameter≤14 | |
Bearing type | crossed roller bearing | |||
Ratio | 10 18 | 30 40 50 70 100 | 10 30 50 | |
Rotational inertia | Kg.m² | 36122x10-6 | ||
Rated output torque | N.m | 70 70 | 70 | 70 |
Rated output speed | rpm | 200 | ||
Angular transmission accuracy | arcmin | <1 | ||
Reset positioning accuracy | arcsec | <10 | ||
Backlash | arcmin | <1 | <2 | <2 |
Allowable axial load | N | 4000 | ||
Allowable moment of inertia | N.m | 100 | ||
Parallelism of rotation platform | mm | 0.02 | ||
Concentricity of rotation platform | mm | 0.012 | ||
Output end face runout | mm | 0.012 | ||
Noise | dB | 67 | 62 | 67 |
Service life | h | 20000 | ||
Protection level | IP | 40 | ||
Weight | Kg | 9.6 | 13.3 | 13.7 |

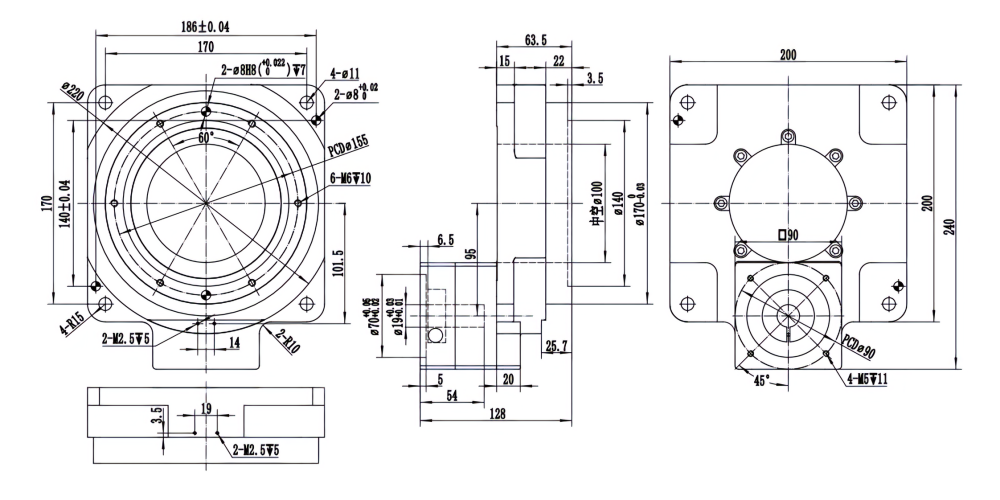

Composite planetary profile diagram
Modular Corner Outline Drawing
10/18 Outline Drawing
