Product Description
Powerful Motor – A Heart That Never Stops
All-aluminum housing, pure copper motor; precise speed, powerful performance, rapid heat dissipation, and long service life.
Energy conservation |
Mute |
smooth |
Durability |
We are everywhere in life.
Automation equipment |
3D printer |
Stage lighting |
Automated Home Living |
Powerful performance driven by a pure copper-wound motor
Technology makes life better

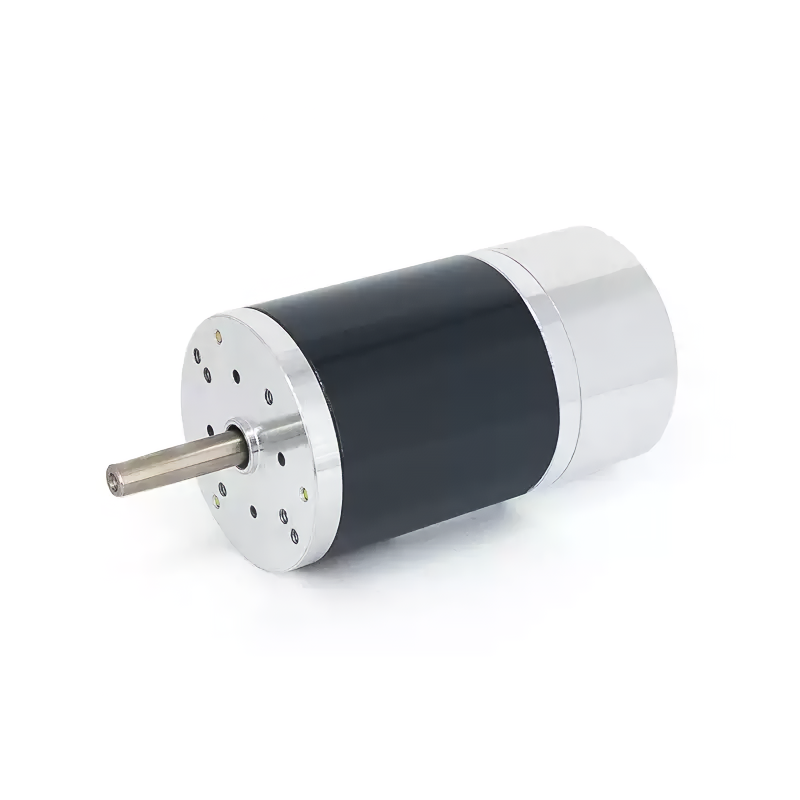

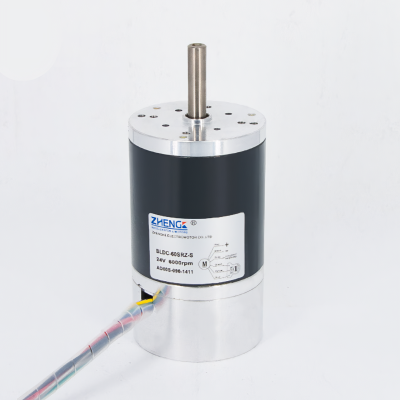

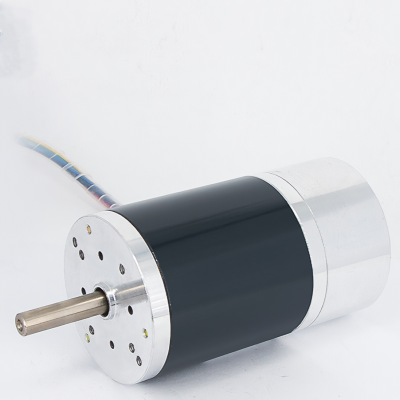

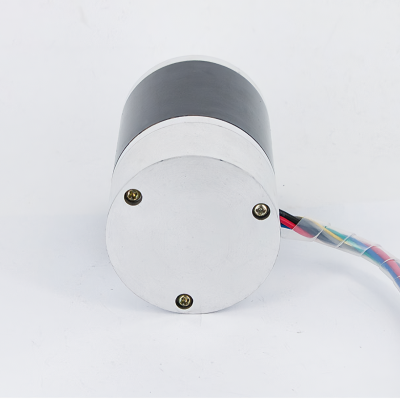

Product Showcase
Zhengke Motor: Turning the World
|
|
|
Great products win through attention to detail.
| Output shaft |  | wiring |
| Screw hole |  | Product Label |
Specification Parameters
Product Specifications
Data speaks for itself.
BLDC-60S
Primary Uses Automatic vending machines, precision gear assemblies, document scanners, smart home devices, office equipment Automation systems, home appliance automation, production automation, medical devices, financial equipment, gaming machines Smart openers, paper shredders, electric safes, electronic locks, high-end toys. |
|

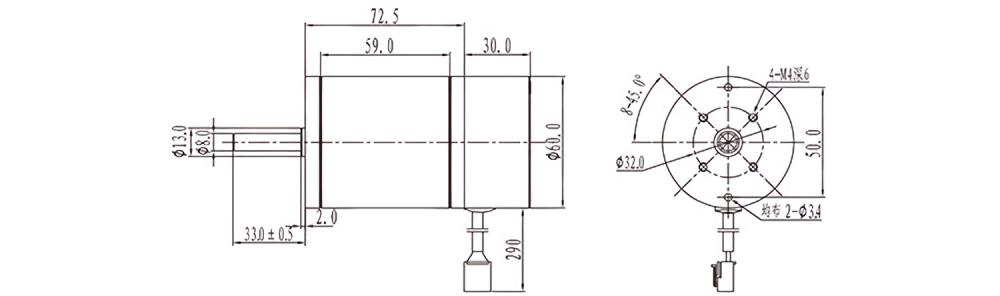

Motor Outline Drawing
Motor and Electrical Performance
Model Name | Voltage | No-load | load | Direction of rotation | quality | |||
D.C | Current (mA) | Rotational speed (r/min) | Torque (gf·cm) | Current (mA) | Rotational speed (r/min) | (g） | ||
BLDC－60S | 12v | 400 | 2000 | 600 | 1200 | 1600 | CCW | 850 |
BLDC－60S | 12v | 530 | 3000 | 900 | 2400 | 2400 | CCW | 850 |
BLDC－60S | 24v | 410 | 300 | 1000 | 1400 | 2400 | CCW | 850 |
BLDC－60S | 24v | 520 | 4000 | 1700 | 2900 | 3200 | CCW | 850 |

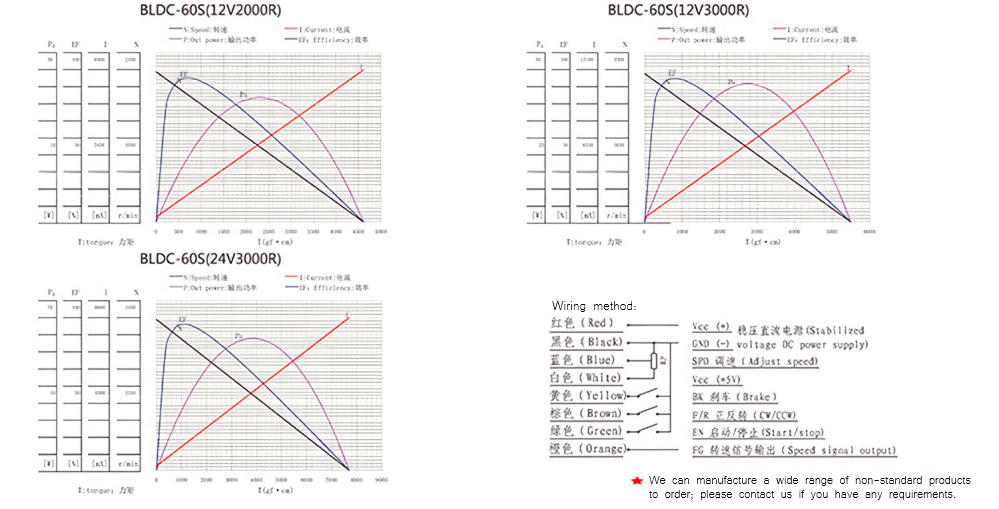

Motor unit load characteristic curve
Use tolerance
Observe the specified voltage and current ranges and operate the motor under the conditions defined in this standard; otherwise, motor performance and service life will be compromised.
Material handling motor
Handle with care, and utilize the motor housing whenever possible.
Motor wiring
Brushed motor: Connect the red lead to the positive terminal and the black lead to the negative terminal; if connected in reverse, the motor will rotate in the opposite direction.
Brushless motor: Please wire strictly according to the wiring diagram; connecting the power leads in reverse will damage the motor.
Overload
Operate the motor within the load limits specified by the company whenever possible. Strictly avoid stalling the motor or operating it in a near-stall condition for extended periods; doing so will cause the motor to burn out.
Storage temperature: 0°C–40°C; storage humidity: 15%–90% RH; avoid environments with high temperatures, high humidity, or corrosive gases.
Motor operating temperature: 0°C–50°C.

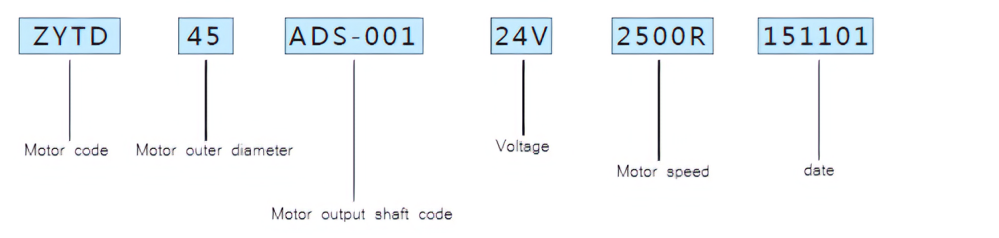

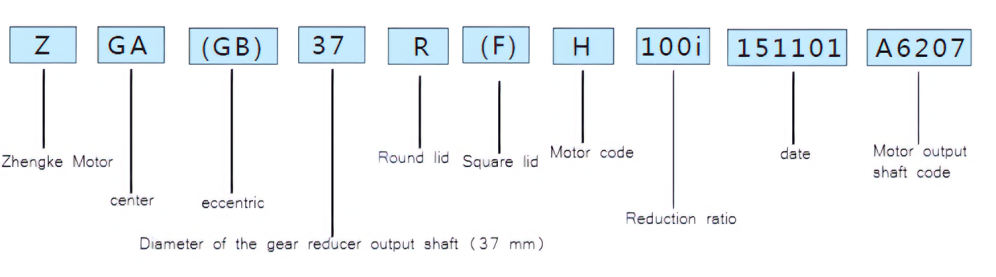

Model and Description
High-Power DC Geared Motor Models and Specifications
Unit Conversion Table
N.m | mN.m | gf.cm | kgf.cm |
1 | 1000 | 10200 | 10.2 |
0.001 | 2 | 10.2 | 0.0102 |
9.8×10-5 | 9.8×10-2 | 1 | 10×10-3 |
9.8×10-2 | 98 | 1000 | 1 |
Packaging & Transportation
Package
We fully understand that the safety of goods during transit is paramount, which is why we have invested significant effort into our packaging. Our professional packaging team selects the most suitable materials based on the specific characteristics of the goods, minimizing the risk of damage during shipping. Our packaging serves as a solid guarantee of safety and quality, ensuring a secure experience from start to finish.
transportation
We partner with world-renowned international express delivery companies that possess extensive global networks and efficient logistics systems, ensuring your cross-border parcels are delivered quickly and safely.
