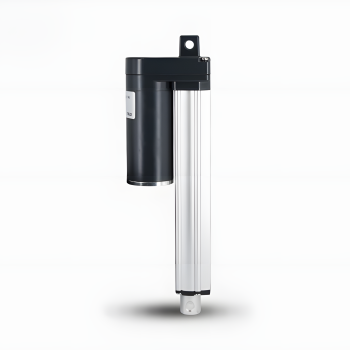

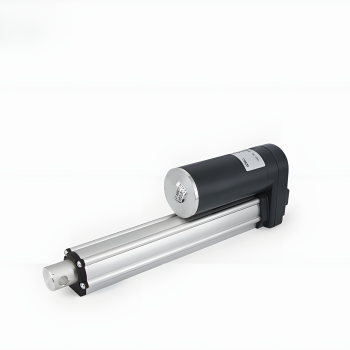

ZHENGKE ZGB800F Linear Actuator Motor (DC, 12V/24V, various stroke lengths)

Voltage：

12V

24V

Stroke：

30mm

50mm

100mm

150mm

200mm

400mm

500mm

600mm

700mm

Contact customer service for custom stroke

USD 100

Monthly Output100

contact shop

Powerful Motor, Unstoppable Performance

All-aluminum housing, pure copper motor;

precise speed, robust power, rapid heat dissipation, and long service life.

Energy-efficient

Quiet

Stable

Durable

Fourteen years of dedication to quality manufacturing by Zhengke

Gear motors are a source of pride for Zhengke

We are everywhere in your daily life

Zhengke Motor — Turning the World


Automation Equipment	3D Printers	Stage Lighting

*Automated Home Living

Product Showcase

Zhengke Motor — Turning the World

Powerful performance from a pure copper-wound motor

Technology makes life better

Premium Quiet-Operation Bearing Lubricant

Formulated for quiet operation, this lubricant ensures the motor shaft runs silently over extended periods,

effectively reduces bearing vibration, and provides rust and corrosion protection.

Great products win through attention to detail

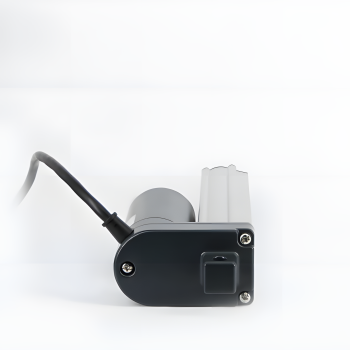

Exquisite details embody Zhengke's unwavering dedication

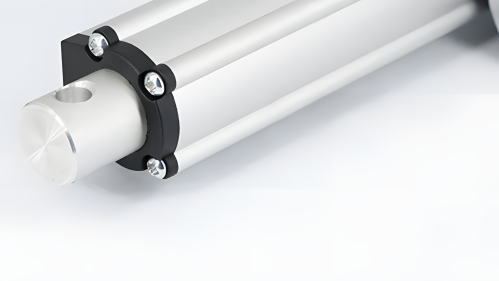

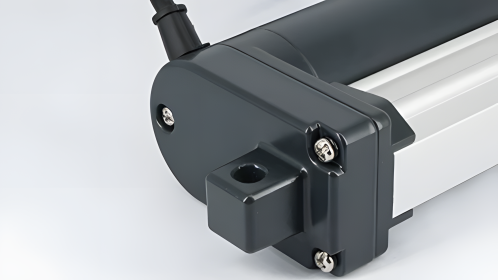

Output shaft	Screw hole

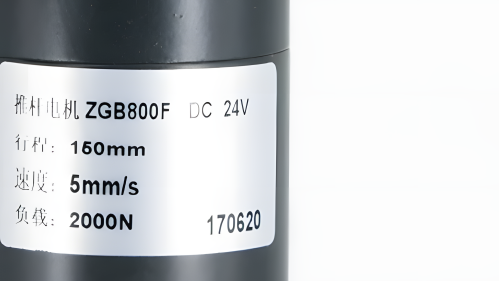

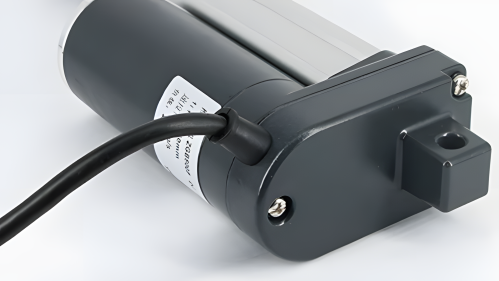

Wiring	Product label

Product Specifications

The Data Speaks for Itself

Housing material	Metal
Output bearing type	Ball bearing
Radial force	≤3 kgf
Axial force	≤5 kgf
Maximum permissible press-in force on the spindle	≤30 kgf
Radial clearance	≤0.1 mm
Axial clearance	≤0.5 mm

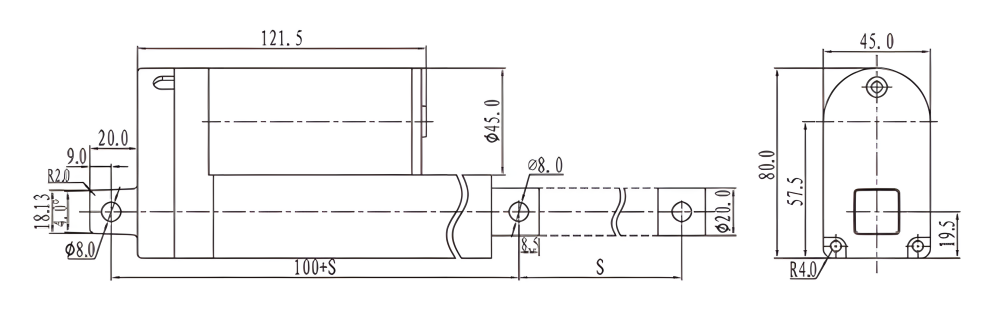

Motor Outline Drawing

Motor and Electrical Performance

Input voltage	12V、24V、36V、48V DC
Maximum load	750N	500N	250N	125N
Maximum speed	7mm/s	10mm/s	23mm/s	42mm/s
Standard stroke	(50–900 mm) (Customizable)
Operating frequency	10% (Max. 2 min on / 18 min off)
Ambient temperature	0°C – 40°C

Operating Limits

Observe the specified voltage and current ranges; operate the motor within the limits defined in this standard to avoid compromising performance or service life.

Handling

Handle with care; whenever possible, hold the motor by its housing.

Wiring

Brushed motors: Connect the red lead to the positive terminal and the black lead to the negative terminal; reversing the connections will reverse the direction of rotation.

Brushless motors: Follow the wiring diagram strictly; reversing the power supply connections will damage the motor.

Overload

Operate within the load range specified by the company; do not allow the motor to stall or run in a near-stall condition for extended periods, as this will cause the motor to burn out.

Storage

Storage temperature: 0°C–40°C; storage humidity: 15%–90% RH; avoid environments with high temperatures, high humidity, or corrosive gases.

Operating temperature: 0°C–50°C.

Scope of Application


Robots	Amusement Equipment	Smart Home	Smart Lock	Vending Machine

WIRING DIAGRAM

Zhengke Motor: Focused on Quality

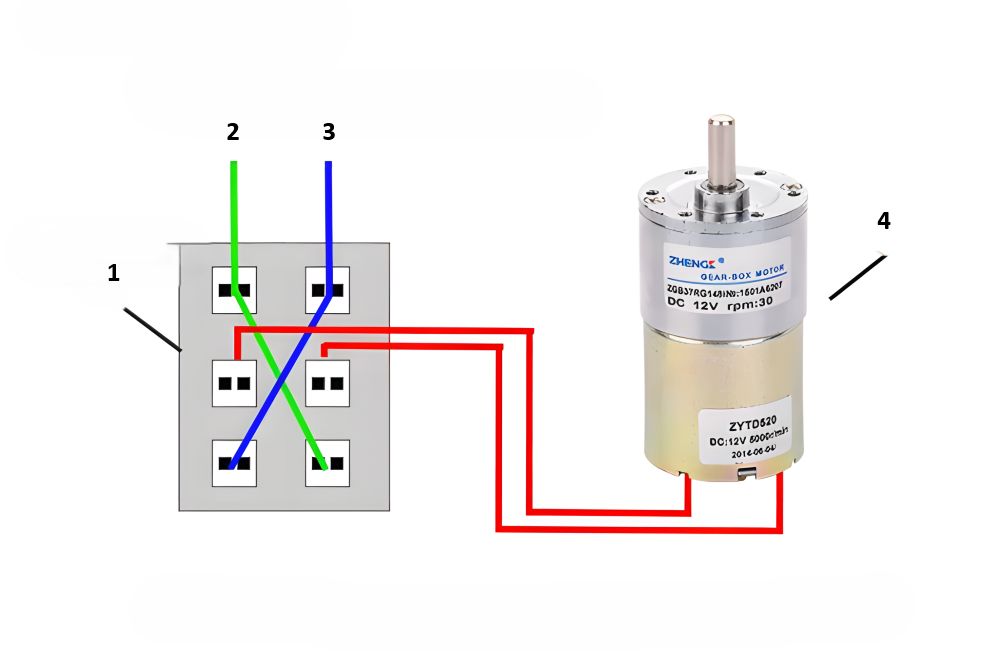

Forward/Reverse Wiring Diagram

**Note: This wiring method is suitable only for brushed motors; it is not suitable for brushless motors

1. Forward/Reverse switch

2. Connect to power supply

3. (Non-polarized)

4. Motor

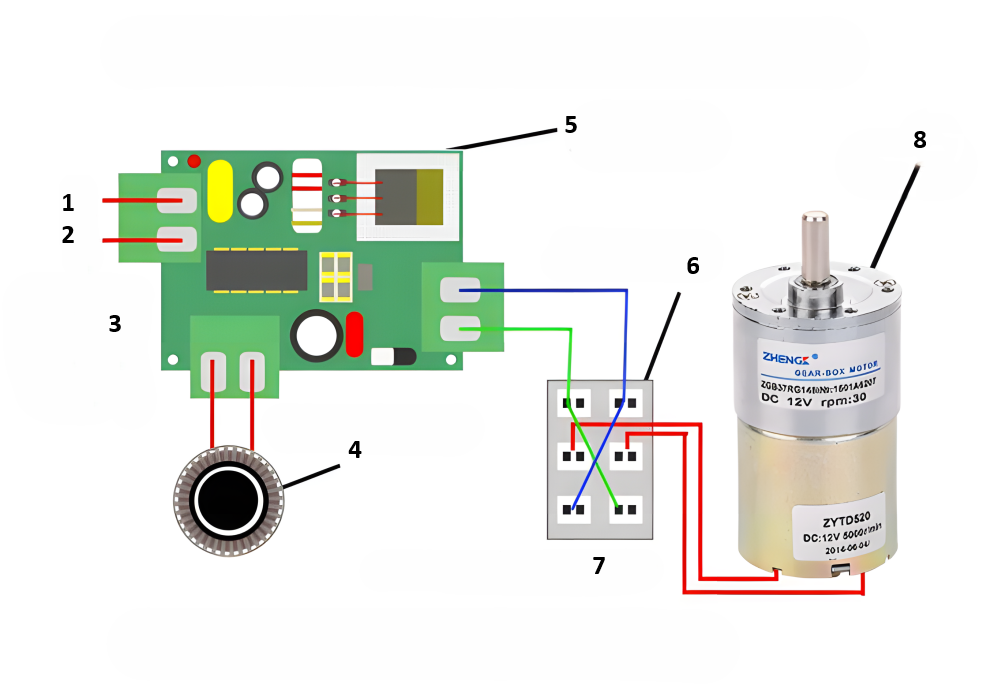

Wiring Diagram for Standard Brushed Motor Speed Controller and Forward/Reverse Switch

**Note: The power supply voltage must match the motor's rated voltage.

1. Positive

2. Negative

3. Do not reverse the positive and negative power supply connection

4. Speed Control Knob

5. Speed Controller

6. Forward/Reverse Switch

7. Connect to Motor

(polarity-independent)

8. Motor

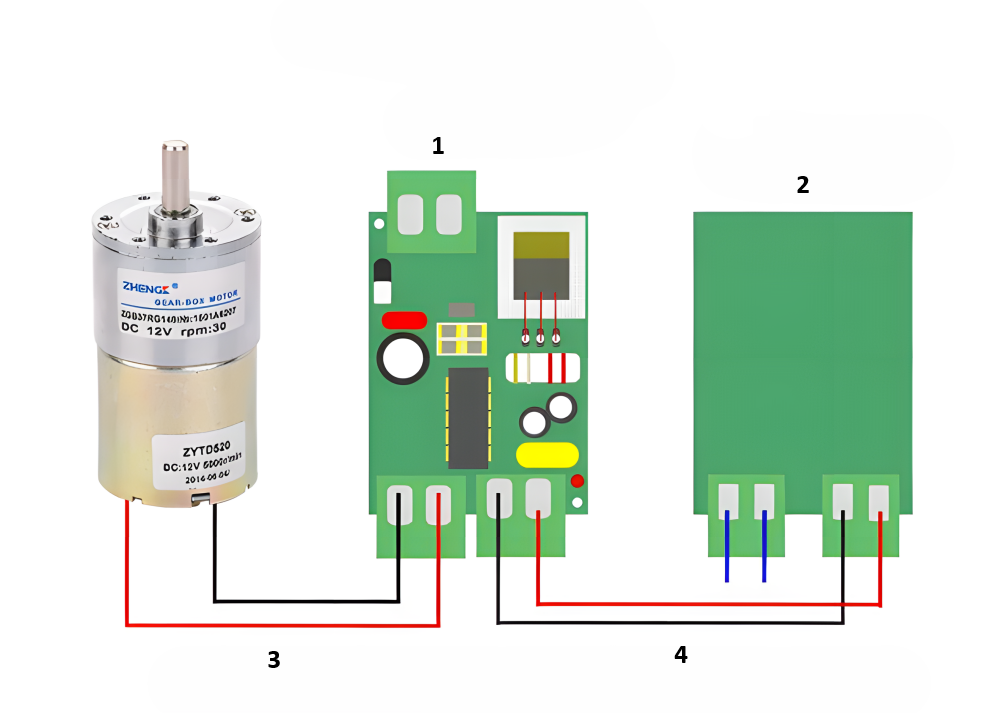

Wiring diagram for stepless speed control

1. Speed Controller

2. Switching Power Supply

3. Positive and negativ terminals can be connected either way.

4. Do not reverse the positive and negative connections of the power cord.

Model and Description

Z	GA	(GB)	37	R
Zhengke Motor	Center	Eccentric	Diameter of the gear reducer output shaft (37 mm)	Round cover
(F)	H	100i	151101	A6207
Square cover	Motor code	Reduction ratio	Date	Motor output shaft code
