Powerful Motor – A Heart That Never Stops
All-aluminum housing, pure copper motor; precise speed, powerful performance, rapid heat dissipation, and long service life.
Energy conservation |
Mute |
smooth |
Durability |
We are everywhere in life.
Automation equipment |
3D printer |
Stage lighting |
Automated Home Living |
A Deep Dive into Performance

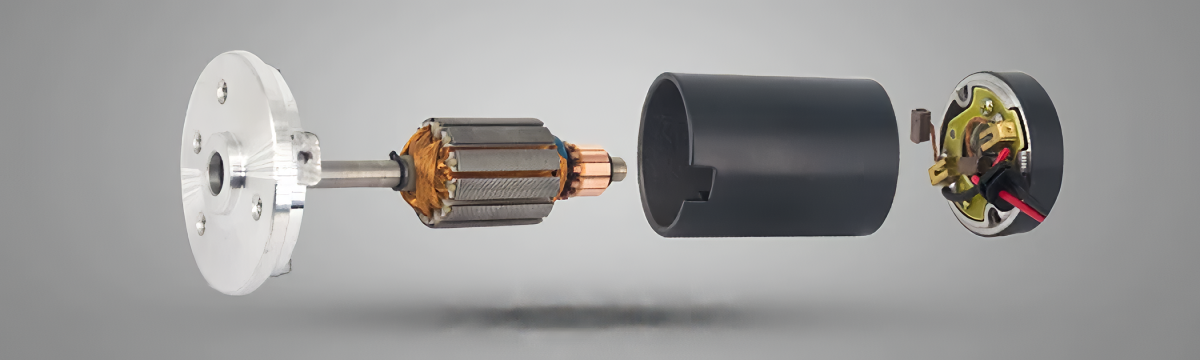

| Ball bearing | Pure copper wire | magnet | Carbon brush |

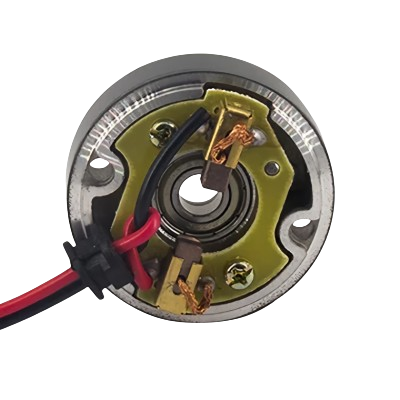

Imported gold-containing carbon brushes Superior wear resistance; extends the service life of the carbon brushes. |
|
| 100% pure copper wire Compared to aluminum wire, copper wire offers lower resistance and superior electrical conductivity. It also features low heat generation and a long service life. |

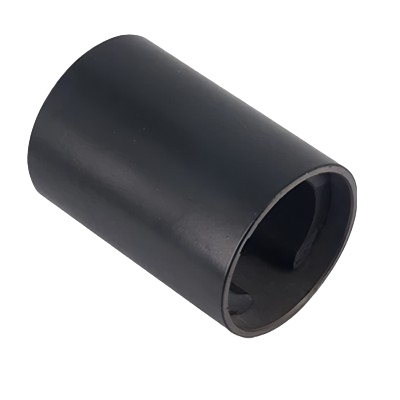

High-strength magnets Generate a powerful magnetic field, thereby increasing motor torque. |
|

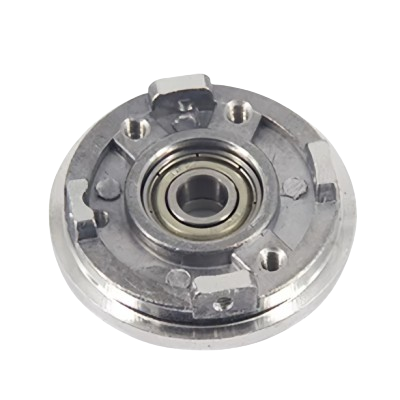

| Precision Ball Bearings Ball bearings featuring high axial load capacity, low friction, and excellent oil-sealing performance. |

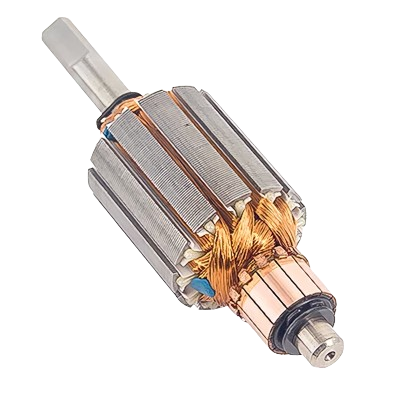

Pure copper-wound motor delivering powerful performance.
Technology makes life better.

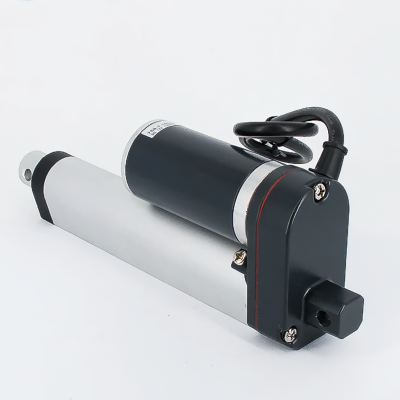

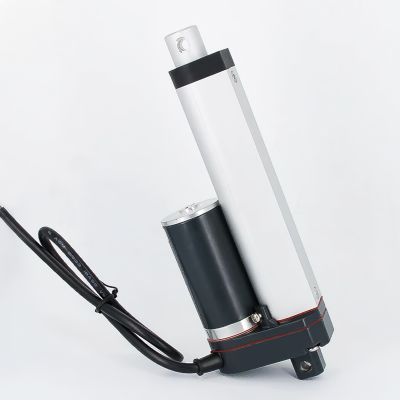

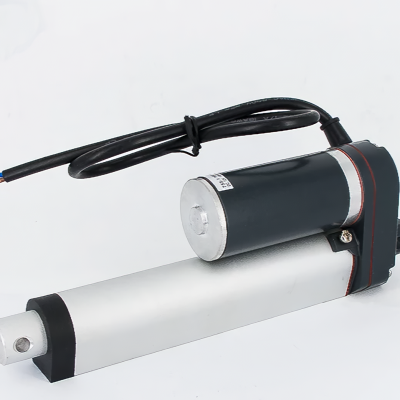

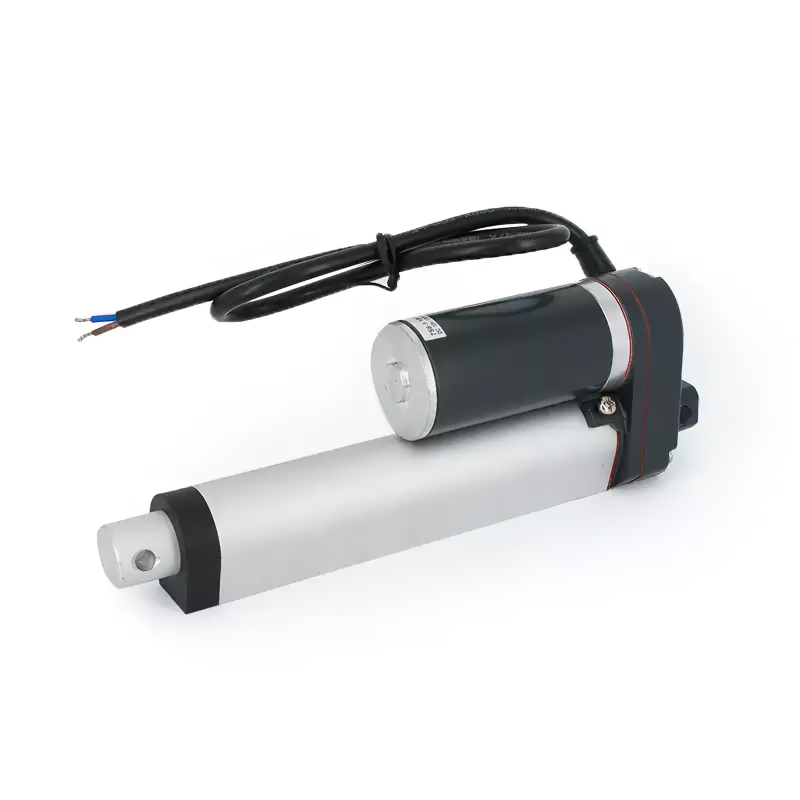

Product Showcase
Zhengke Motor: Turning the World
Great products win through attention to detail.

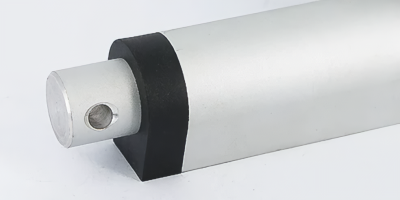

| Output shaft |

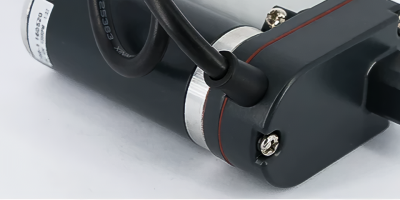

| wiring |

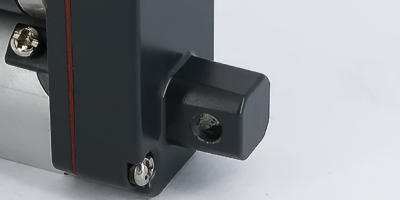

| Screw hole |

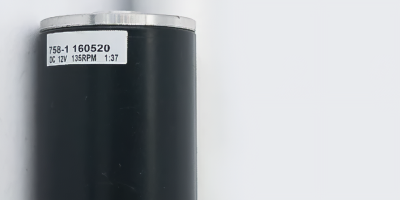

| Product Label |
Product parameters
Data speaks for itself.
ZGB758
Housing material | Metal |
|
Output bearing type | Ball bearing |
Radial force | ≤3kgf |
Axial force | s5 kgf |
Maximum axial press-in force | ≤30 kgf |
Radial clearance | ≤0.1 mm |
Axial clearance | ≤0.5 mm |

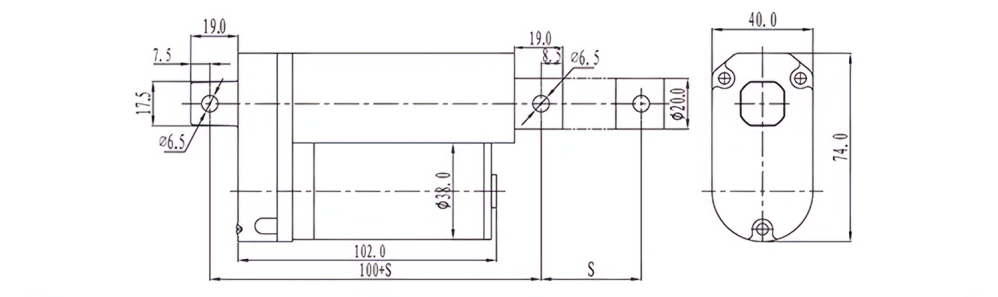

Motor Outline Drawing
Motor and Electrical Performance
Input voltage | 12V, 24V, 36V, 48V DC |
Maximum load | 750N | 500N | 250N | 125N |
Maximum speed | 7mm/s | 10mm/s | 23mm/s | 42mm/s |
Standard Itinerary | （50~900mm）（Option） |
Frequency of use | 10%，MAX.2 min on/18 min off |
Ambient temperature | 0℃ ~40°℃ |
◆We can manufacture a wide range of non-standard products to order; please contact us if you have any requirements.
Operating Tolerances
Observe the specified voltage and current ranges and operate the motor under the conditions defined in this standard; otherwise, motor performance and service life will be compromised.
Handling the Motor
Handle with care; whenever possible, hold the motor by its housing.
Motor Wiring
Brushed motor: Connect the red lead to the positive terminal and the black lead to the negative terminal; reversing the connections will reverse the motor's direction of rotation.
Brushless motor: Please wire strictly according to the wiring diagram; reversing the power supply connections will damage the motor.
Overload
Operate the motor within the load limits specified by the company whenever possible. Strictly avoid stalling the motor or operating it in a near-stall condition for extended periods; doing so will cause the motor to burn out.
Motor Storage
Storage temperature: 0°C–40°C; storage humidity: 15%–90% RH; avoid environments with high temperatures, high humidity, or corrosive gases.
Motor operating temperature: 0°C–50°C.
Product Name | Specification |
758 Putter | 12V, 50mm stroke, 42mm/s speed, 125N force |
758 Putter | 12V, 100mm stroke, 10mm/s speed, 500N force |
758 Putter | 12V, 100mm stroke, 23mm/s speed, 250N force |
758 Putter | 12V, 100mm stroke, 42mm/s speed, 125N force |
758 Putter | 12V, 200mm stroke, 10mm/s speed, 500N force |
758 Putter | 12V, 200mm stroke, 42mm/s speed, 125N force |
758 Putter | 12V, 300mm stroke, 10mm/s speed, 500N force |
758 Putter | 12V, 400mm stroke, 7mm/s speed, 750N force |
758 Putter | 24V, 30mm stroke, 42mm/s speed, 125N force |
758 Putter | 24V, 30mm stroke, 7mm/s speed, 750N force |
758 Putter | 24V, 50mm stroke, 7mm/s speed, 750N force |
758 Putter | 24V, 50mm stroke, 10mm/s speed, 500N force |
758 Putter | 24V, 60mm stroke, 10mm/s speed, 500N force |
758 Putter | 12V, 600mm stroke, 42mm/s speed, 125N force |
758 Putter | 24V, 100mm stroke, 500N |
758 Putter | 24V, 100mm stroke, 23mm/s speed, 250N force |
758 Putter | 24V, 150mm stroke, 23mm/s speed, 250N force |
758 Putter | 24V200 stroke 10mm/S500N |
758 Putter | 24V, 200mm stroke, 23mm/s speed, 250N force |
758 Putter | 24V, 400mm stroke, 10mm/s speed, 500N force |
Model and Description
High-Power DC Geared Motor Models and Specifications
Unit Conversion Table
N.m | mN.m | gf.cm | kgf.cm |
1 | 1000 | 10200 | 10.2 |
0.001 | 2 | 10.2 | 0.0102 |
9.8×10-5 | 9.8×10-2 | 1 | 10×10-3 |
9.8×10-2 | 98 | 1000 | 1 |
