For a putter that is easy to stroke, look at its performance.
More room to stretch out—supporting a worry-free state of mind.
Overcurrent protection | Short-circuit protection | Overload protection |
Over-voltage protection | Over-discharge protection | Over-vibration protection |
Product Analysis
Aluminum Alloy Electric Linear Actuator
Energy-efficient, eco-friendly, and durable

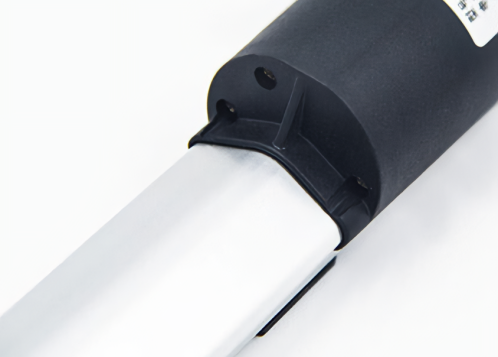

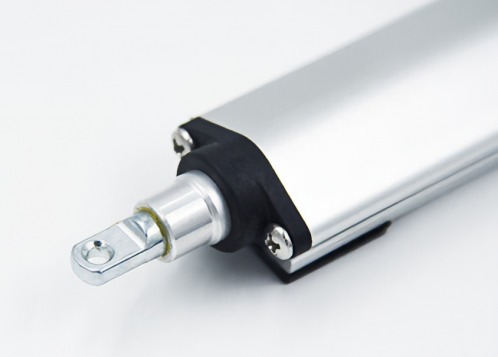

| 01 Aluminum alloy material Aluminum alloy outer tube, multi-stage processing, compact and well-designed structure. 02 Park at will Can be stopped at any position Built-in mechanical lock for safety and peace of mind 03 Metal base Imported zinc alloy base and powder metallurgy gears, with、doubled strength and toughness. 04 Adapter Adapters can be customized according to customer requirements. 05 Low resistance, greater energy efficiency. The wire uses oxygen-free pure copper as the conductor; it features low resistance and exceptional durability, giving you peace of mind during use. 06 Imported motor Imported motors have a longer service life than standard motors. |
Three reasons to choose us
We exercise rigorous control over every detail to ensure quality that inspires confidence.
| 1.Crafted from premium materials Made of high-quality aluminum alloy Precision-engineered using multiple processes; offers high strength and resistance to deformation |
2.Low Noise Features a high-quality motor that ensures low noise, high stability, and eco-friendliness. A key supplier to Haier and Fotile. |
|
| 3.Zinc Alloy Gearbox Made from imported zinc alloy raw materials, featuring a one-piece molded design for superior hardness, enhanced quality, and a longer service life. |

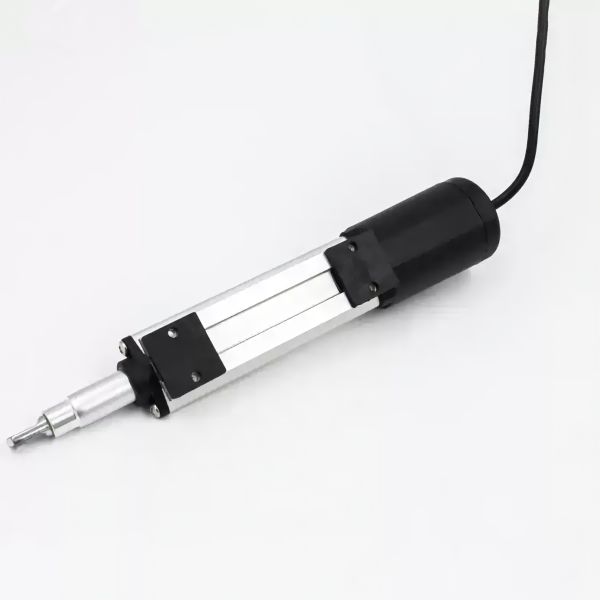

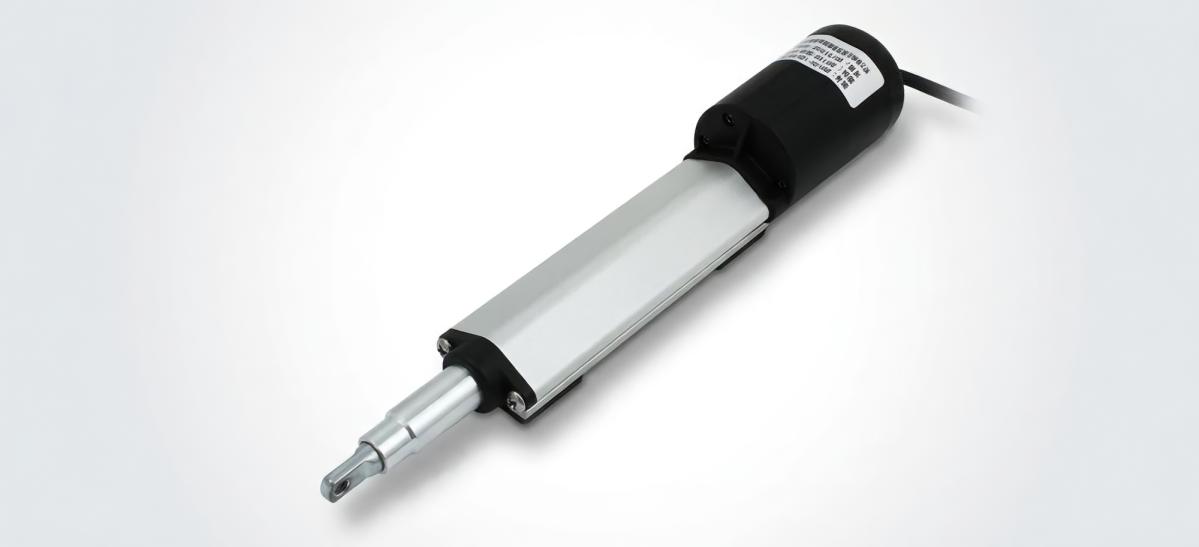

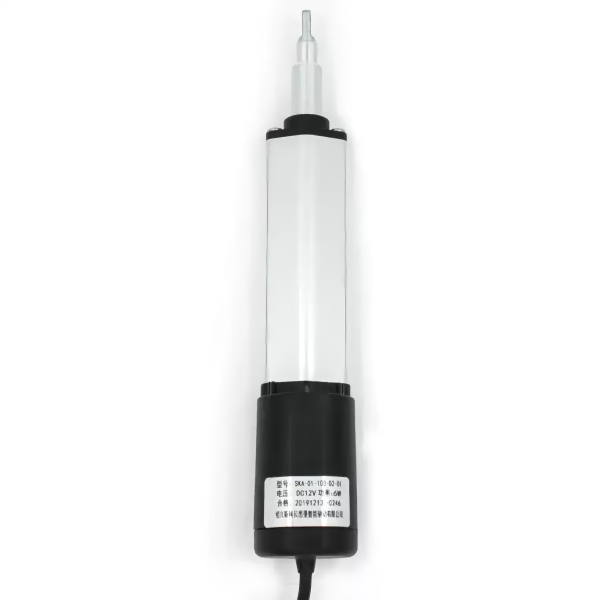

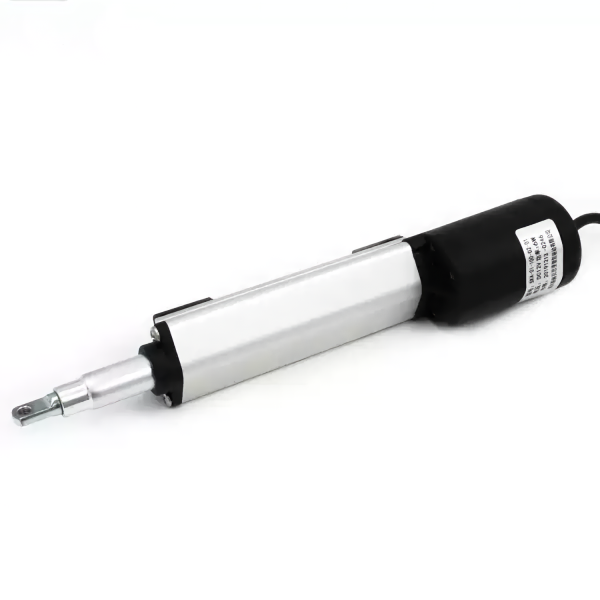

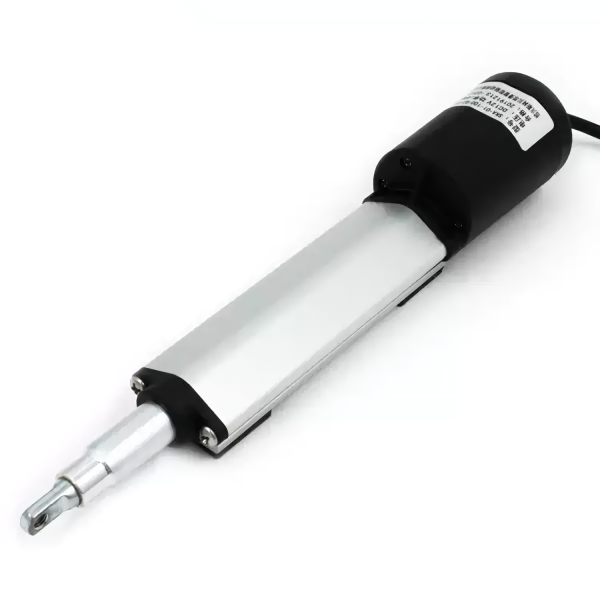

Actual Product Photos
Multiple stroke and thrust/speed options available.
|
|
|
|
37 Putter
| Housing material | plastic |
|
Output bearing type | Ball bearing | |
Radial force | ≤1kgf | |
Axial force | ≤0.7 kgf | |
Maximum axial press-in force | ≤8 kgf | |
Radial clearance | ≤0.1 mm | |
Axial clearance | ≤0.5 mm |

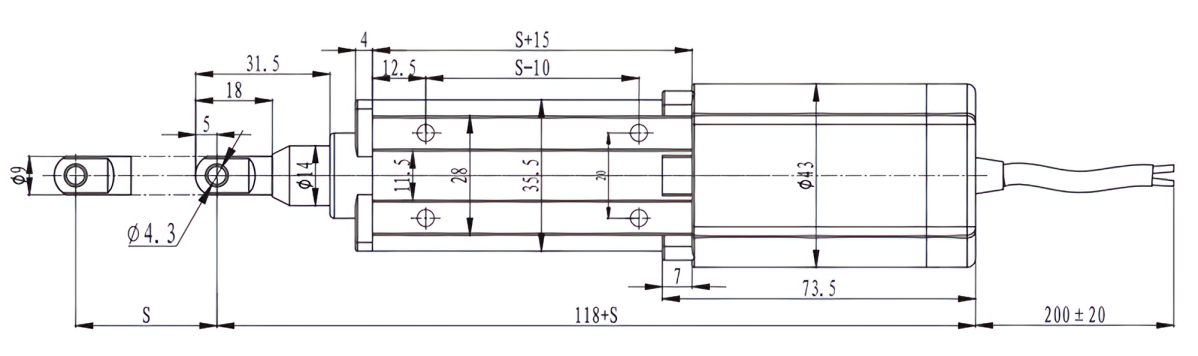

Gearbox Outline Drawing
Technical Specifications
Input voltage | 6V、12V、24V、36V | |||||
Motor speed | 3500 | 5000 | 7000 | |||
Maximum load | 17N | 23N | 42N | 57N | 32N | 24N |
Maximum speed | 25mm/s | 18mm/s | 35mm/s | 26mm/s | 50mm/s | 37mm/s |
Standard Itinerary | (30～300mm)(Option) | |||||
Frequency of use | 10%,MAX.2 min on/18 min off | |||||
Ambient temperature | 0℃～40℃ | |||||
