Product Description

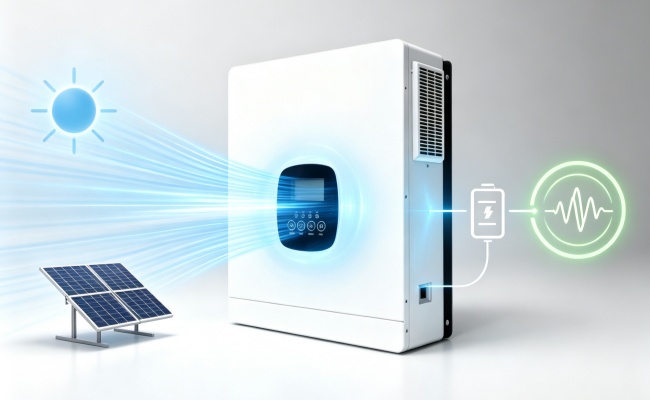

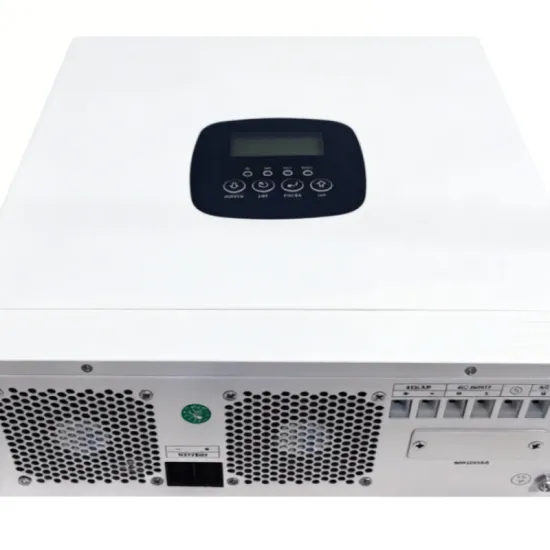

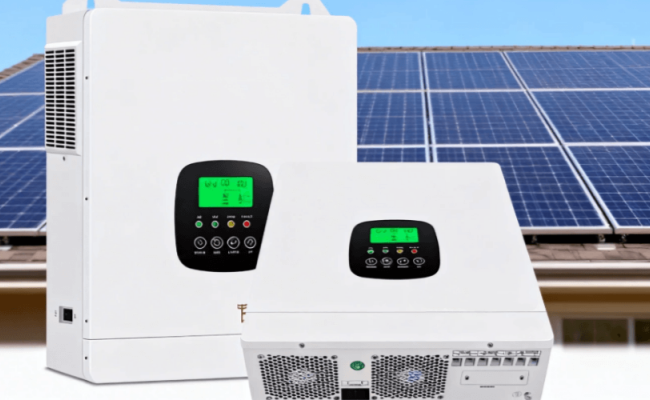

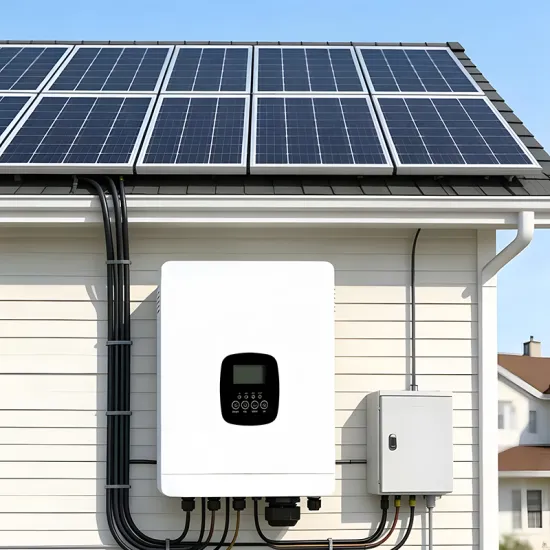

This hybrid solar inverter combines an MPPT solar charge controller, a pure sine wave inverter, and an AC battery charger into a single compact unit. Designed for grid-tied, off-grid, and hybrid power setups, it efficiently manages energy flow between solar panels, batteries, and the power grid or generator. It supports DC 12V, 24V, and 48V battery systems with power capacities ranging from 2KW to 12KW, delivering a stable 230V AC output for household appliances. The unit also features built-in multi-layer protections, including overload, short-circuit, over-temperature, low-voltage, and anti-islanding safeguards.
Product Features
3-in-1 Smart Integrated Design
Combines an MPPT solar controller, pure sine wave inverter, and AC battery charger in one compact unit—eliminating complex wiring and saving valuable installation space.
Uninterrupted Power for Any Scenario

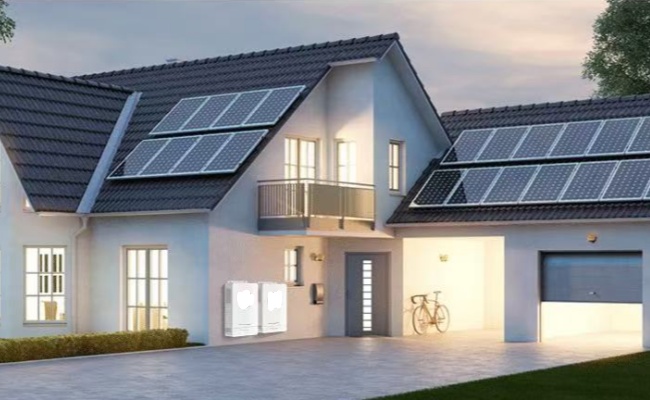

Seamlessly switches between grid-tied, off-grid, and hybrid modes. Keeps your essential home appliances running 24/7, even during unexpected power outages.
High Efficiency & Broad Compatibility
Built-in advanced MPPT algorithm maximizes solar energy harvesting, while flexible voltage support (DC 12V / 24V / 48V) allows easy connection and future system expansion.
Application Cases
Perfect for off-grid homes, boats and remote places with no grid electricity. Pair it with wind turbines and batteries, and it can power lights, fridges, communication gear and more.
Technical Parameter
Model | 1300H | 2300H | 4300H | 6300H | 8300H | 10300H | 12300H |
Rated Power | 1300W | 2300W | 4300W | 6300W | 8300W | 10300W | 12300W |
Output Waveform | Pure Sine Wave | ||||||
Output Voltage | 230V | 230V | 230V | 230V | 230V | 230V | 230V |
Battery Voltage | DC 12V | DC 24V | DC 24V | DC 48V | DC 48V | DC 48V | DC 48V |
AC Input Voltage | AC 230V | ||||||
AC Charging Current | 50A | 50A | 100A | 80A | 100A | 120A | 150A |
PV Input Voltage | 30-300V | 40-500V | 40-450V | 80-450V | 80-450V | 80-450V | 80-450V |
PV Input Power | 2000W | 3000W | 5000W | 7000W | 4500W*2 | 6000W*2 | 6000W*2 |
PV Charging Current | 80A | 80A | 150A | 120A | 150A | 180A | 200A |
Dimensions(mm) | 285*250*91 | 375*297*102 | 390*320*112 | 515*365*117 | 535*462*117 | 630*540*130 | |
Weight(kg) | 5 | 5.5 | 8 | 9.5 | 15 | 17 | 25 |
Noise | ≤55dB | ||||||
Operating Temperature | -10℃~50℃ | ||||||
Key Advantages
1.All-in-one design, good value for money
2.Simple setup with pre-wired connections
3.Reliable operation even in off-grid situations
4.Easy to expand the system later
5.Works well for beginners and mid-level users
6.Multiple safety protections for stable use
Battery low voltage alarm & low voltage cut-off protection
Anti-islanding protection & overload protection
Output short-circuit protection & over-temperature protection
