Powerful Motor – Unstoppable Performance
All-aluminum housing, pure copper motor
| Precise speed | High power | Rapid heat dissipation | Long lifespan
| Energy-efficient | Quiet | Stable | Durable |
We are everywhere in your daily life
Zhengke Motor — Turning the World
|
|
|

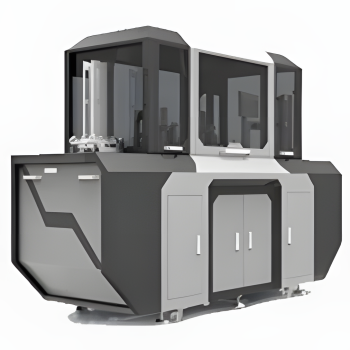

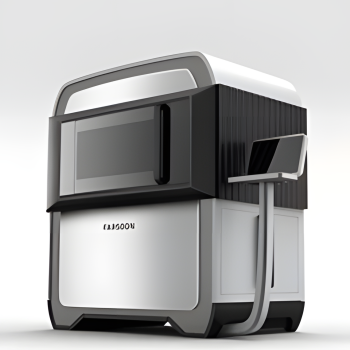

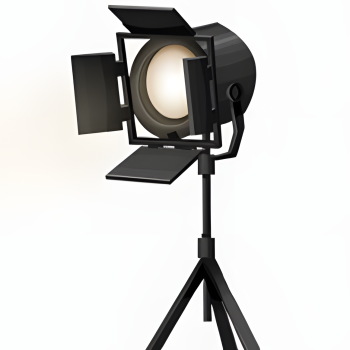

| Automation Equipment | 3D Printers | Stage Lighting |
*Automated Home Living
Fourteen years of dedication to quality manufacturing by Zhengke
Gear motors are a source of pride for Zhengke

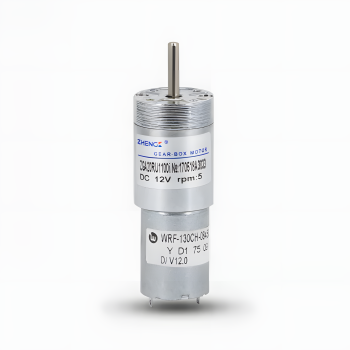

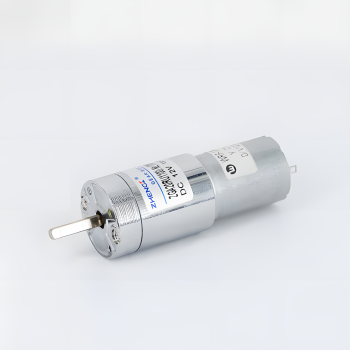

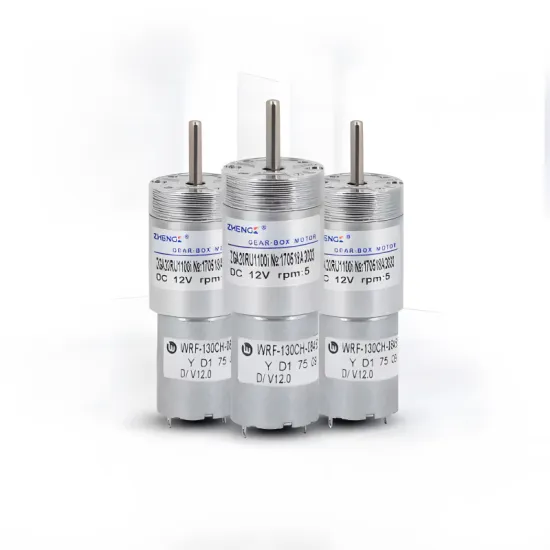

Product Showcase
Zhengke Motor – Turning the World
|
|
|
Powerful performance from a pure copper-wound motor
Technology makes life better
Premium Quiet-Operation Bearing Lubricant
Formulated for quiet operation, this lubricant ensures the motor shaft runs silently over extended periods,
effectively reduces bearing vibration, and provides rust and corrosion protection.
Great products win through attention to detail
Exquisite details embody Zhengke's unwavering dedication
|
|

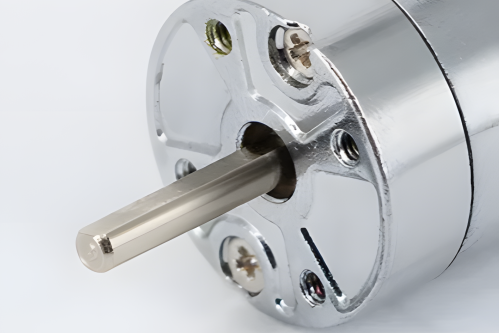

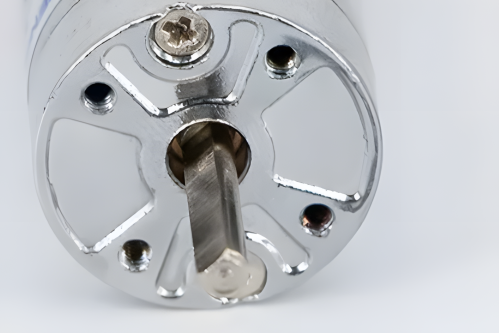

| Output shaft | Screw hole |
|
|

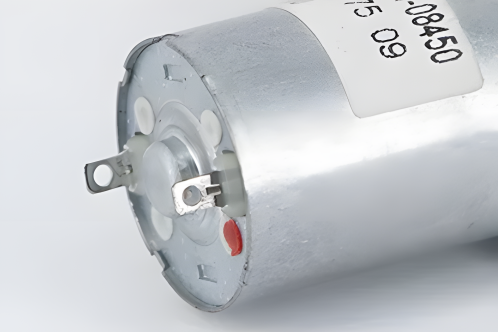

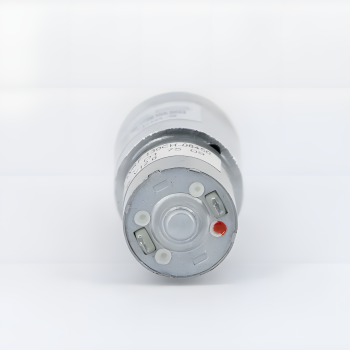

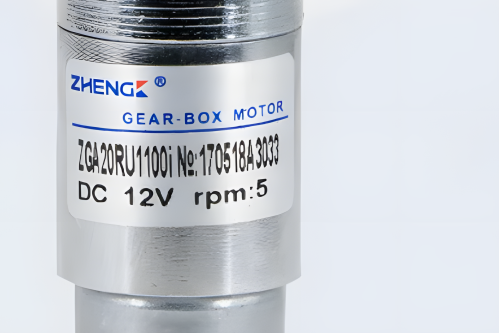

| Wiring | Product label |
Product Specifications
The Data Speaks for Itself
| Housing material | Metal |
|
| Output bearing type | Oil-impregnated bearing | |
| Radial force | ≤0.4 kgf | |
| Axial force | ≤0.2 kgf | |
| Maximum permissible press-in force on the spindle | ≤2 kgf | |
| Radial clearance | ≤0.06 mm | |
| Axial clearance | ≤0.3 mm |

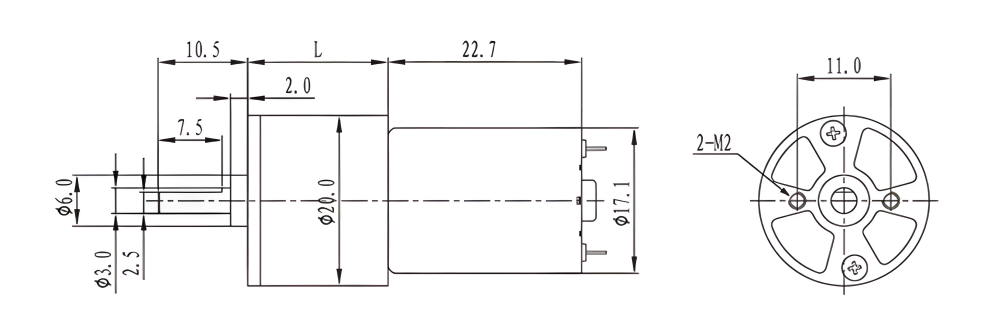

Motor Outline Drawing
Gear Motor (Rated Torque/Speed Chart)
Model | Reduction ratio | 1/5.8 | 1/13.8 | 1/19.1 | 1/33 | 1/40 | 1/79.6 | 1/84 | 1/175 | 1/191 | 1/365 | 1/458.6 | 1/764 | 1/1100 | 1/2641 |
ZYTD-RF130 | No-load speed (r/min) | 925 | 390 | 280 | 165 | 135 | 67 | 64 | 31 | 28 | 15 | 12 | 7 | 5 | 2 |
Load speed (r/min) | 670 | 280 | 200 | 120 | 95 | 49 | 46 | 22 | 20 | 10.5 | 8.5 | 5 | 4 | 2 | |
Load torque (gf·cm) | 20 | 50 | 60 | 105 | 120 | 235 | 220 | 420 | 500 | 780 | 1050 | 1500 | 2000 | 2000 | |
Rotation Direction | Connect positive power terminal to the "+" terminal | CW | CCW | CW | CCW | CW | CCW | CW | CW | CCW | CCW | CW | CCW | ||
Gearbox Specifications
Reduction Ratio | L | Number of segments | Rated torque | |
mm | mN·m | gf·cm | ||
1/5.8 | 16.5 | 2 | 39 | 400 |
1/13.8 | 16.5 | 3 | 58 | 600 |
1/19.1–1/33 | 16.5 | 4 | 78 | 800 |
1/40, 1/79.6 | 16.5 | 5 | 98 | 1000 |
1/84, 1/191 | 18.1 | 6 | 147 | 1500 |
1/175, 1/458.6 | 20 | 7 | 147 | 1500 |
1/365, 1/1100 | 22 | 8 | 196 | 2000 |
1/764, 1/2641 | 24 | 9 | 196 | 2000 |
Operating Limits
Observe the specified voltage and current ranges; operate the motor within the limits defined in this standard to avoid compromising performance or service life.
Handling
Handle with care; whenever possible, hold the motor by its housing.
Wiring
Brushed motors: Connect the red lead to the positive terminal and the black lead to the negative terminal; reversing the connections will reverse the direction of rotation.
Brushless motors: Follow the wiring diagram strictly; reversing the power supply connections will damage the motor.
Overload
Operate within the load range specified by the company; do not allow the motor to stall or run in a near-stall condition for extended periods, as this will cause the motor to burn out.
Storage
Storage temperature: 0°C–40°C; storage humidity: 15%–90% RH; avoid environments with high temperatures, high humidity, or corrosive gases.
Operating temperature: 0°C–50°C.
WIRING DIAGRAM
Zhengke Motor: Focused on Quality

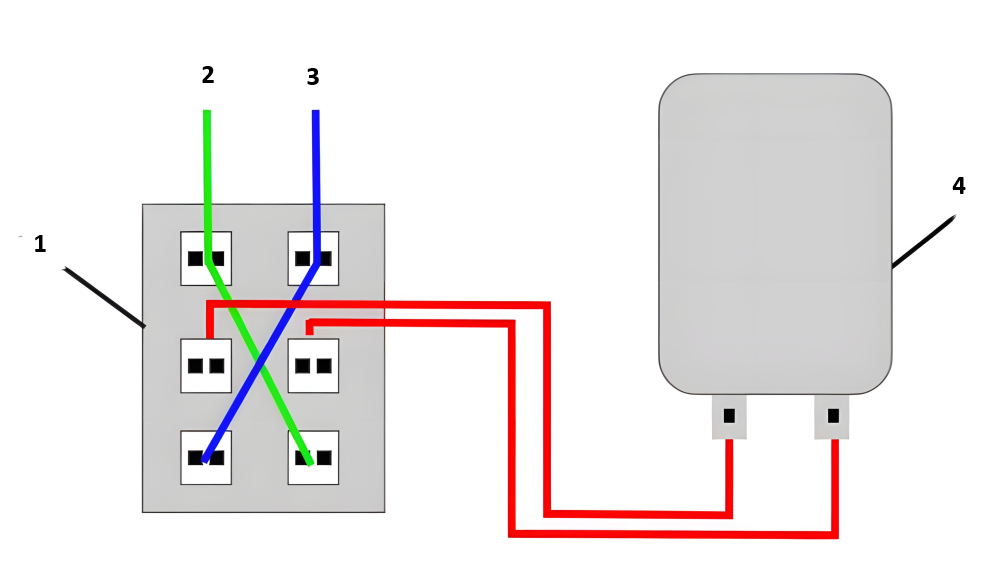

Forward/Reverse Wiring Diagram
| 1. Forward/Reverse switch | 2. Connect to power supply | 3. (Non-polarized) | 4. Motor |
Note: This wiring method is suitable only for brushed motors; it is not suitable for brushless motors.

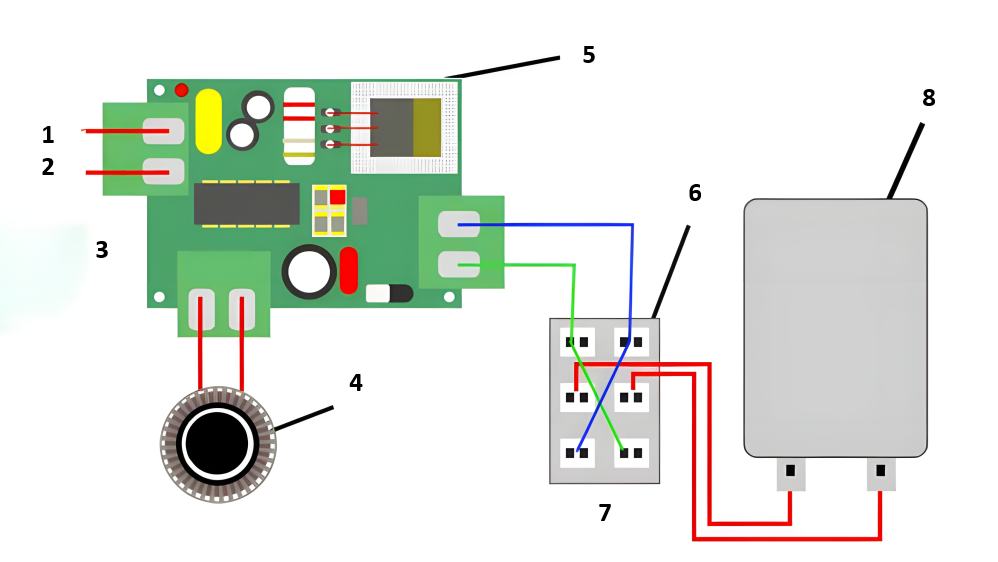

Wiring Diagram for Standard Brushed Motor Speed Controller and Forward/Reverse Switch
**Note: The power supply voltage must match the motor's rated voltage.
| 1. Positive | 2. Negative | 3. Do not reverse the positive and negative power supply connection | 4. Speed Control Knob |
| 5. Speed Controller | 6. Forward/Reverse Switch | 7. Connect to Motor (polarity-independent) | 8. 8.Motor |

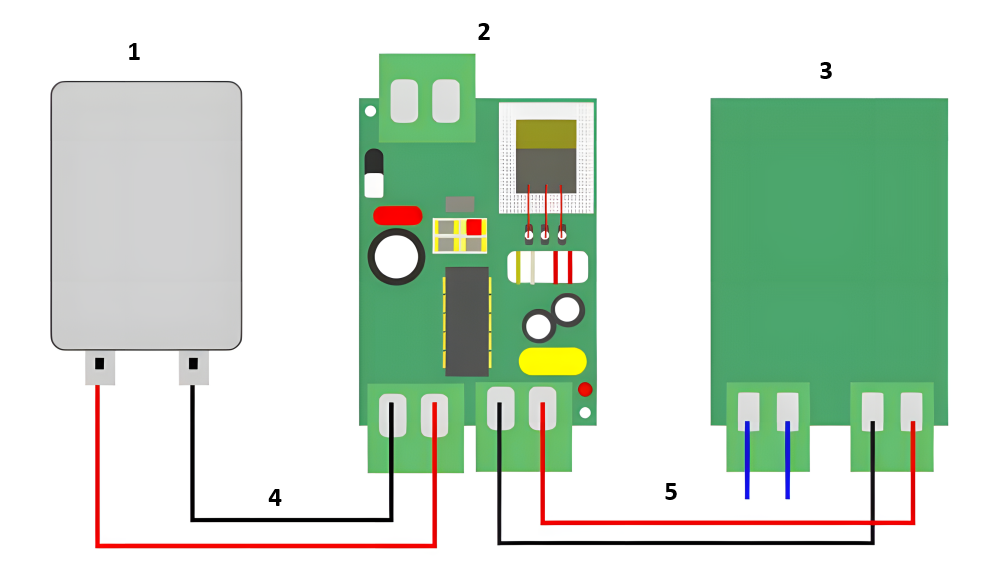

Wiring diagram for stepless speed control
| 1. Speed controller | 2. Motor | 3. Switching power supply |
| 4. Positive and negative terminals can be connected either way | 5. Power supply polarity must not be reversed |
Scope of Application
Zhengke Motor: Committed to Quality
|
|
|
|
| Automation Equipment | 3D Printers | Stage Lighting | Smart Home Living |
