Product Description
This product adopts ultra-thin design, saving space. It uses leaf spring to connect with the client, which is more firm. This product is widely used in automatic control, automatic measurement, remote control, computer technology, and angle and ordinate measurement on CNC machine tools, etc. It is especially suitable for elevator industry. It adopts all imported photoelectric devices with high reliability, long life, strong anti-interference ability, and wide operating temperature range.
Product parameters
Output voltage(V)Mechanical parameters
| Maximum speed(r/min) | Starting torque (25℃)(NM) | Maximum axial load (N) | Moment of Inertia(kgm²) | Weight(kg) | |
|---|---|---|---|---|---|
| Radial | Axial | ||||
| 5000 | 5*10-2 | 40 | 20 | 1 *10-5 | ≤0.585 |
Electrical parameters
| Output form | Power supply voltage DC(V) | Current consumption (mA) | Output voltage(V) | Rise time (ns) | Fall time (ns) | Response frequency (kHz) | |
|---|---|---|---|---|---|---|---|
| VH | VL | ||||||
| E(voltage output) | 5±0.25 | ≤80 | >3.5 | ≤0.7 | ≤500 | ≤100 | 0-300 |
| 8-26 | ≤120 | >VCC-2.5 | ≤0.7 | ≤500 | ≤100 | 0-300 | |
| 10-30 | |||||||
| 12 | |||||||
| F(Complementary output) | 5±0.25 | ≤80 | >3.5 | ≤0.7 | ≤500 | ≤100 | 0-300 |
| 8-26 | ≤120 | >VCC-2.5 | ≤0.7 | ≤500 | ≤100 | 0-300 | |
| 10-30 | |||||||
| 12 | |||||||
| C (collector open circuit output) | 5±0.25 | ≤60 | >VCC-2.5 | ≤0.7 | ≤500 | ≤100 | 0-300 |
| 8-26 | |||||||
| 10-30 | |||||||
| 12 | |||||||
| L (Long line drive output) | 5±0.25 | ≤100 | >3.5 | ≤0.7 | ≤200 | ≤200 | 0-300 |
| A (wide voltage long line drive output) | 8-26 | ≤60 | >VCC-2.5 | ≤0.7 | ≤500 | ≤100 | 0-300 |
Wiring Instructions
| Cable color | Red | Black | Green | Brown | White | Grey | Yellow | Orange | Shield |
|---|---|---|---|---|---|---|---|---|---|
| E(voltage output) | Vcc | 0V | A | B | Z | G | |||
| F(Complementary output) | Vcc | 0V | A | B | Z | G | |||
| C (open circuit output) | Vcc | 0V | A | B | Z | G | |||
| L, A (drive output) | Vcc | 0V | A | A/ | B | B/ | Z | Z/ | G |

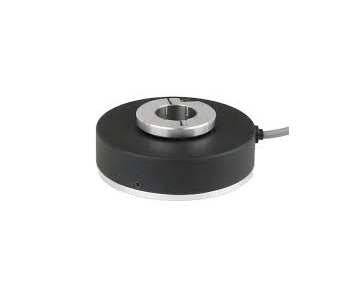

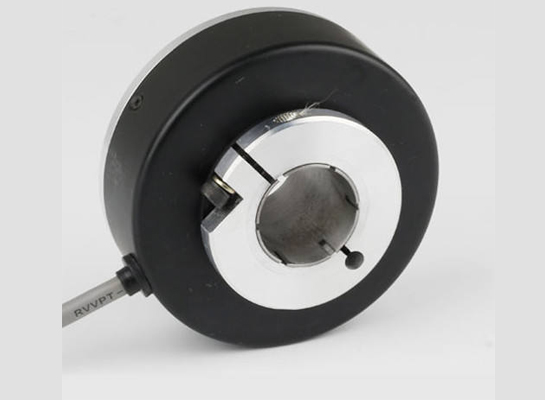

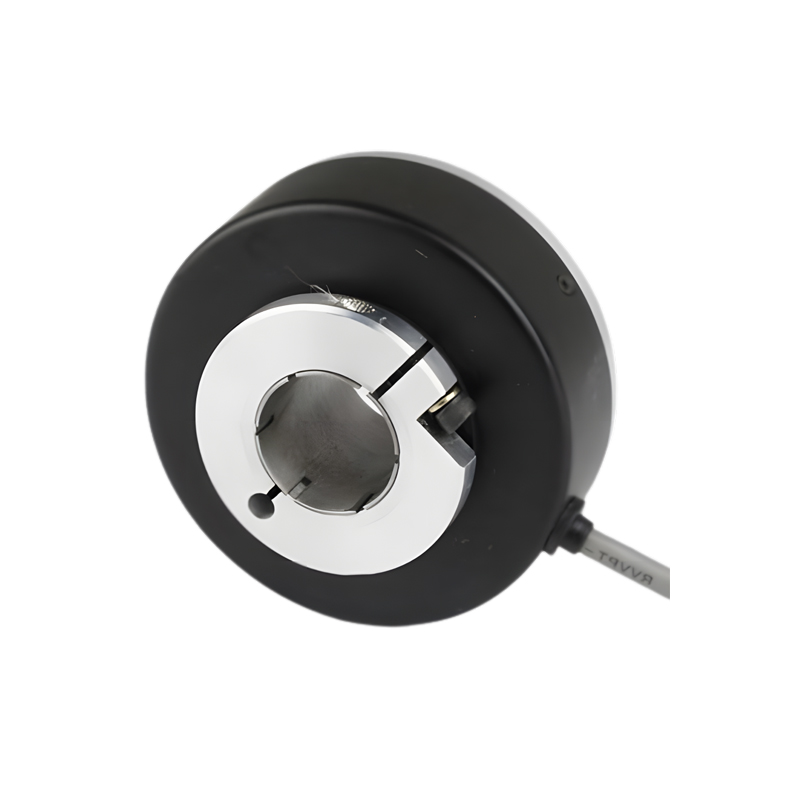

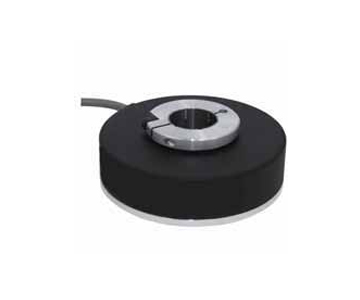

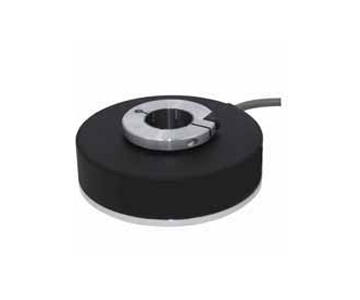

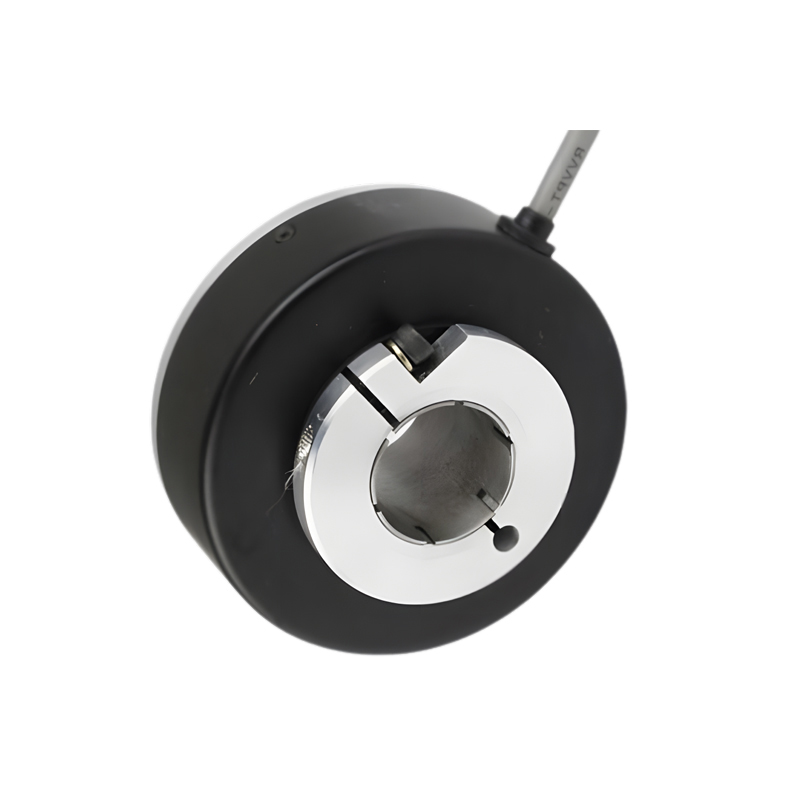

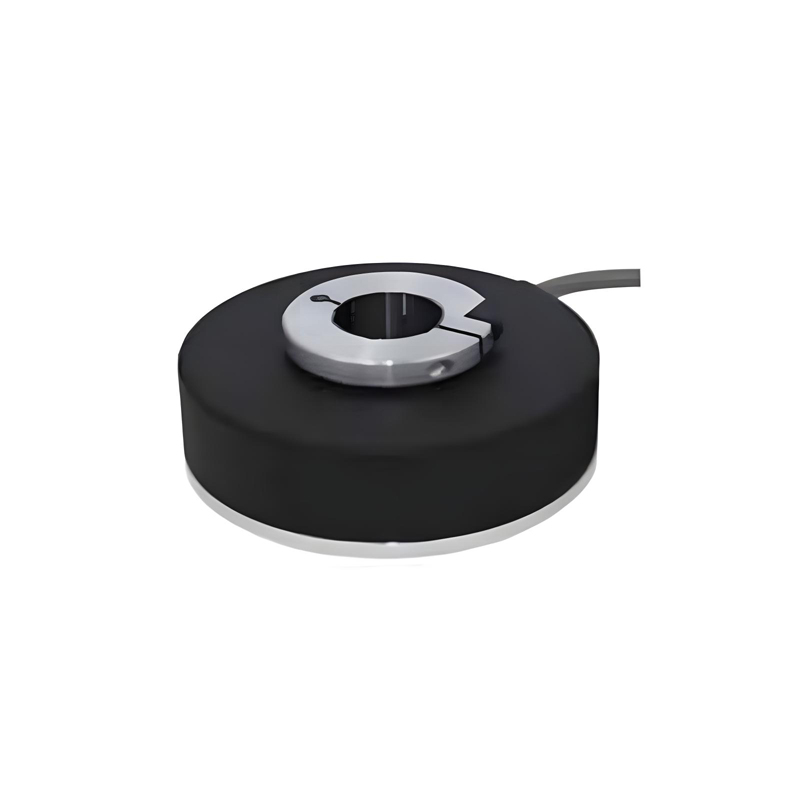

Product Display
- Strong shaft load capacity: The solid shaft design enables it to have a strong shaft load capacity, capable of bearing large axial and radial loads, ensuring normal operation under high load conditions, and meeting the needs of some equipment with high requirements for shaft load capacity.
- Long service life: The use of high-quality materials and advanced manufacturing processes makes the product have a long service life, reducing maintenance costs and downtime caused by frequent replacement of parts.
- Fast response speed: It can respond quickly to the rotation change of the shaft and output the corresponding signal in time, so that the control system can obtain the state information of the shaft in real time, thereby achieving fast and accurate control. This is of great significance for some equipment with high requirements for dynamic performance, such as CNC machine tools, robots, etc.
- Wide range of applications: It can be applied to various AC and DC servo motors, and can be used with different types of motors to provide accurate feedback signals for the control and drive of the motor. It is widely used in automated production lines, CNC machine tools, robots, elevators and other fields.

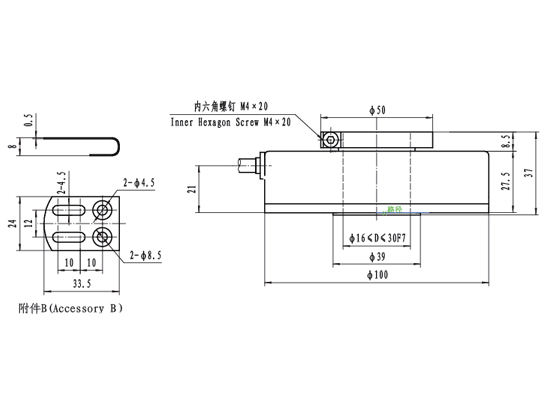

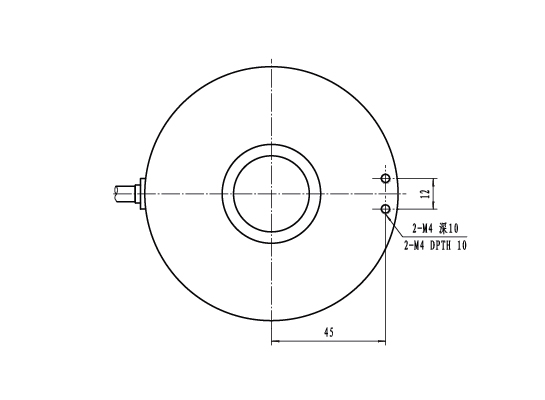

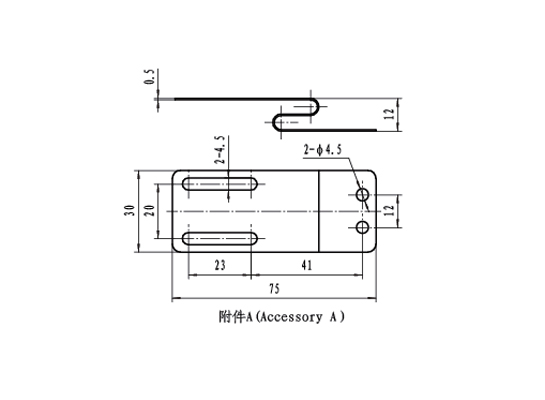

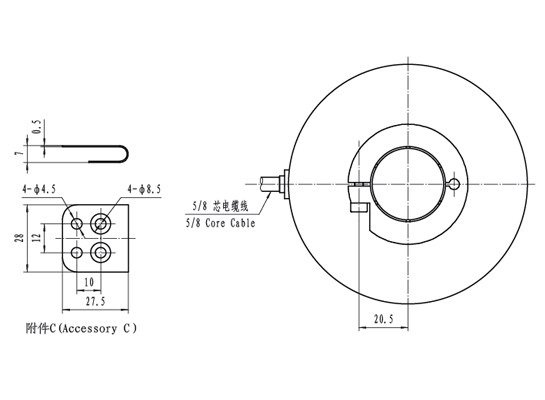

Size & Interface
Application Cases
Application scenarios cover CNC machine tools, textile machinery, medical equipment, servo turntables, metallurgical machinery, textile machinery, coal machinery, robots and other automation industries.
