Product Description

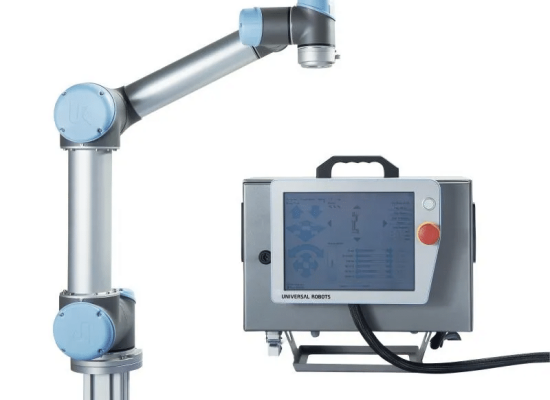

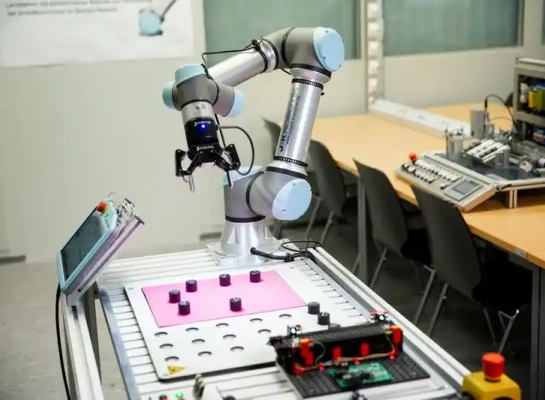

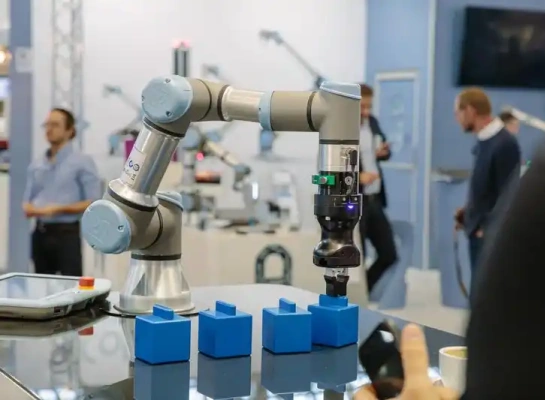

UR3e Collaborative Robot

The UR3e collaborative robot is an ultra-lightweight collaborative industrial robot.



Weighing only 11 kg with a 3 kg payload and a 500 mm working radius, it is ideal for light assembly and automated workstations.

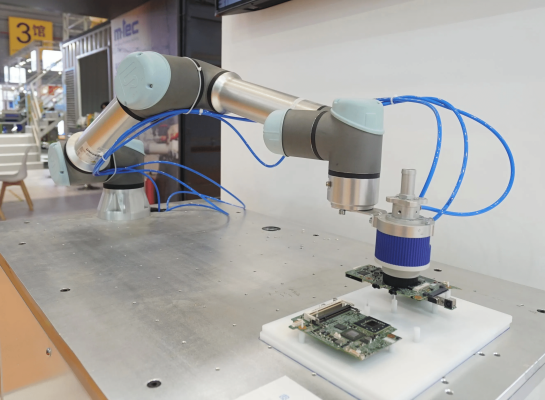

The UR3e easily handles high-precision and light-assembly tasks, making it a top choice for industries that demand stable product quality, including medical devices, PCBs and electronic components.

UR3e: Four Key Advantages

Repeatability of ±0.03 mm with 360° joint rotation

 - With a 3 kg payload, 500 mm reach and 6 rotating joints, all wrist joints rotate 360°, and the end joint rotates without limit.



Compact 128 mm base saves space

 - The 128 mm base footprint allows tabletop or ceiling mounting, ideal for small automated cells.



17 safety functions

- Including elbow monitoring, the safety system is approved and certified by TUV NORD.

Among thousands of UR robots worldwide, 80% operate without safety fencing (after risk assessment) and without an operator nearby.

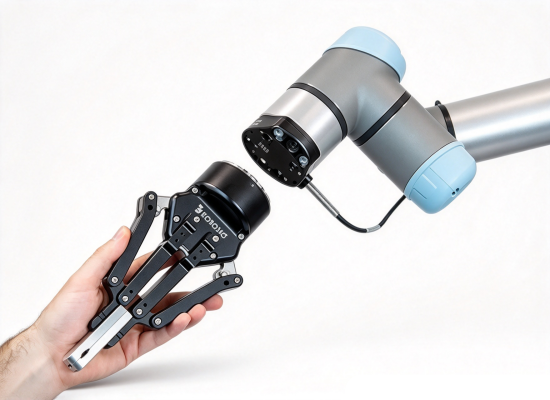

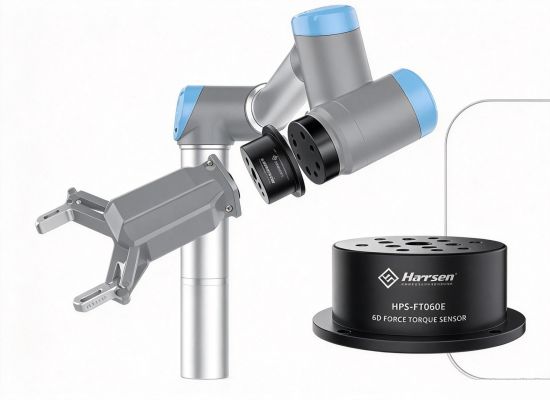

Torque sensing in the flange with 3.5 N precision

- The key difference between the e-series and the classic UR series:

torque sensors integrated in the tool flange enable sensitive force detection and fast contact detection, with torque accuracy up to 3.5 N.

Product Display

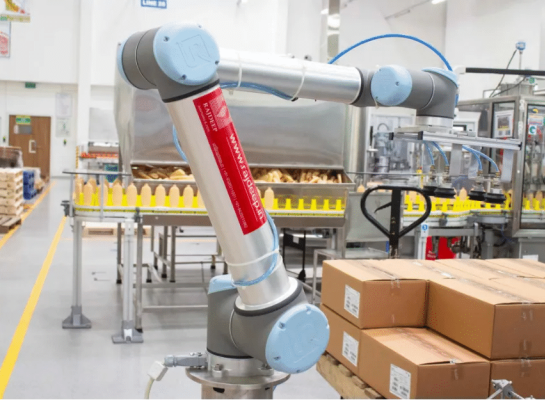

Palletizing

 - A built-in palletizing wizard in PolyScope software enables easy deployment, even meeting specific customer needs for pallet patterns and labeling.

Dispensing

- The robot applies consistent, precisely metered amounts of glue, improving dispensing efficiency.

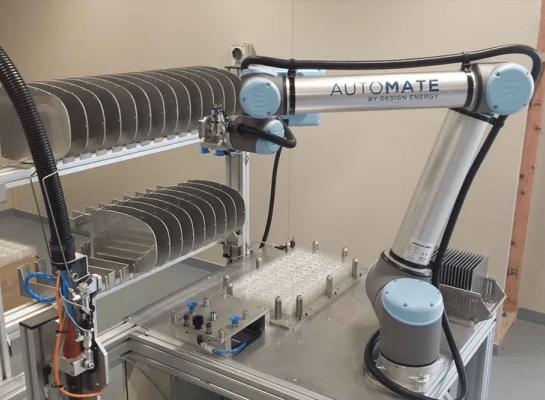

Machine tending

 - Suitable for injection molding and other plastic and polymer production processes, significantly improving machine tool efficiency.

Quality inspection

- Enables precise inspection, testing and measurement, improving and maintaining stable product quality.

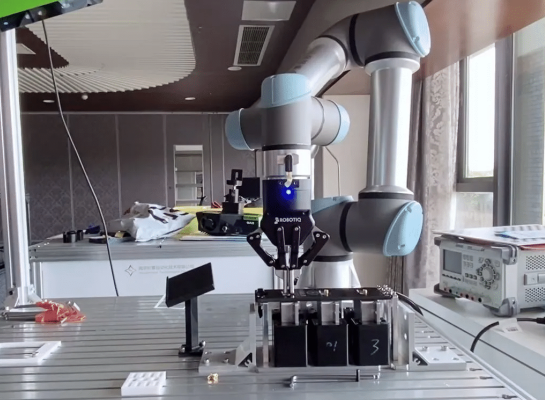

Assembly

- Repeats the same actions with identical precision and speed, improving product quality and consistency.

Material handling

- Integrates various grippers, vision and machine learning systems to pick up various objects in unstructured environments for automated material handling.

Product parameters

Product Parameters (1) Robot Arm

Parameter	Value / Description
Specification
Payload	3 kg (6.6 lbs)
Reach	500 mm (19.7 in)
Degrees of freedom	6 rotating joints
Programming	12-inch touchscreen with   PolyScope GUI
Pose repeatability	±0.03 mm (ISO 9283)
Ambient temperature range	0-50 °C (reduced   speed/performance above 35 °C)
Power consumption	Typical 150 W, max 300 W
Collaborative operation	17 sophisticated adjustable   safety functions; TÜV NORD certified to EN ISO 13849-1 PL d Cat. 3 and EN ISO   10218-1
Movement
Base	±360°; max ±180°/s
Shoulder	±360°; max ±180°/s
Elbow	±160°; max ±180°/s
Wrist 1 & 2	±360°; max ±360°/s
Wrist 3 (tool flange)	Unlimited; max ±360°/s
Typical tool speed	1 m/s
Features
IP rating	IP54
ISO 14644-1 cleanroom class	5
Noise	Below 60 dB(A)
Robot mounting	Any direction
Tool I/O ports	2 digital inputs, 2 digital   outputs, 2 analog inputs, 0 analog outputs
Tool I/O power	12/24 V, 600 mA
Physical
Footprint	Ø128 mm
Materials	Aluminium, PC/ASA plastic
Tool connector type	M8
Cable length (arm)	6 m
Weight (with cable)	11.2 kg

Product parameters (2) Control box and teaching pendant

Parameter	Value / Description
Control Box - Features
IP rating	IP20
ISO cleanroom class	6
Noise	Below 50 dB(A)
I/O ports	16 digital inputs, 16   digital outputs, 2 analog inputs, 2 analog outputs
I/O power	24 V, 2 A
Communication	TCP/IP 100 Mbit; Modbus TCP;   Profinet; EtherNet/IP
Power supply	100-240 VAC, 50-60 Hz
Ambient temperature range	0-50 °C
Control Box - Physical
Dimensions (W × H × D)	475 × 423 × 268 mm
Weight	15 kg
Material	Steel
Teach Pendant - Features
IP rating	IP20
Teach Pendant - Physical
Material	Aluminium, PP plastic
Weight	1.5 kg
Cable length	4.5 m

Packing List

Item	Qty
Robot arm	1
Control box with teach   pendant	1
Mounting bracket	2
Key for control box	1
Cable	1
Power cable	1
Product manual	1
