Product Description

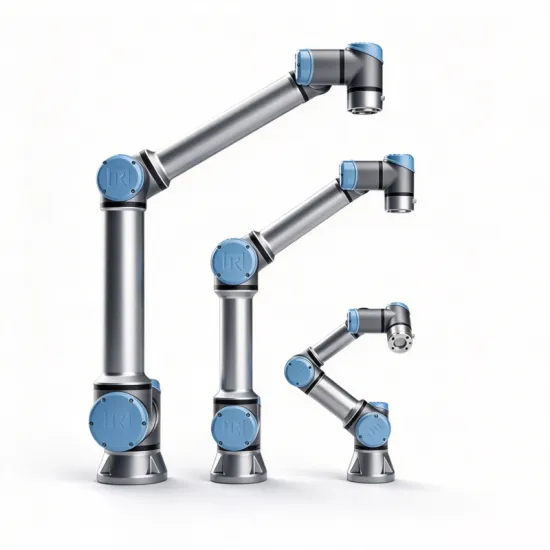

UR20 high-speed heavy-load collaborative robot
The UR20 is the model with the longest working radius in our heavy-load collaborative robot range.
Thanks to its extremely compact footprint, this industrial collaborative robot automates applications that require moving heavy objects over long distances.
More performance, more possibilities
We have increased the UR20's payload capacity by 5 kg and optimized its motion performance.
With payload raised to 25 kg and improved control precision for high-speed operation, the UR20 enables more collaboration opportunities in the same compact form factor.
The increased maximum payload boosts productivity without the need for a larger or additional collaborative robot.
Expand as needed
When selecting a cobot, payload and reach matter, yet modern collaborative robots also depend on usability, footprint, deployment, software and sustainability.
The UR20 satisfies all these requirements, boasting Universal Robots’ longest reach and highest payload.
Built for long-distance heavy-load lifting, it delivers smooth, precise motion control even at high speeds.

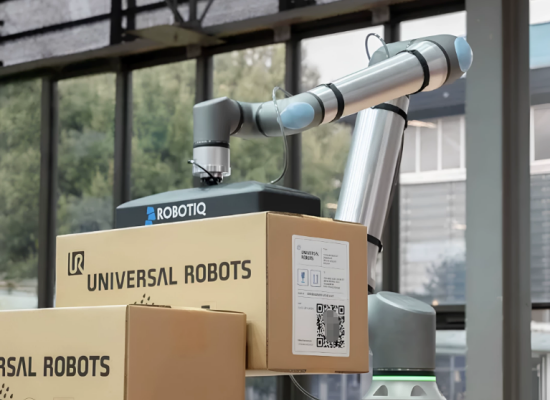

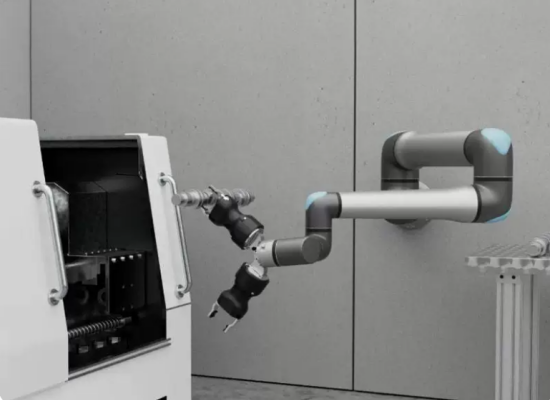

Lightweight and compact, it fits nearly any existing workspace, automating tasks from material handling to welding.
Functional Features
Possibilities

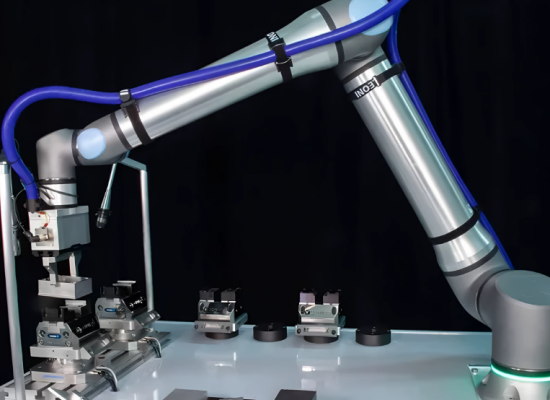

A larger working range extends collaborative automation further, enabling throughput gains in more demanding, heavier-load applications.
Productivity
The UR20 is one of our fastest collaborative robots, helping you improve production efficiency and speed up processes.
Advanced motion control
Maintains full speed and high acceleration even at maximum reach and payload.
Excellent payload performance

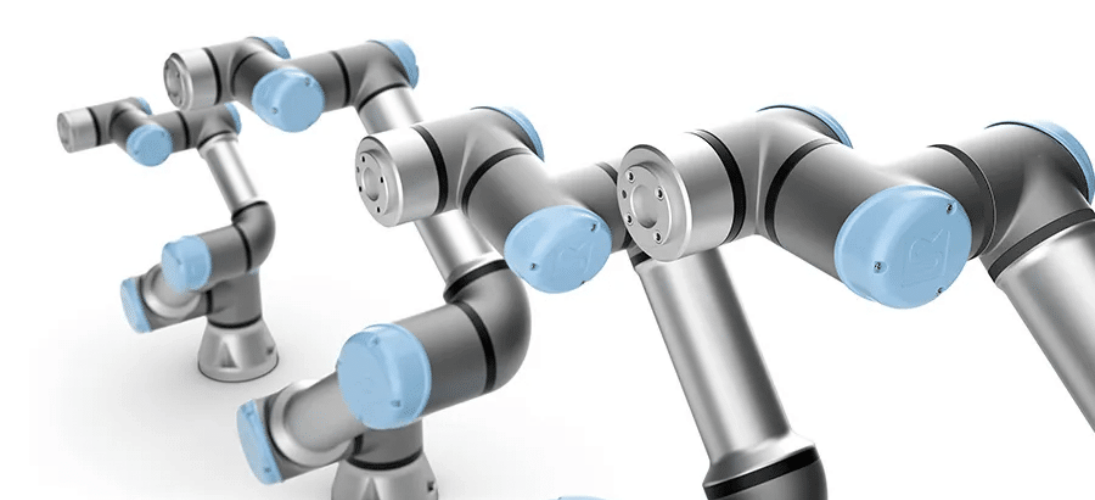

Choose a collaborative robot that keeps getting more powerful to future-proof your equipment.
When moving heavy objects over maximum distances, the mounting position of the end effector does not affect operation.
If the lifting method of the object changes, causing a shift in the center of gravity, the UR20 supports this change.
Safety
Payload, speed and working radius are all enhanced, and operator safety remains our top priority.
To build collaborative robots, our engineers invested extensive time in developing the robot's safety functions.
Through their efforts, today's safety standards for collaborative industrial robots came into being.
Product Display

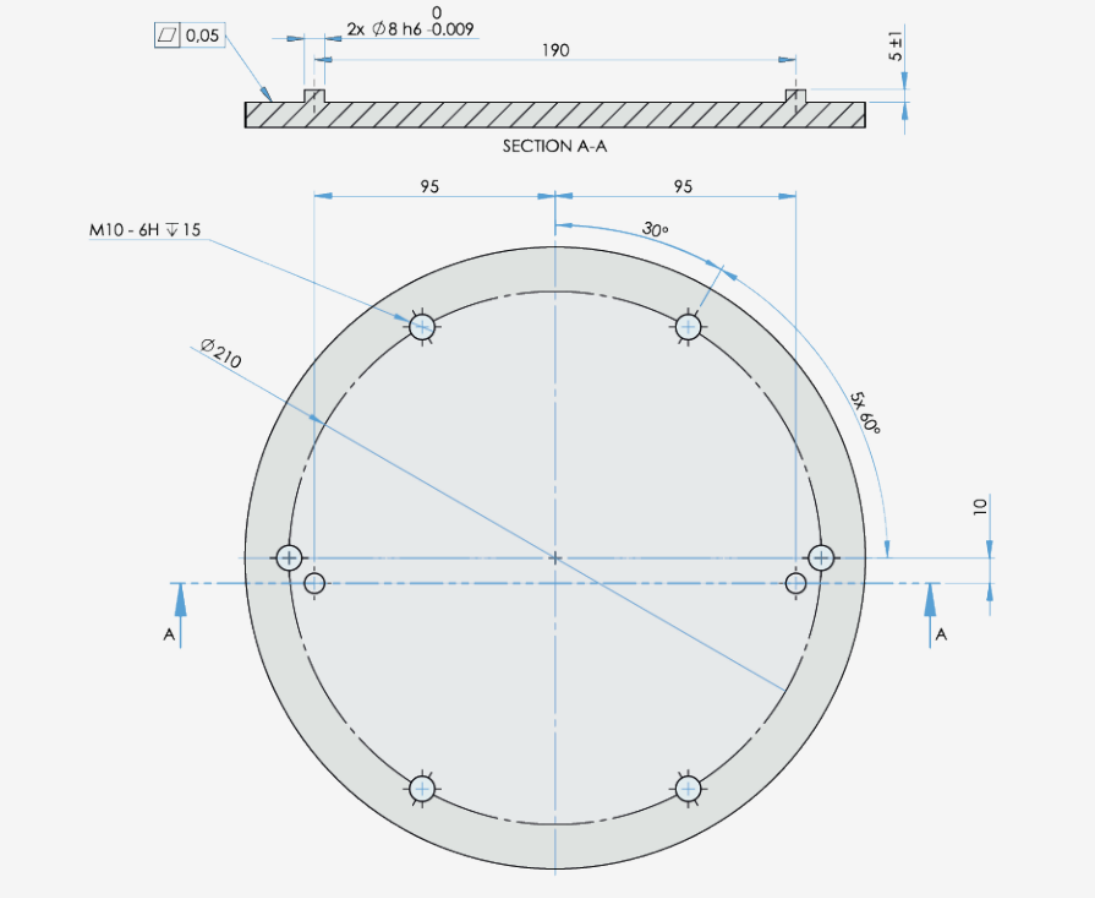

Interface for UR20 base flange

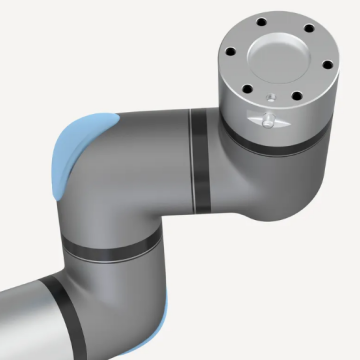

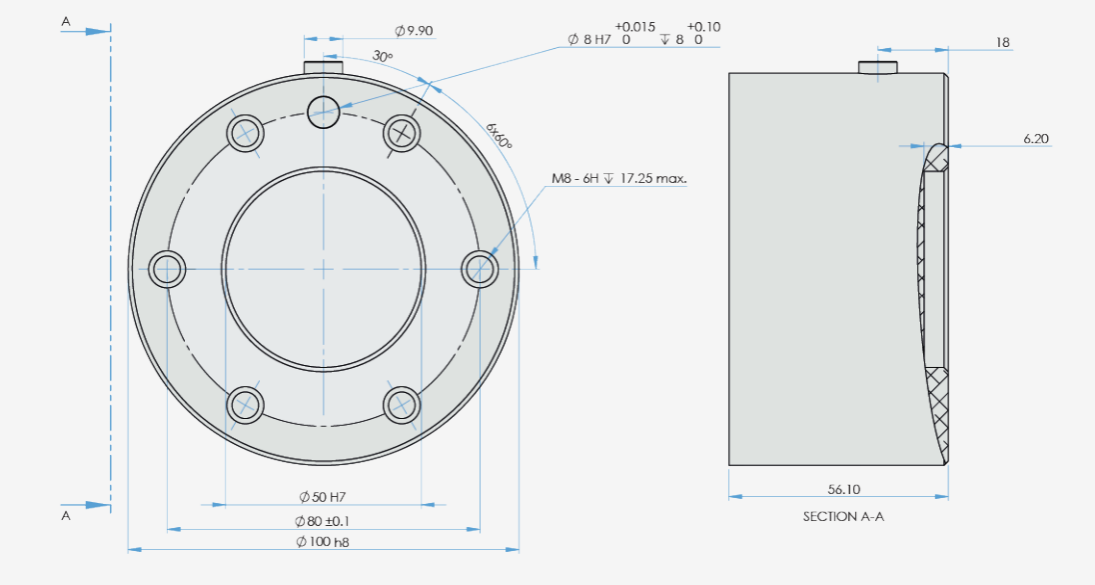

Tool flange for UR20

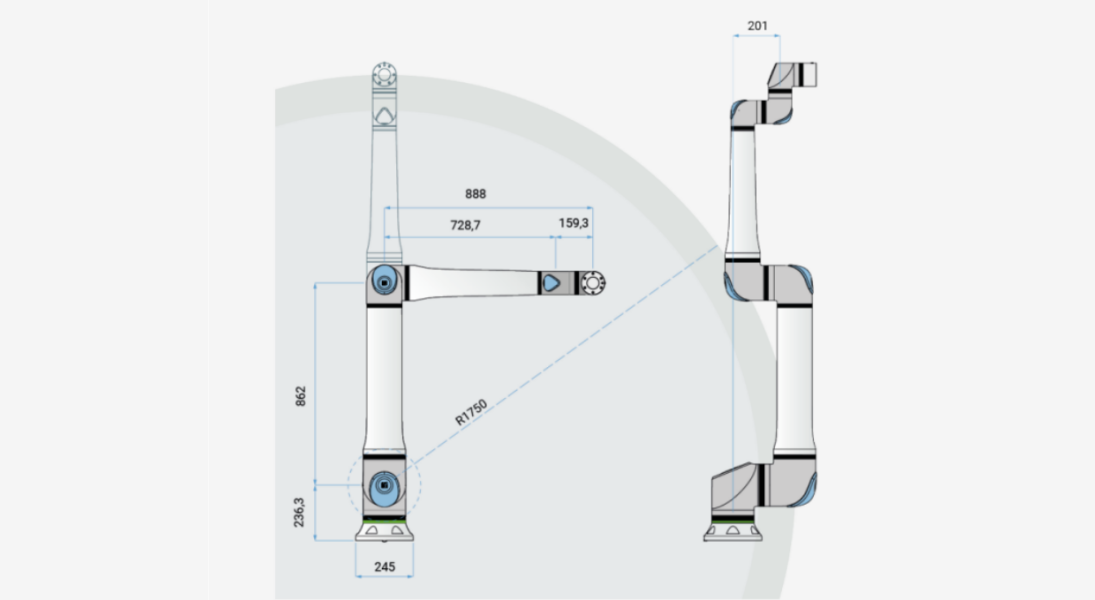

Dimensions and reach UR20
Product parameters
UR20 General Specification
Parameter | Value |
Payload | 20 kg / 44.1 lbs; 25 kg / 55.1 lbs with boundary conditions according to the manual |
Reach | 1750 mm / 68.9 in |
Degrees of freedom | 6 rotating joints |
Programming | 12 inch touchscreen with PolyScope graphical user interface |
Power consumption (maximum) | 750 W |
Operating temperature range | Ambient temperature: 0-50 °C / 32-122 °F |
Safety functions | 23 configurable safety functions |
In compliance with | EN ISO 13849-1 (PLd Category 3), EN ISO 10218-1 and UL 1740 |
Joint architecture | 2-1-3 |
