Product Description
| Reach: 850 mm / 33.5 in | Payload: 7.5 kg / 16 lbs | Base footprint: Ø151 mm | Weight: 20.6 kg / 45.4 lbs |
Easy to program
With intuitive patented 3D visualization technology, even operators without programming experience can quickly set up and operate our collaborative robots.

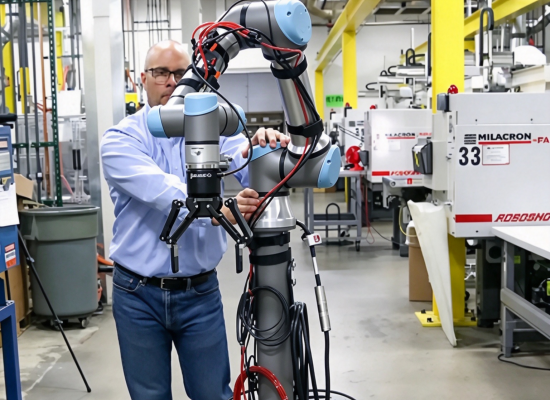

Operators simply move the robot arm to the desired waypoints or touch the arrow keys on the easy-to-use touchscreen tablet.
Quick setup
Universal Robots has transformed collaborative robot setup — deployment that used to take weeks now takes only hours, with customers reporting an average setup time of half a day.
Untrained operators can unbox, install, program and complete a first simple task in under one hour.
Flexible deployment
Do not be limited by dedicated robotic technology. UR robots are lightweight, space-saving and easy to redeploy across applications without changing the production layout.
Customers can quickly switch collaborative robots to new processes, and this flexibility enables automation of almost any manual task, including small batches or rapid changeovers.
The robot can reuse the same program for repetitive tasks.
Collaboration and safety
Now you can replace operators in dirty, dangerous and tedious jobs, reducing repetitive strain injuries and accidental harm.
Our robot safety systems are approved and certified by TÜV (German Technical Inspection Association).
Functional Features
UR7e wide working range

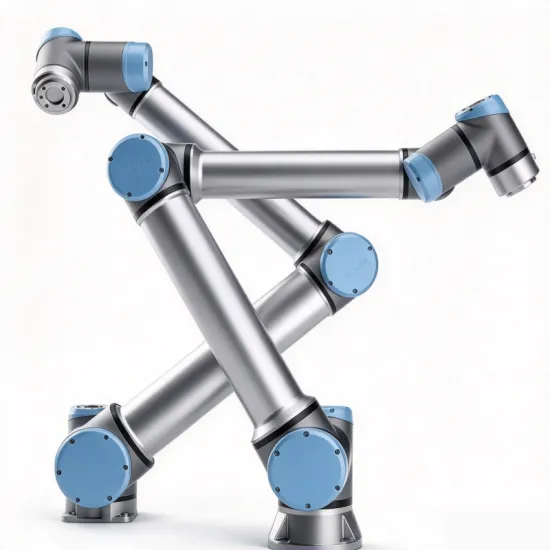

The lightweight, highly flexible collaborative UR7e industrial robot arm automates dangerous, repetitive tasks with a payload of up to 7.5 kg.
Process optimization
The flexible UR7e is ideal for optimizing lightweight collaborative processes such as picking, placing and testing.
With a reach of 33.5 inches (850 mm), the UR7e covers a wide working range, saving employee time and adding value to other stages of production.

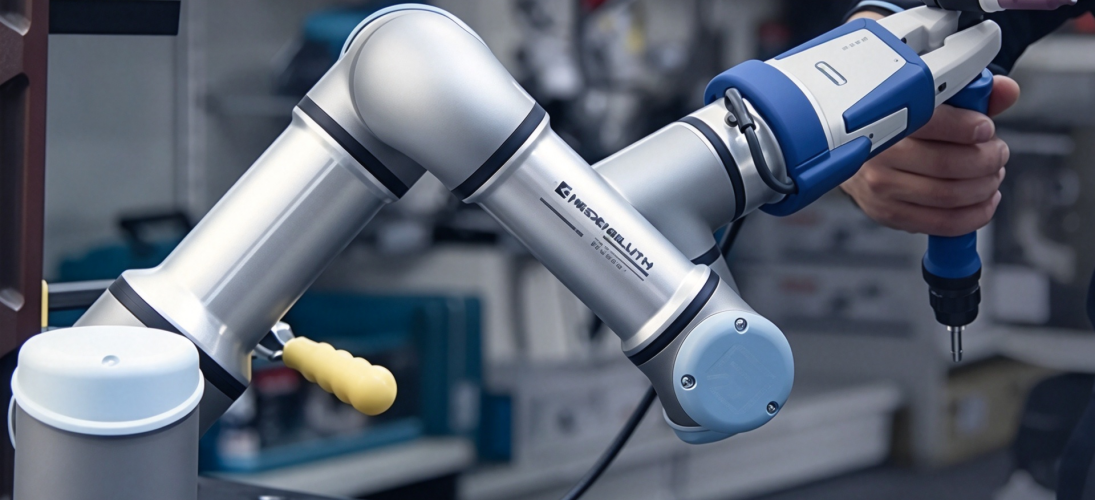

Easy to program
UR7e programming is intuitive and simple, and can be learned through online and offline Universal Robots Academy training.
The robot is lightweight (20.6 kg / 45.4 lbs) and uses a standard power outlet, so setup is fast and simple.
The system's safety functions are configured to reduce risks for workers in collaborative workspaces.
Like our other collaborative robots, the UR7e offers shorter installation times and faster return on investment than other robots or fixed automation equipment, helping you realize ROI in the shortest time.
Application

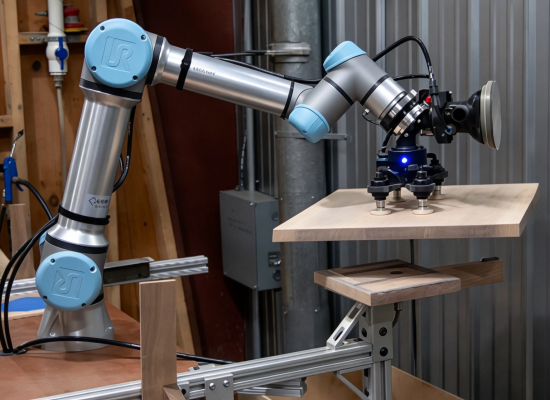

Assembly: screw driving, part insertion

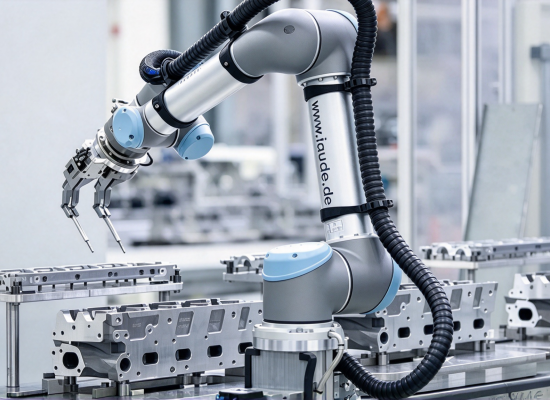

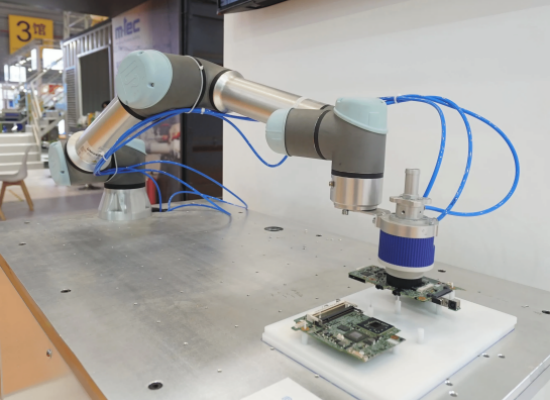

Machine tending: machine loading/unloading, injection molding, ICT

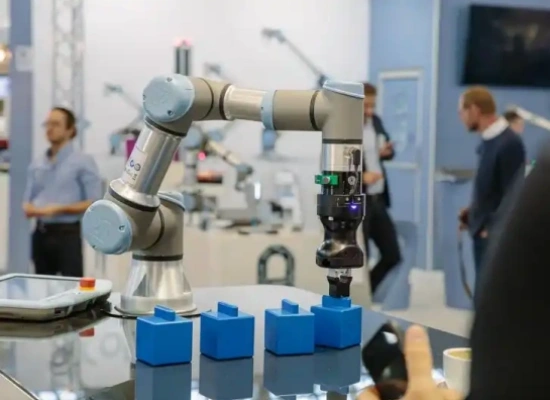

Material handling: packaging, palletizing, picking, kitting

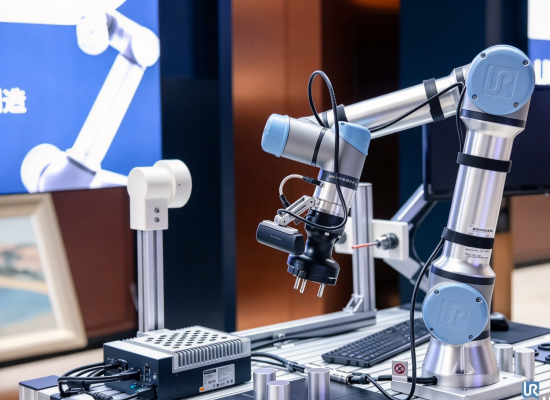

Quality inspection: testing, inspection, measurement

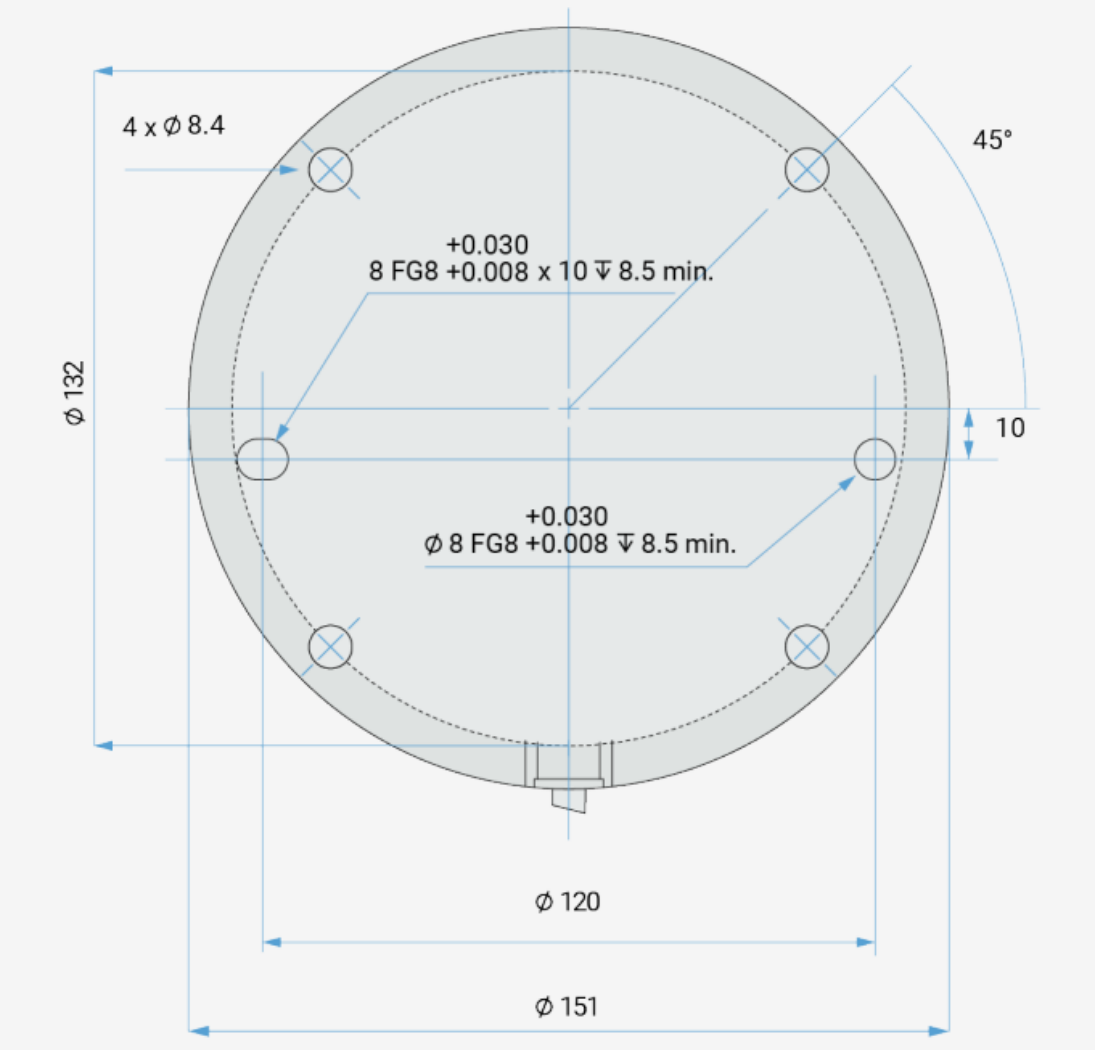

Interface for UR7e base flange

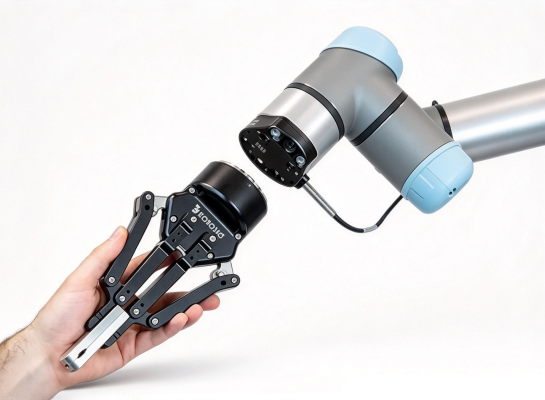

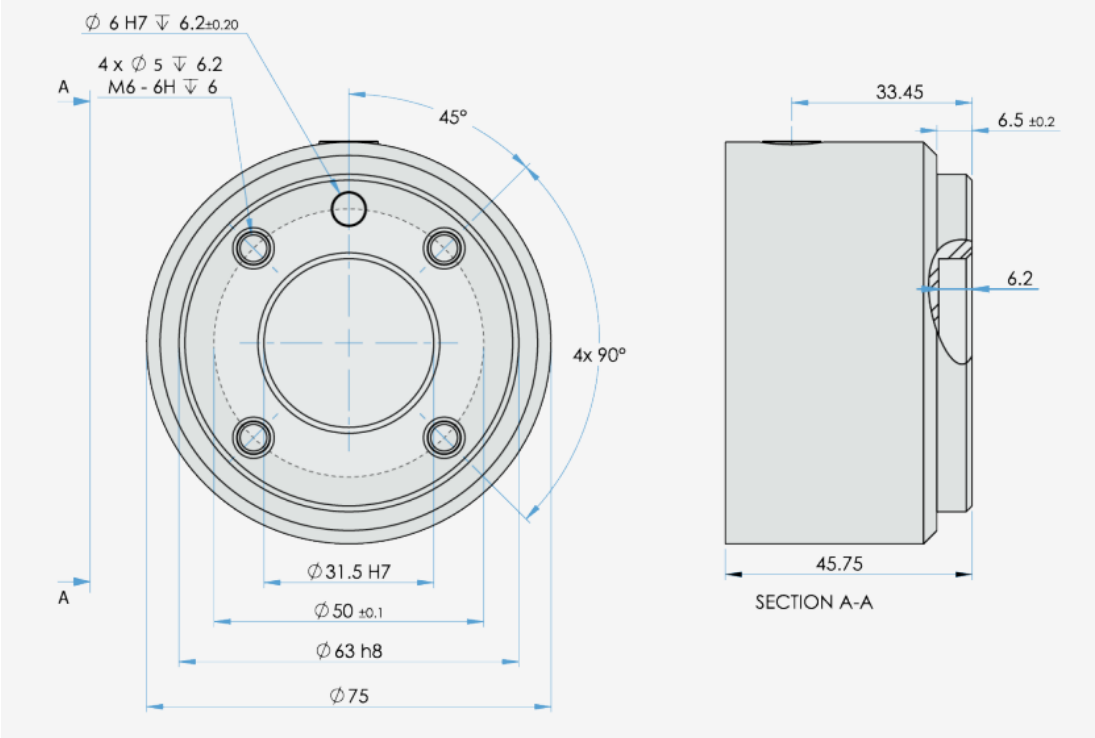

Tool flange for UR7e

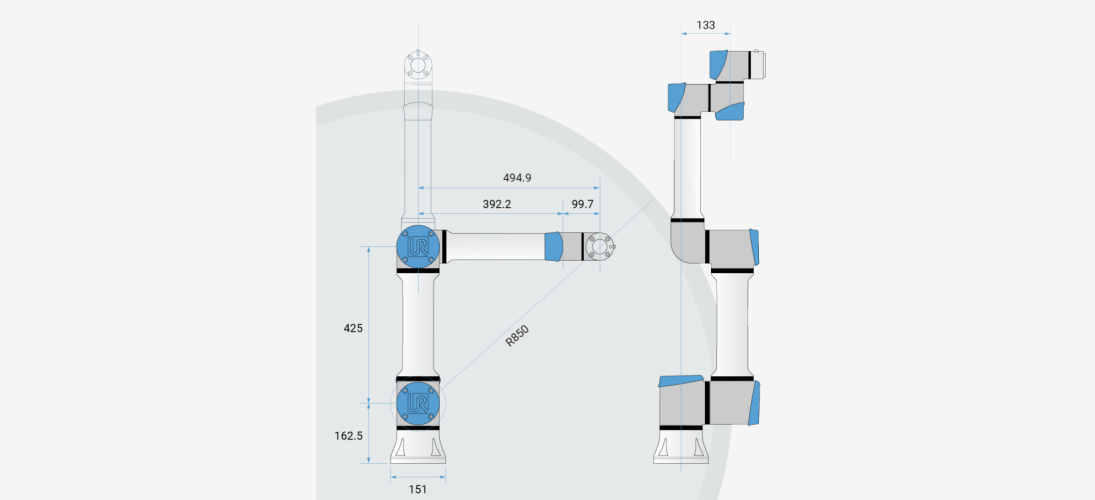

Dimensions and reach of UR7e
Product parameters
UR7e General Specification
Parameter | Value |
Payload | 7.5 kg (16 lbs) |
Reach | 850 mm / 33.5 in |
Degrees of freedom | 6 rotating joints |

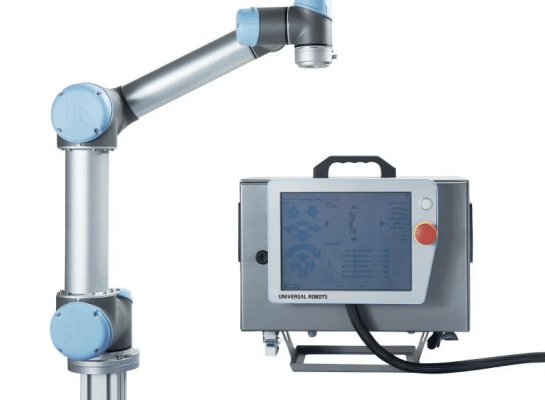

Programming | 12 inch touchscreen with PolyScope graphical user interface |
Power consumption (average) | Max. power 570 W; moderate operating setting 250 W |
Operating temperature range | Ambient temperature: 0-50 °C / 32-122 °F |
Safety functions | 17 configurable safety functions |
Safety standards | EN ISO 13849-1 (PLd Category 3) and EN ISO 10218-1 |
