30mmstroke

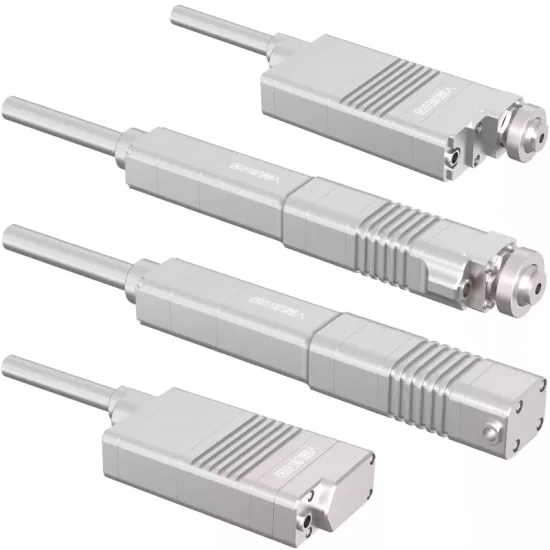

Miniature servo electric cylinder
Product Introduction
A micro servo electric cylinder—also known as an integrated linear actuator—is a compact, all-in-one linear servo system that serves as a core motion component for precision electromechanical equipment such as robots, industrial machinery, and medical devices. It integrates a coreless motor, a precision gear reducer, a lead screw drive mechanism, sensors, and a closed-loop control system. Characterized by its compact size, high precision, and high power density, it enables precise servo control at any position within its travel range. It features a built-in absolute position sensor, ensuring that position data is retained after power loss and eliminating the need for a homing procedure.
Core Advantages
| ●Compact size ●High precision ●Force control ●High power density ●Integrated drive and control |
|
Product Specifications
Series Name | Speed rating | Mechanical interface | Electrical interface | Model Examples | |
LA30 | 02 | 1 | D | LA30-021D | |
journey | 02 | 1-Standard Interface | D-LVTTL Serial Port | ||
2-Port with mounting tabs | P-PWM interface | ||||

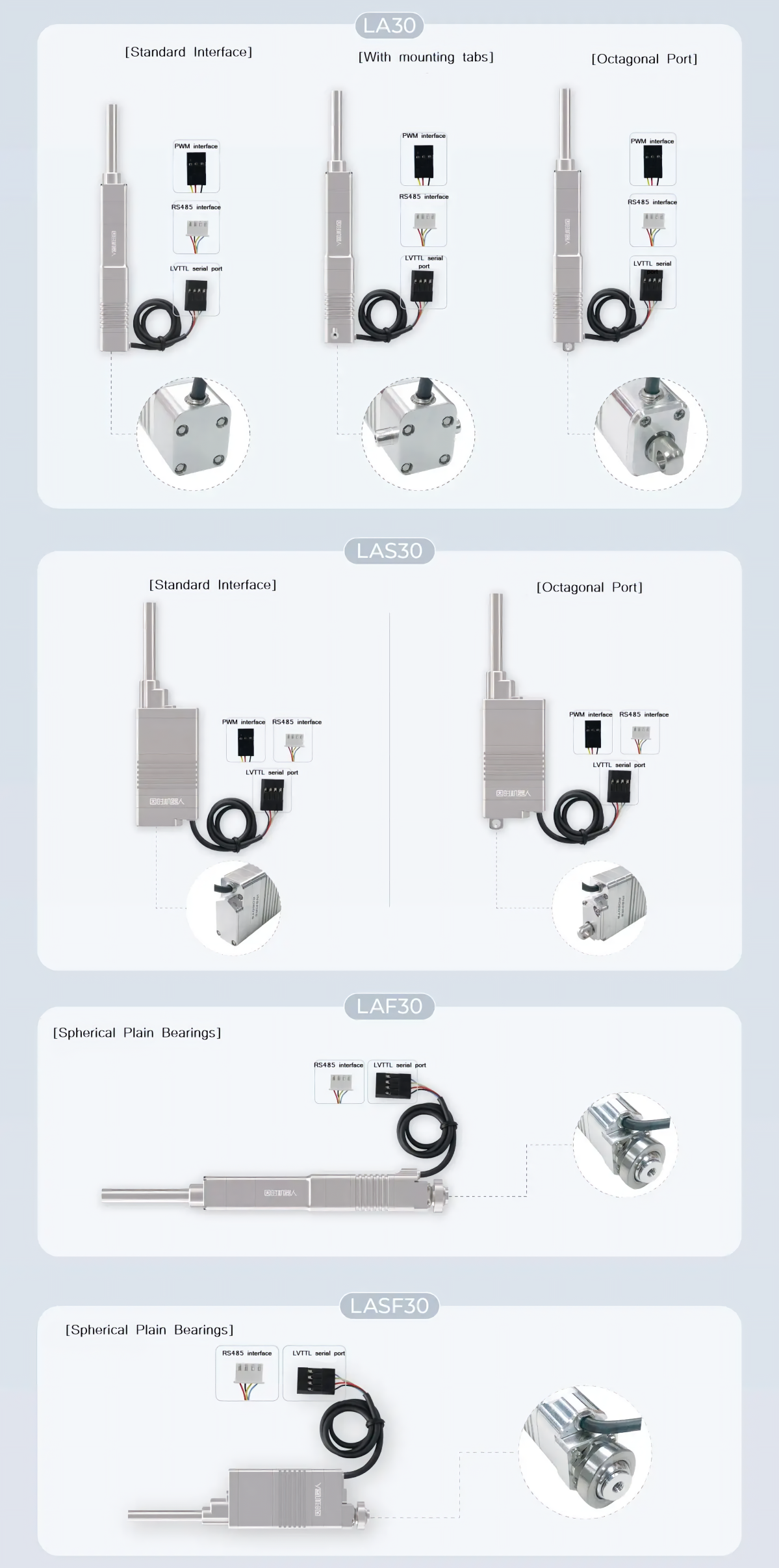

3-Octagonal interface | 2-RS485 Interface |
Standard Parameters
journey | weight | Operating voltage | Repeat positioning accuracy | Operating temperature | Quiescent current | Peak current | IP Rating |
30mm | 30g | DC8V±10% | ±0.06mm | -10°C~+60°℃ | 0.02A | 2A | IP40 |
Other parameters at different speed ratings
Speed rating | Maximum push-pull force | Stall push-pull force | Maximum self-locking force | No-load speed | Full-load speed | No-load current |
02 | 50N | 80N | 80N | 17mm/s | 8mm/s | 0.30A |
Series Name | Speed rating | Mechanical interface | Electrical interface | Model Examples | |
LAS30 | 02 | 1 | D | LAS30-021D | |
journey | 02 | 1-Standard Interface | D-LVTTL Serial Port | ||
3-Octagonal interface | P-PWM interface | ||||
2-RS485 Interface |
Standard Parameters
journey | weight | Operating voltage | Repeat positioning accuracy | Operating temperature | Quiescent current | Peak current | IP等级 |
30mm | 35g | DC8V±10% | ±0.06mm | -10°℃C~+60°C | 0.02A | 2A | IP40 |
Other parameters at different speed ratings
Speed rating | Maximum push-pull force | Stall push-pull force | Maximum self-locking force | No-load speed | Full-load speed | No-load current |
02 | 80N | 110N | 110N | 13mm/s | 6mm/s | 0.30A |
Series Name | Speed rating | Mechanical interface | Electrical interface | Model Examples | |
LAF30 | 02 | 1 | D | LAF30-024D | |
journey | 02 | 4-Spherical Plain Bearing | D-LVTTL Serial Port | ||
2-RS485 Interface |
Standard Parameters
journey | weight | Operating voltage | Repeat positioning accuracy | Operating temperatur | Quiescent current | Peak current | Force sensor detection range | Force sensor resolution | IP Rating |
30mm | 29g | DC8V±10% | ±0.06mm | -10°℃C~+60°C | 0.05A | 2A | -100N~+100N | 1N | IP40 |
Other parameters at different speed ratings
Speed rating | Maximum push-pull force | Stall push-pull force | Maximum self-locking force | No-load speed | Full-load speed | No-load current |
02 | 50N | 80N | 80N | 17mm/s | 8mm/s | 0.30A |
Series Name | Speed rating | Mechanical interface | Electrical interface | Model Examples | |
LASF30 | 02 | 1 | D | LASF30-024D | |
journey | 02 | 4-Spherical Plain Bearing | D-LVTTL Serial Port | ||
2-RS485 Interface |
Standard Parameters
journey | weight | Operating voltage | Repeat positioning accuracy | Operating temperature | Quiescent curren | Peak current | Force sensor detection range | Force sensor resolution | IP Rating |
30mm | 44g | DC8V±10% | ±0.06mm | -10°℃C~+60°C | 0.05A | 2A | -100N~+100N | 1N | IP40 |
Other parameters at different speed ratings
Speed rating | Maximum push-pull force | Stall push-pull force | Maximum self-locking force | No-load speed | Full-load speed | No-load current |
02 | 80N | 110N | 110N | 13mm/s | 6mm/s | 0.30A |

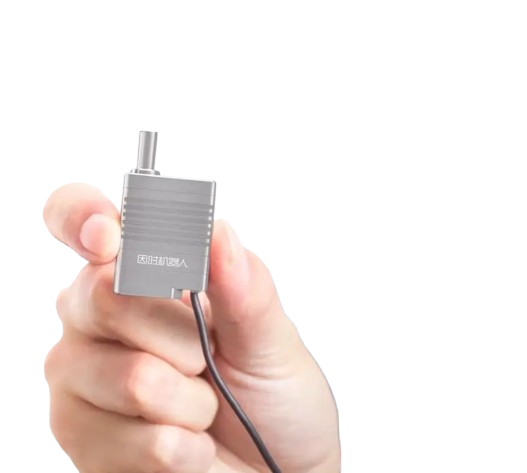

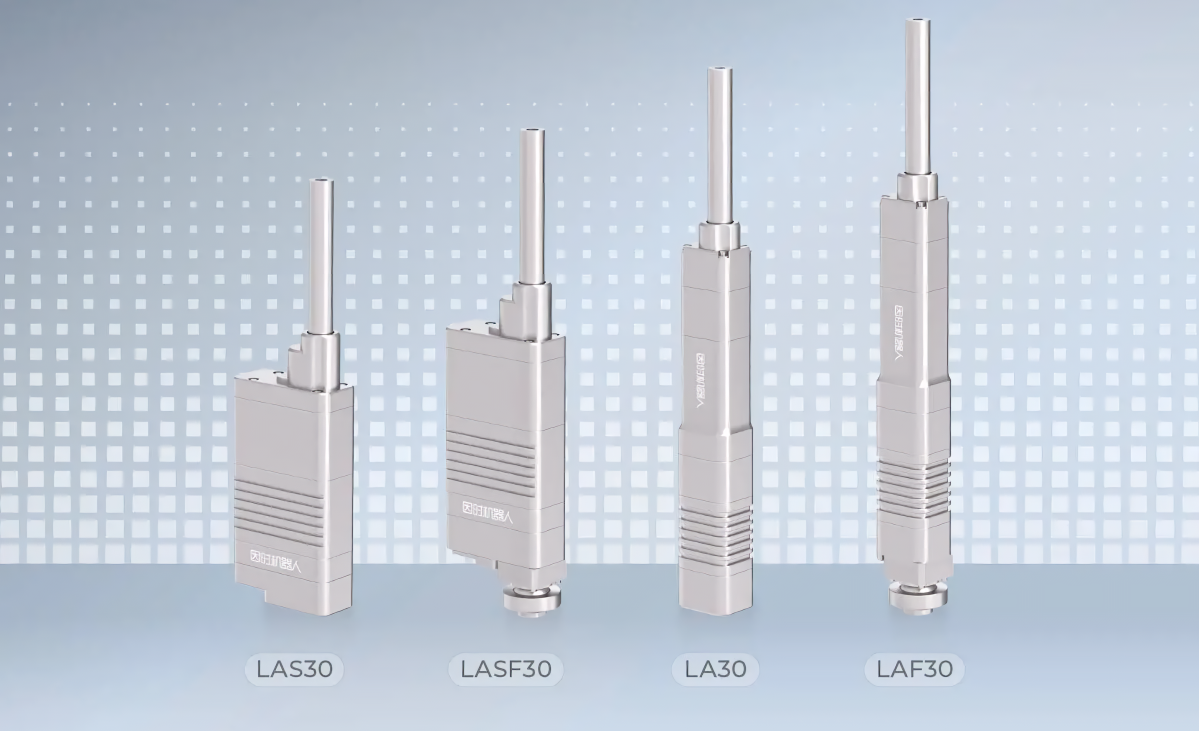

Photo of the actual product

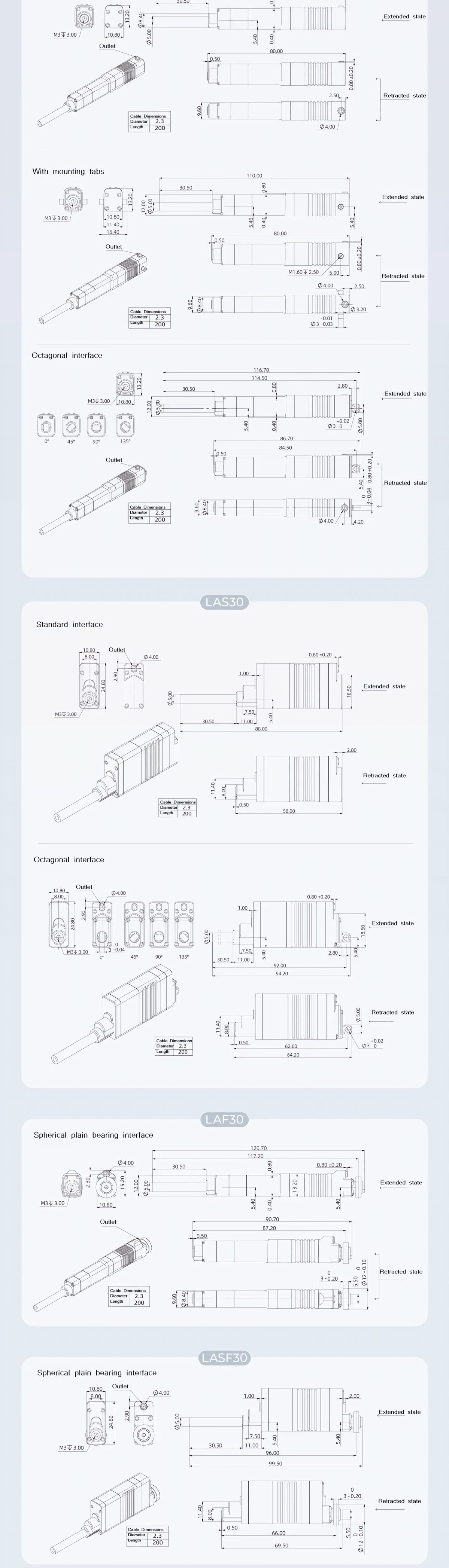

Dimensional Drawing

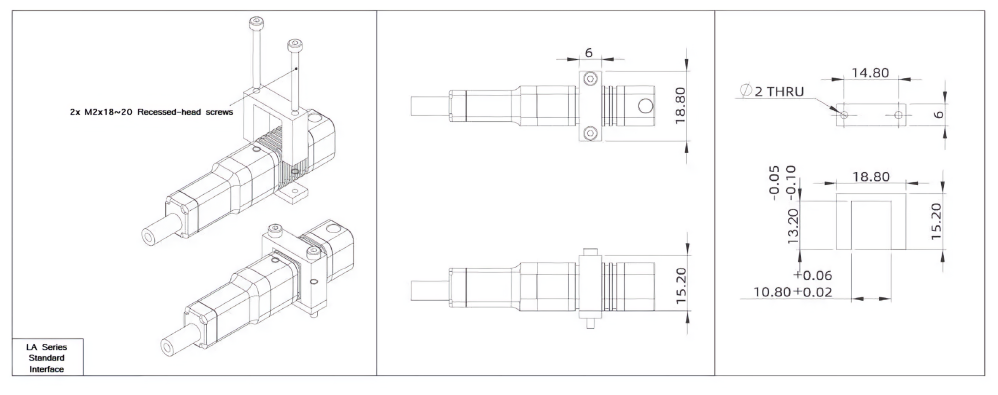

Installation Method

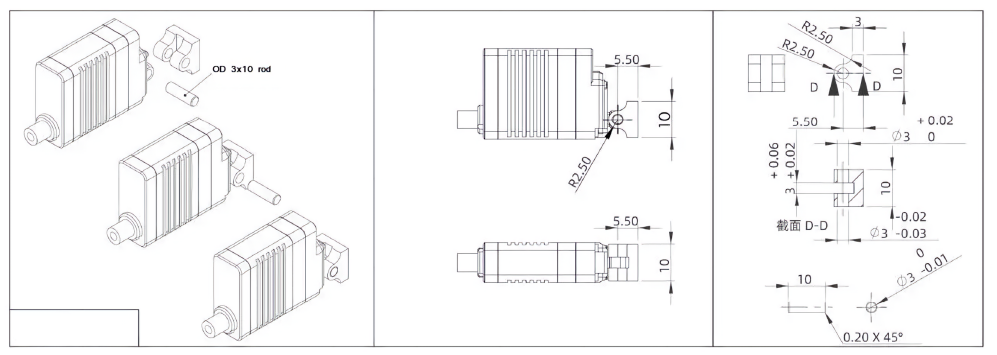

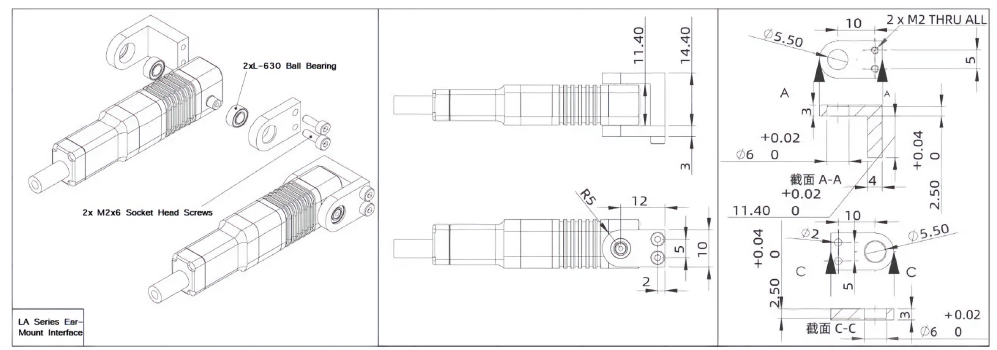

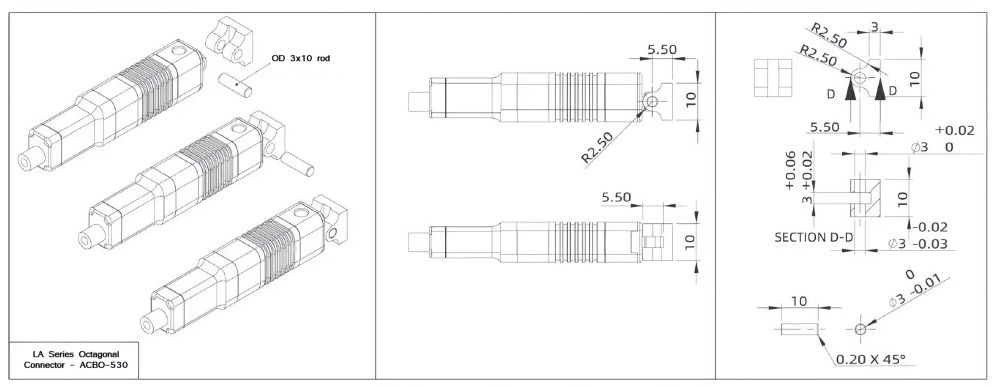

LA Series
Note: Installation parts are for design reference only; actual parts are not provided.

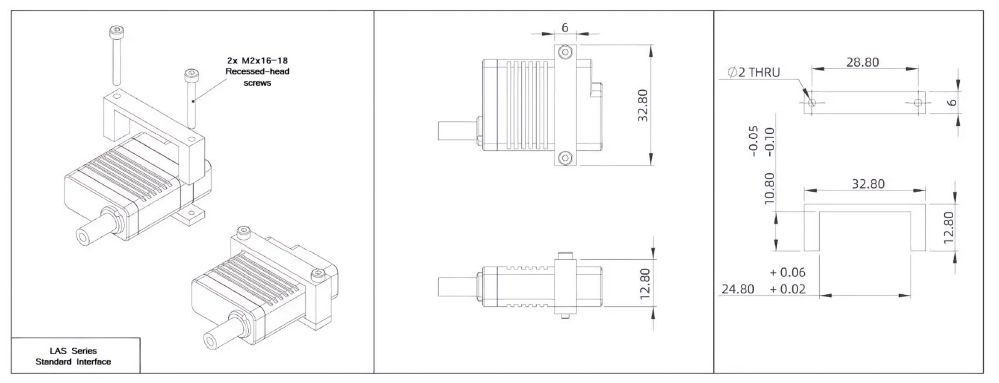

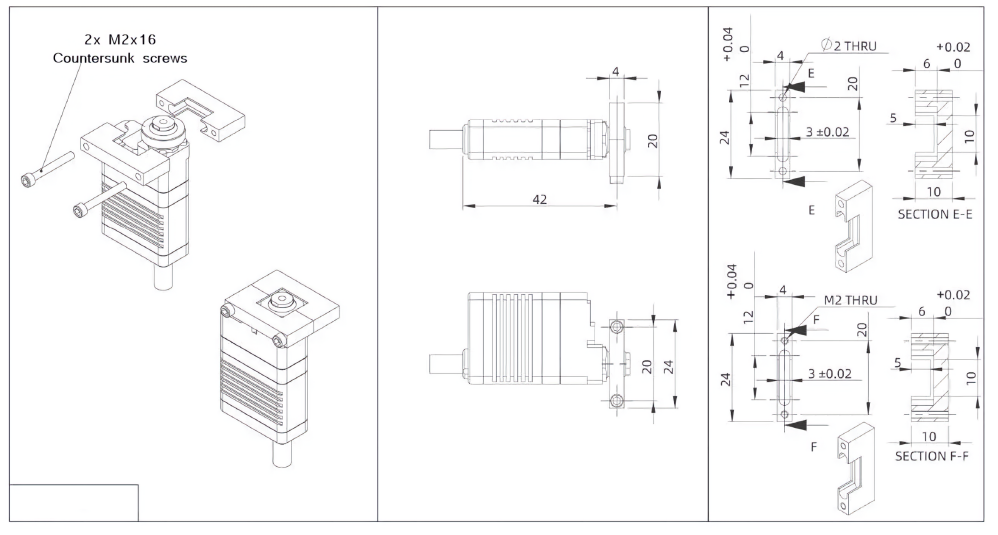

LAS Series
Note: Installation parts are for design reference only; actual parts are not provided.

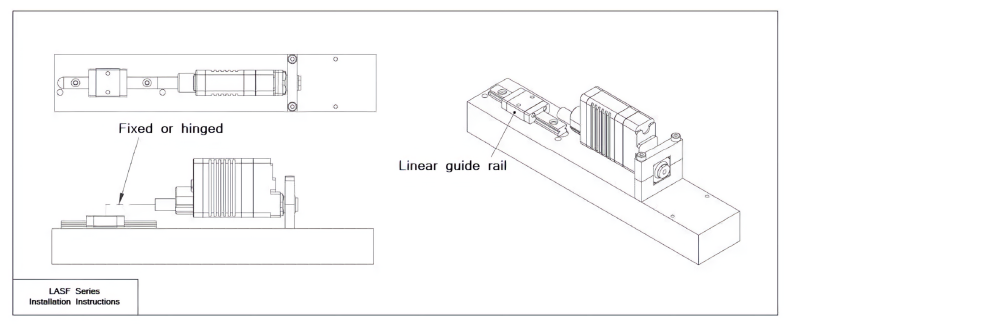

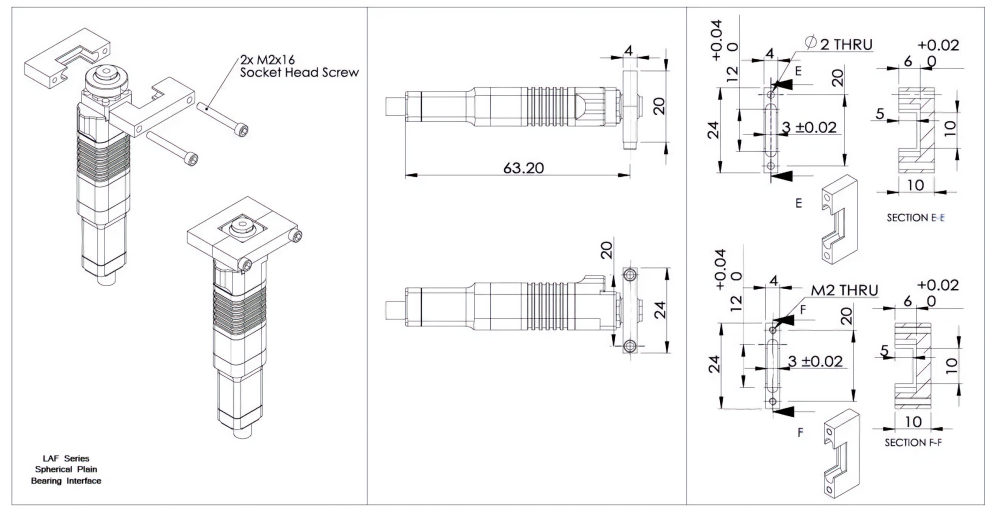

LAF Series
LASF Series
Note: Installation parts are for design reference only; actual parts are not provided.
（It is recommended to install a linear guide rail at the front end of the push rod to unload lateral forces and eliminate their influence on the force sensor's detection results.响）
