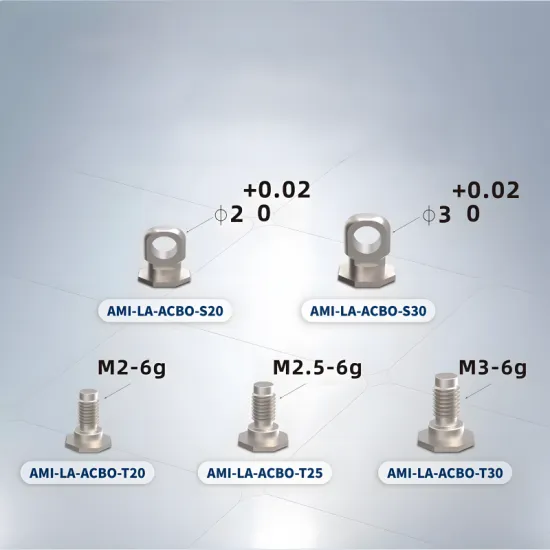

Octagonal Connector – AMI-LA-ACBO-XXX
LA and LAS series octagonal-interface actuators feature an octagonal base at the rear.
They come standard with the AMI-LA-ACB0-S30 octagonal connector,
but the following octagonal connector models are also available for purchase.

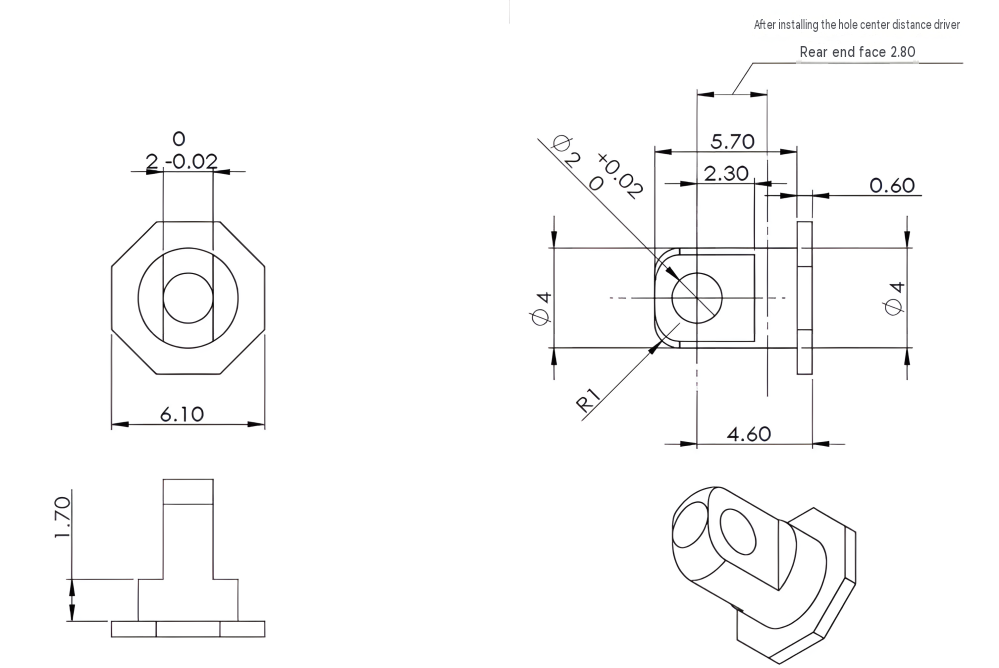

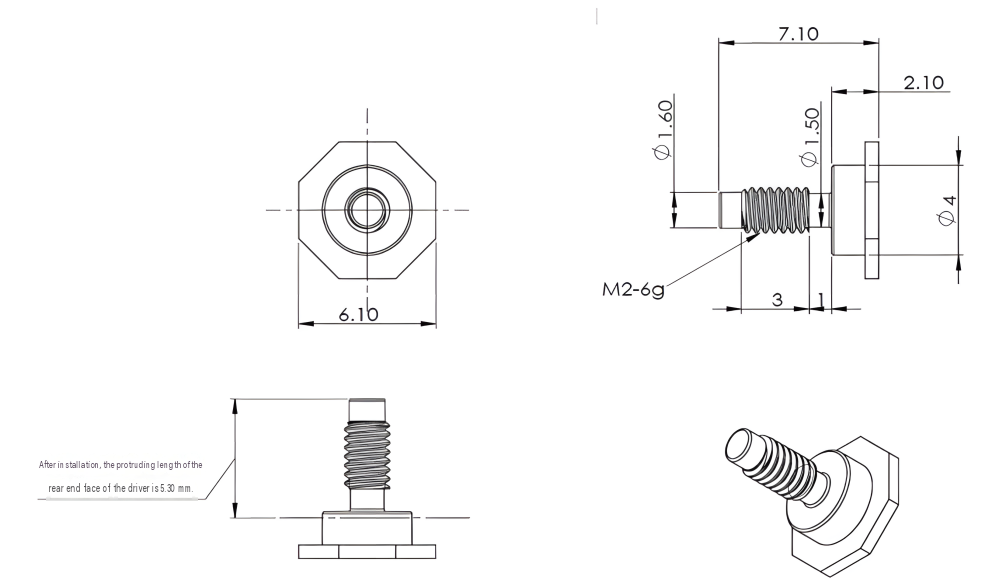

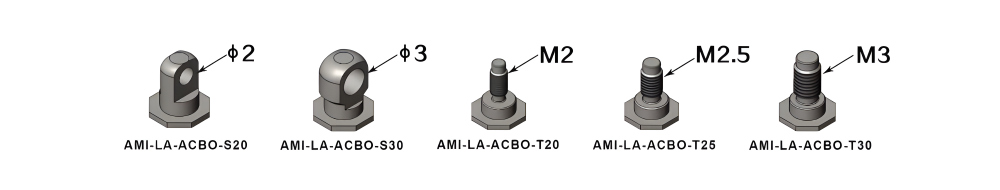

AMI-LA-ACB0-S20 Dimensional Drawing

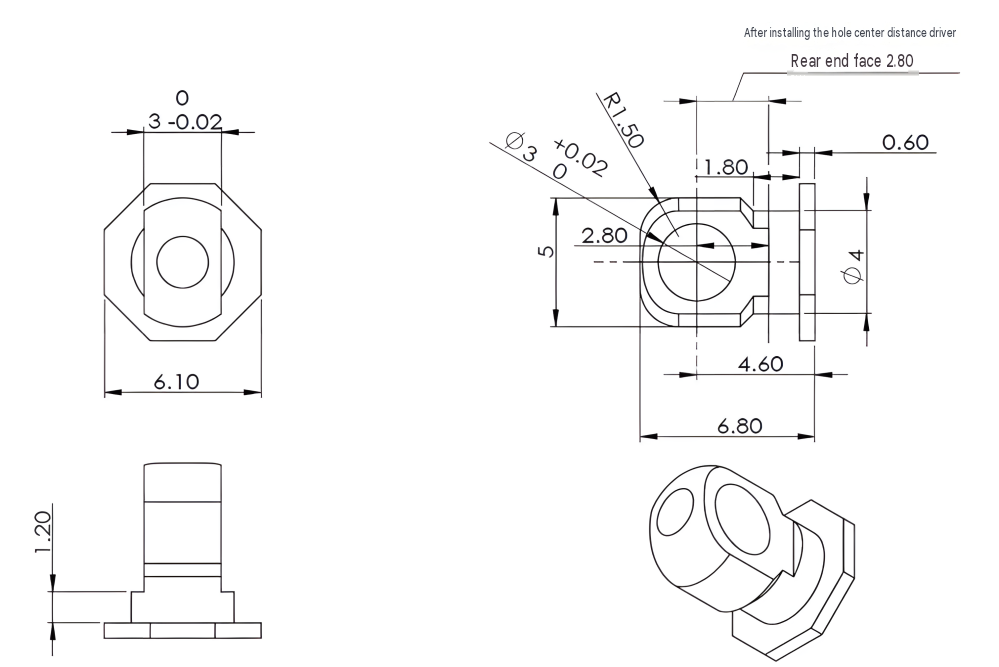

AMI-LA-ACB0-S30 Dimensional Drawing
AMI-LA-ACB0-T20 Dimensional Drawing

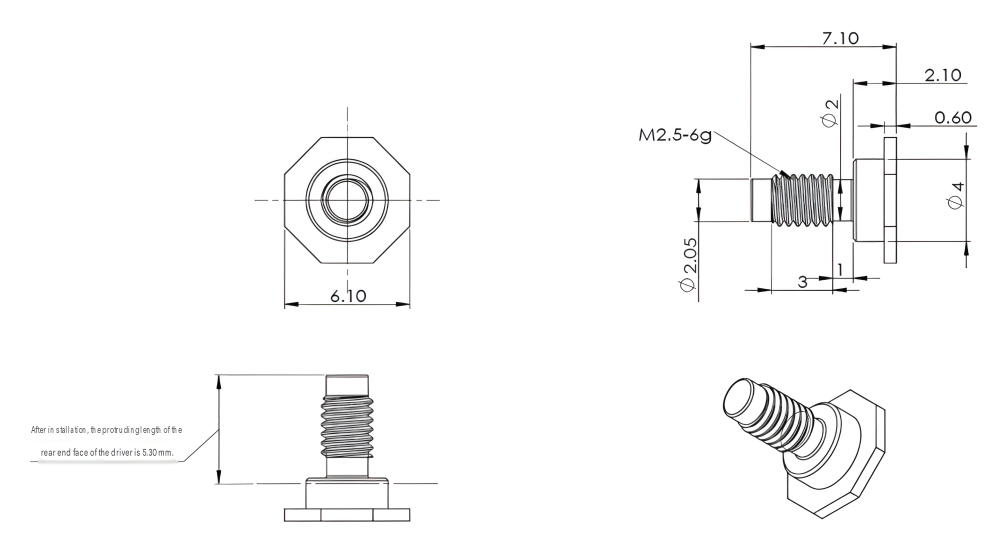

AMI-LA-ACB0-T25 Dimensional

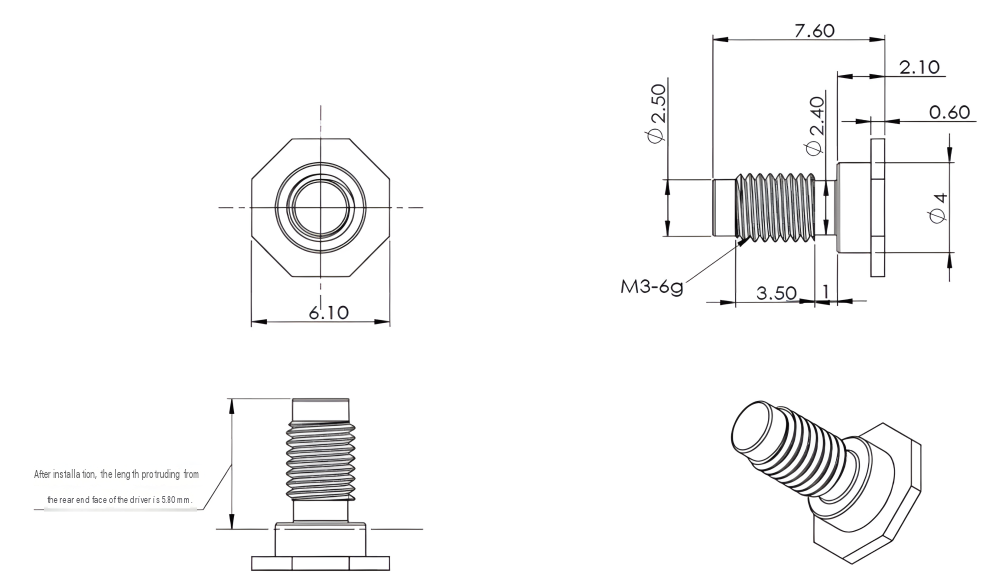

AMI-LA-ACB0-T30 Dimensional Drawing
Actuator Connector – AMI-LA-ACR1-XXX

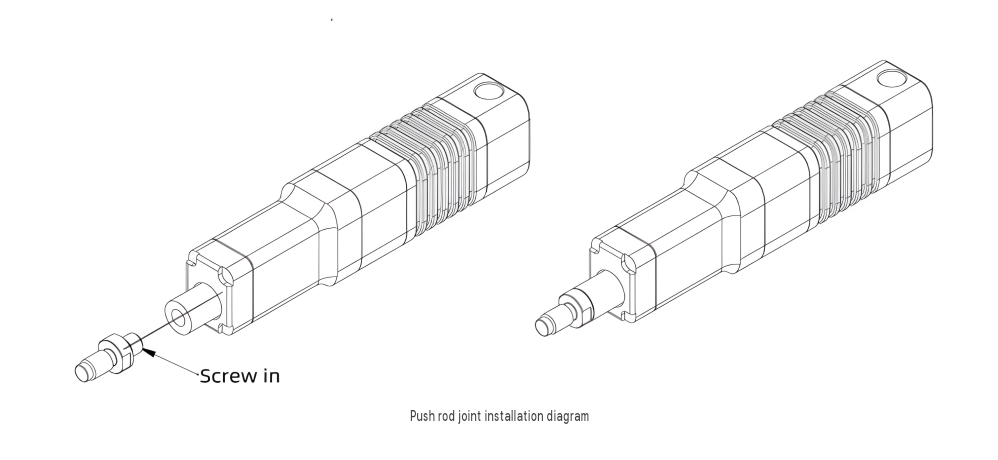

For all actuator models, the front end of the actuator rod features a standard M3 internal thread with a depth of 3 mm.
Actuator connectors can be selected as needed.

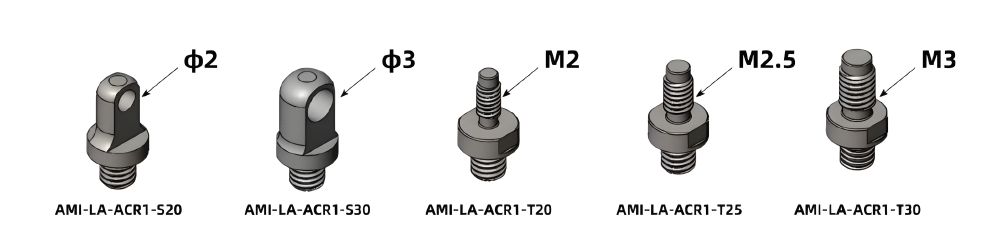

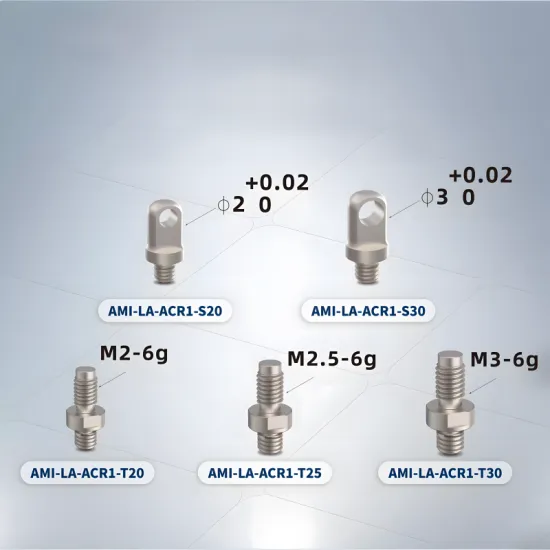

| Push rod joint | Model | Interface type | Assembly renderings |
| AMI-LA-ACR1-S20 | Φ2 through hole |
|
| AMI-LA-ACR1-S30 | Φ3 through hole |
|
| AMI-LA-ACR1-T20 | M2 screw |
|
| AMI-LA-ACR1-T25 | M2.5 screw |
|
| AMI-LA-ACR1-T30 | M3 screw |
|

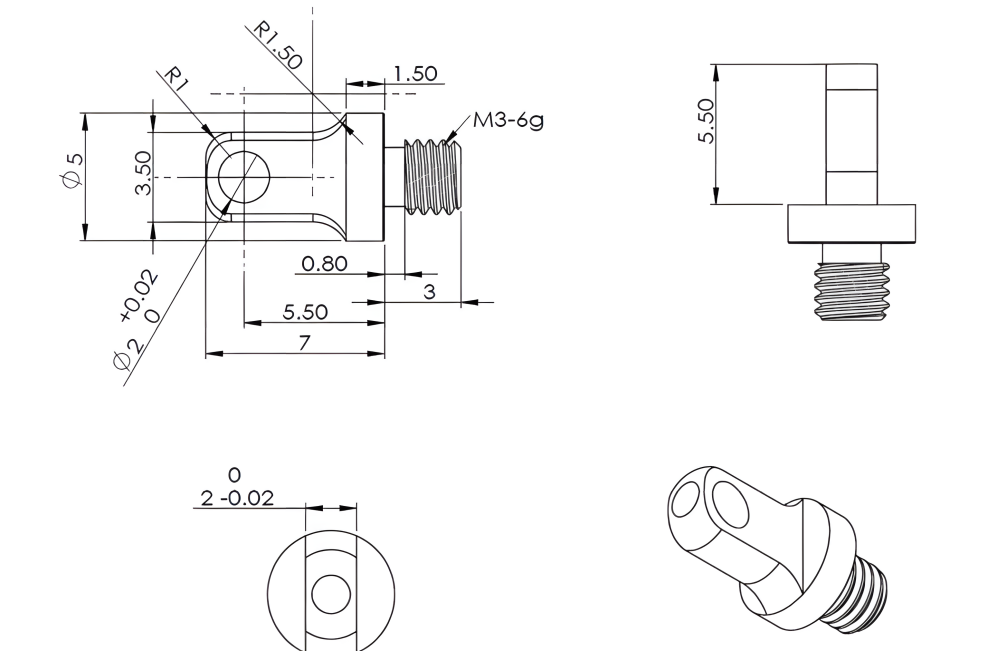

AMI-LA-ACR1-S20 Dimensional Drawing

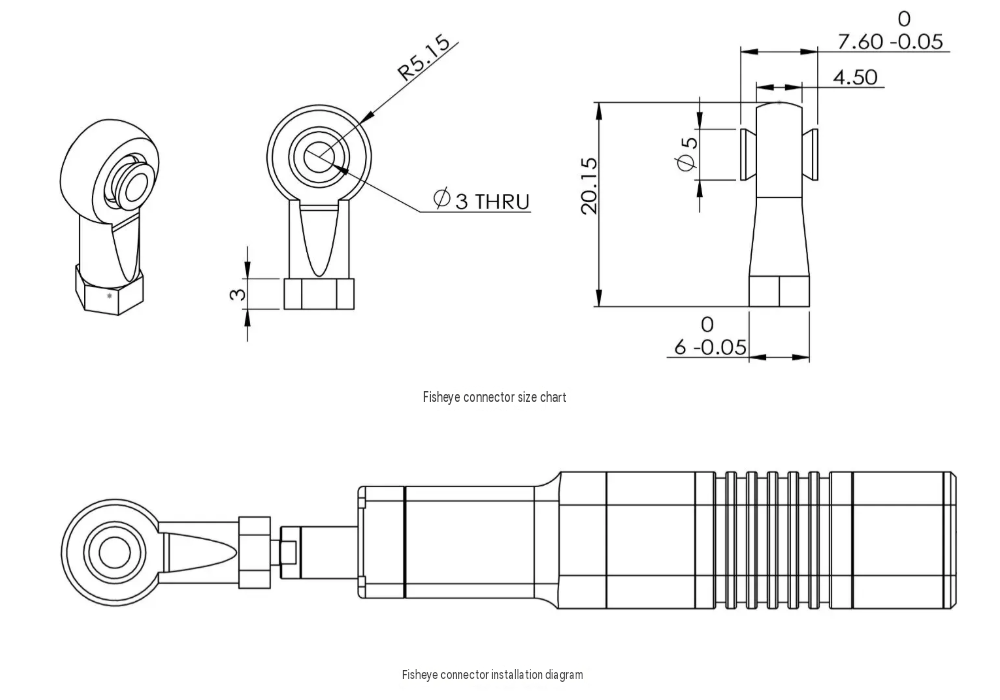

AMI-LA-ACR1-S30 Dimensional Drawing

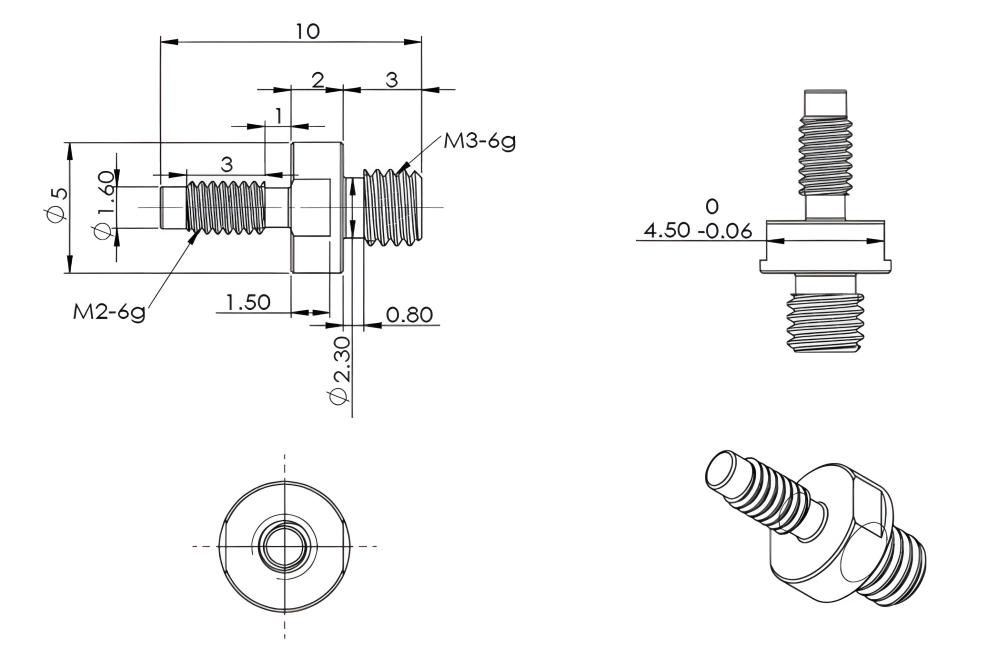

AMI-LA-ACR1-T20 Dimensional Drawing

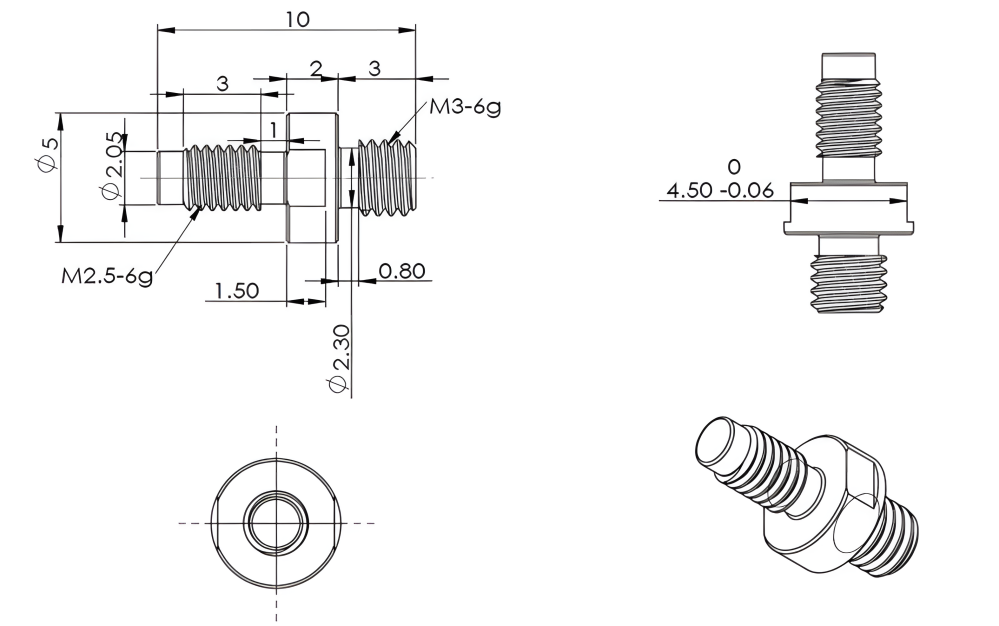

AMI-LA-ACR1-T25 Dimensional Drawing

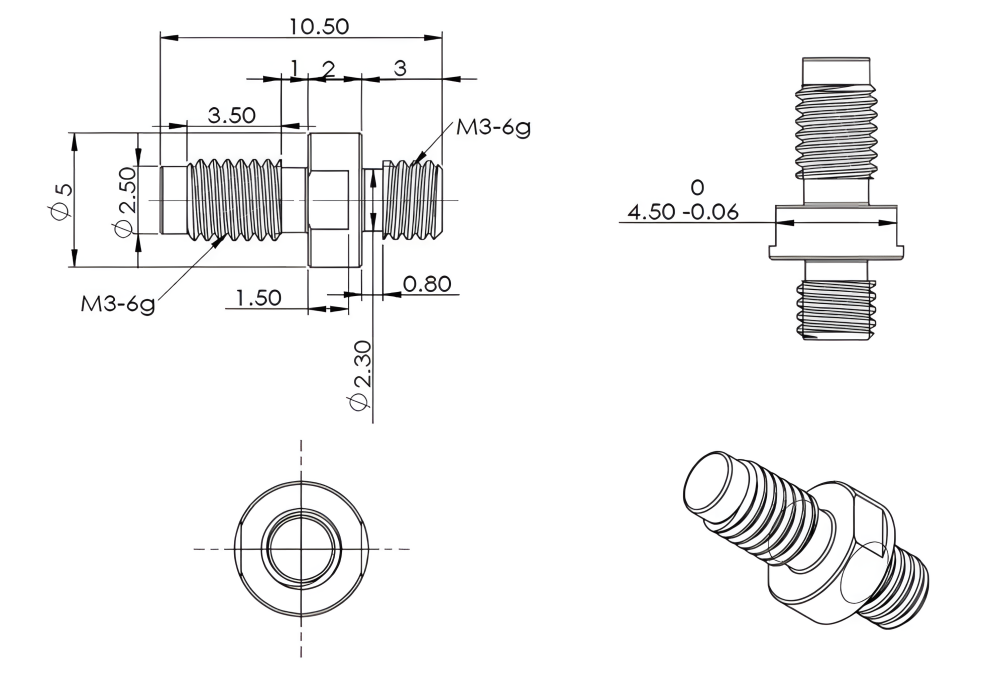

AMI-LA-ACR1-T30 Dimensional Drawing
