Details & Images

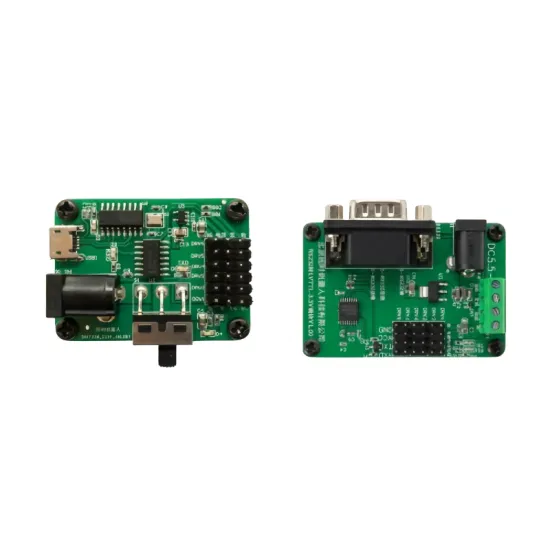

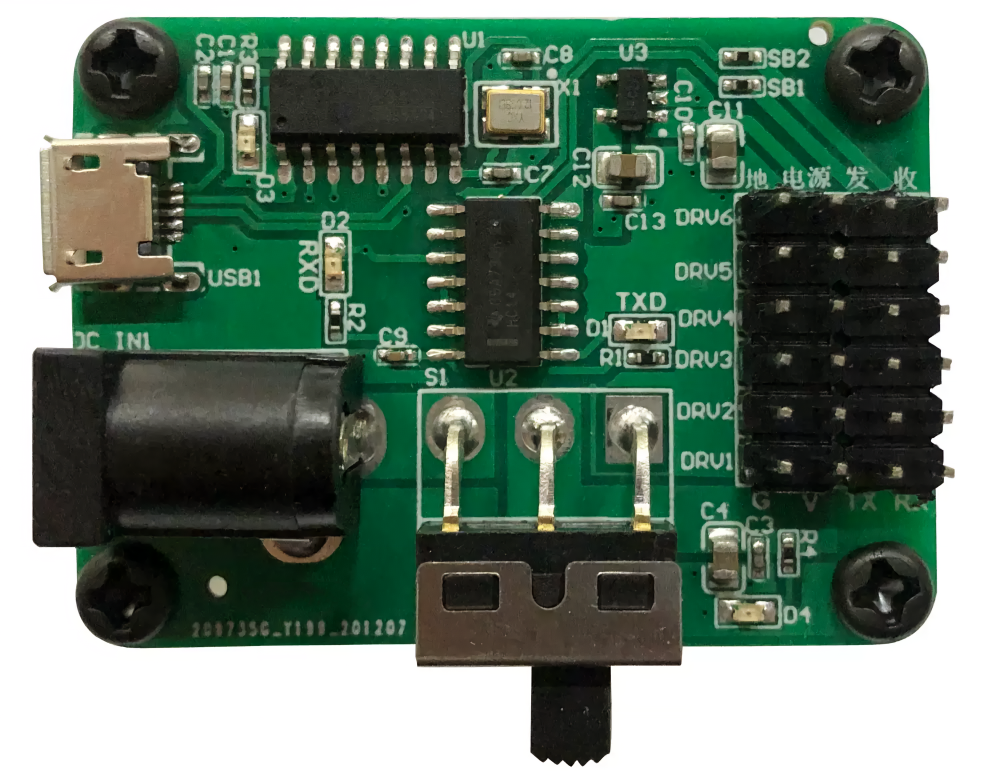

USB Converter AES-LA-31-06 Dimensions: 45 x 33 x 32 mm
Feature Overview：It implements USB-to-LVTTL (3.3V) serial communication, enabling connection to six miniature linear servo drives with distinct IDs for control, parameter modification, and status monitoring.

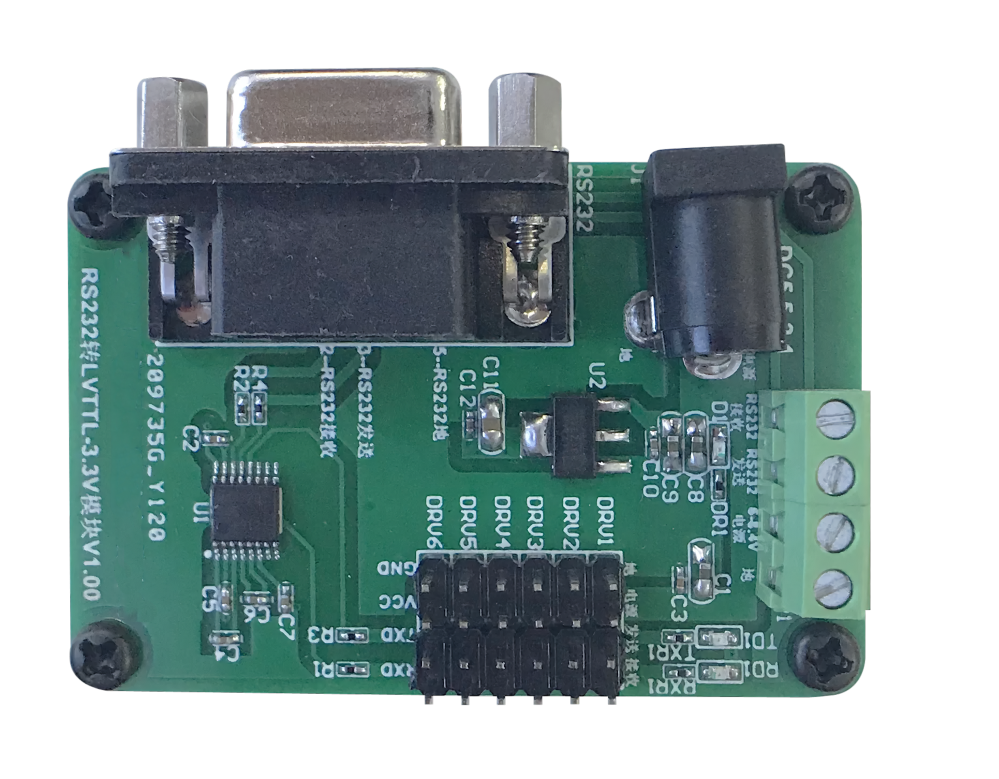

RS232 Converter—AES-LA-11-06 Dimensions: 60 x 40 x 35 mm
Feature Overview：Converts RS232 voltage levels to LVTTL 3.3V levels to control a miniature linear servo drive via RS232 serial signals.

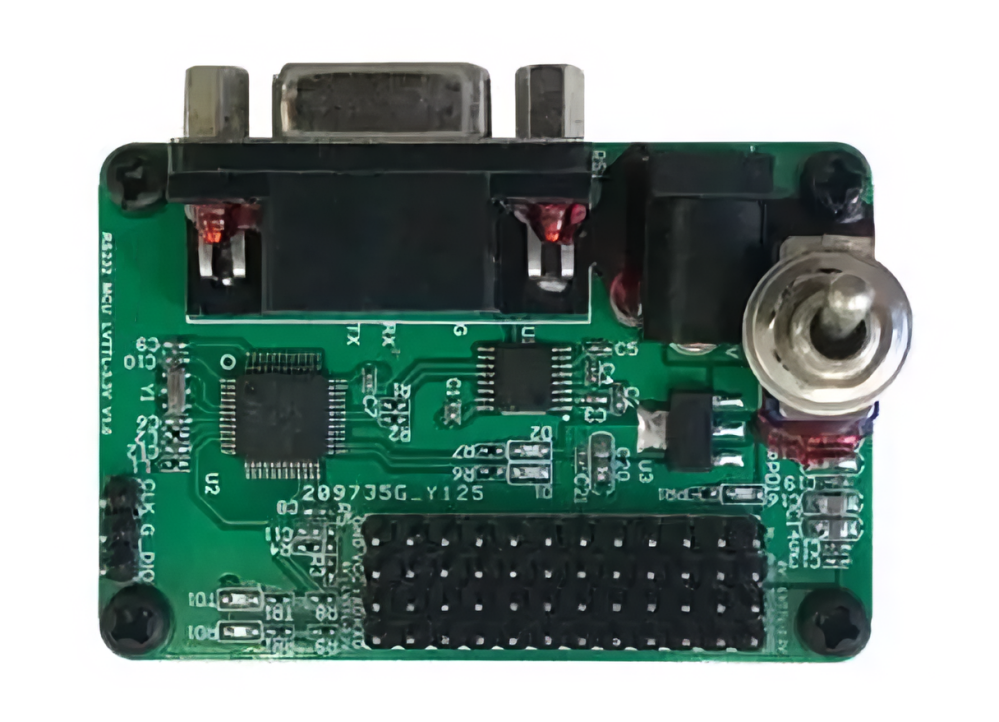

STM32 Controller—AES-LA-71-0C Dimensions: 60 x 40 x 50 mm
Feature Overview：STM32F103C8T6 controller featuring RS232 input and LVTTL 3.3V serial output, capable of simultaneously controlling up to 12 micro linear servo actuators.

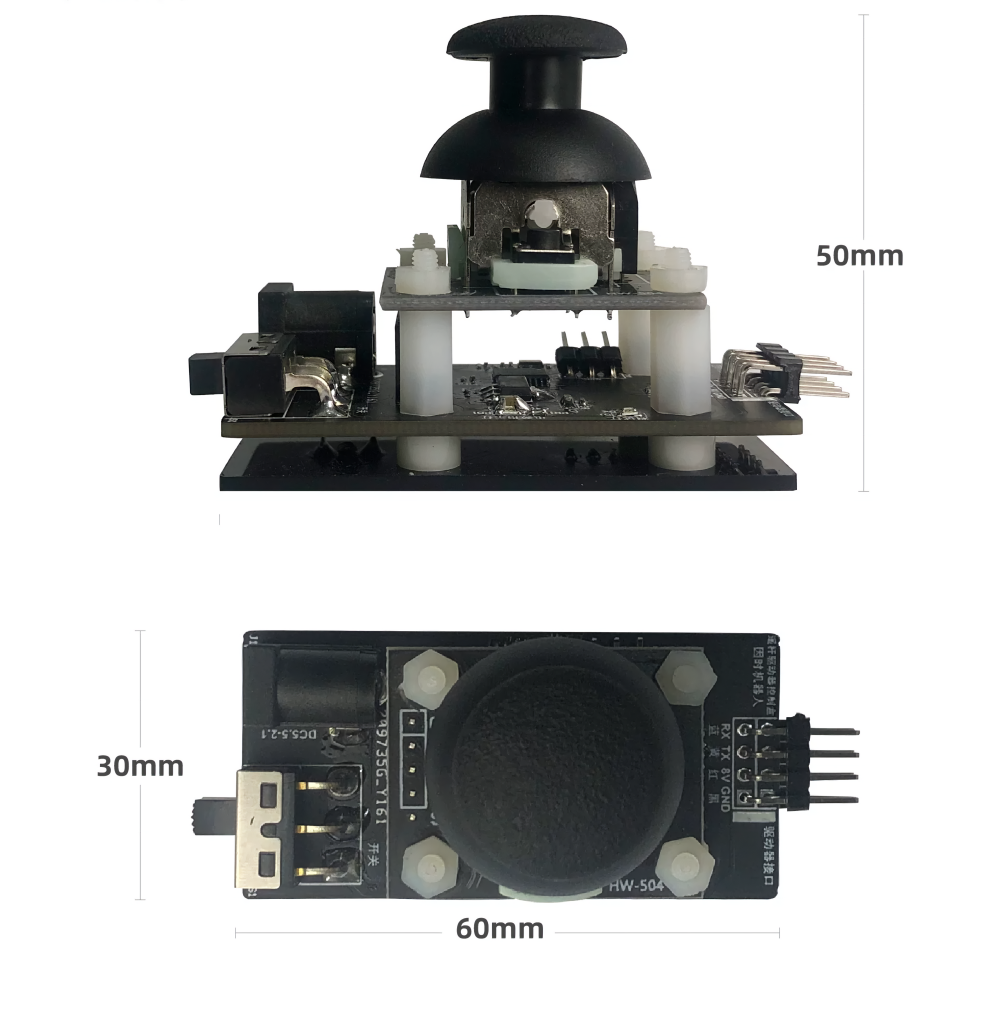

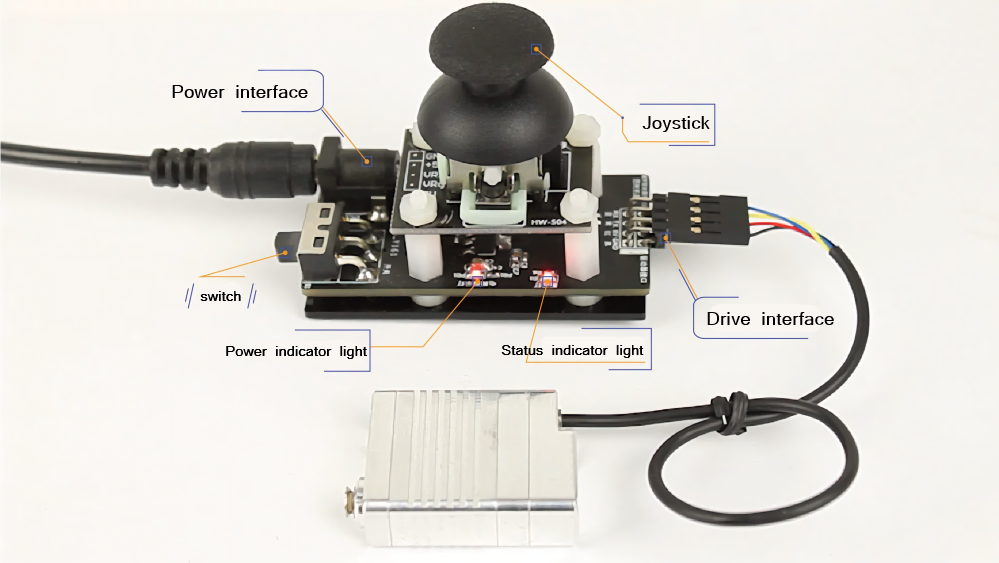

Joystick Controller—AEC-LA-B1-02 Dimensions: 60 x 30 x 50 mm
Product Dimensions
Feature Overview：The AEC-LA-B1-02 joystick controller enables rapid control of miniature linear servo actuators.
The AEC-LA-B1-02 joystick controller features two operating modes.
1、Remote Control Mode: Real-time control of the micro linear servo actuator's extension/retraction position by adjusting the joystick. The joystick features an auto-centering function.
2、Continuous reciprocating motion mode: The miniature linear servo actuator moves back and forth between two endpoints according to a fixed cycle.
Default operating mode: Remote control mode. To switch operating modes: Press and hold the joystick for at least 2 seconds.
Status indicator: The status indicator toggles its state each time the controller sends a command.
The AEC-LA-B1-02 joystick controller is open-source, allowing users to perform further development according to their needs.

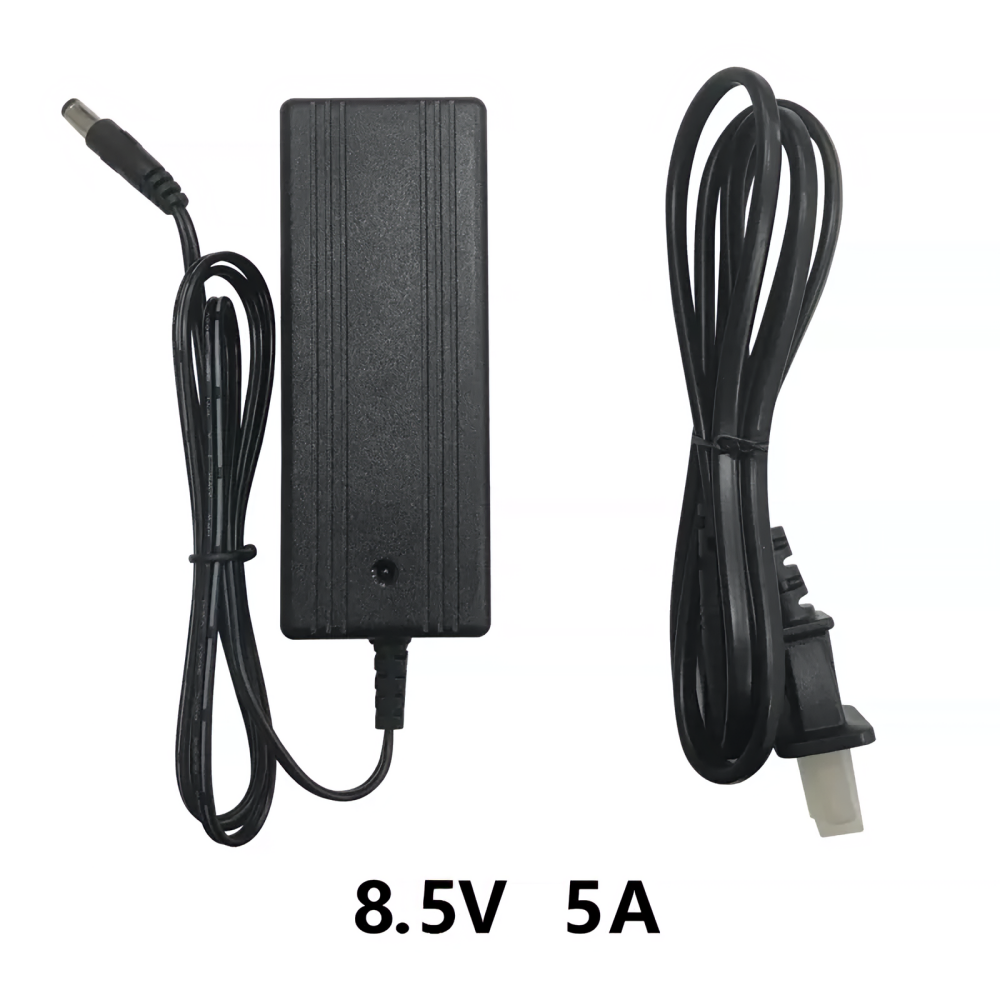

Power Adapter AEA-LA-1-11
Feature Overview：
enter：100-240V*50/60Hz 0.7A 70VA
Output：8.5V 5A

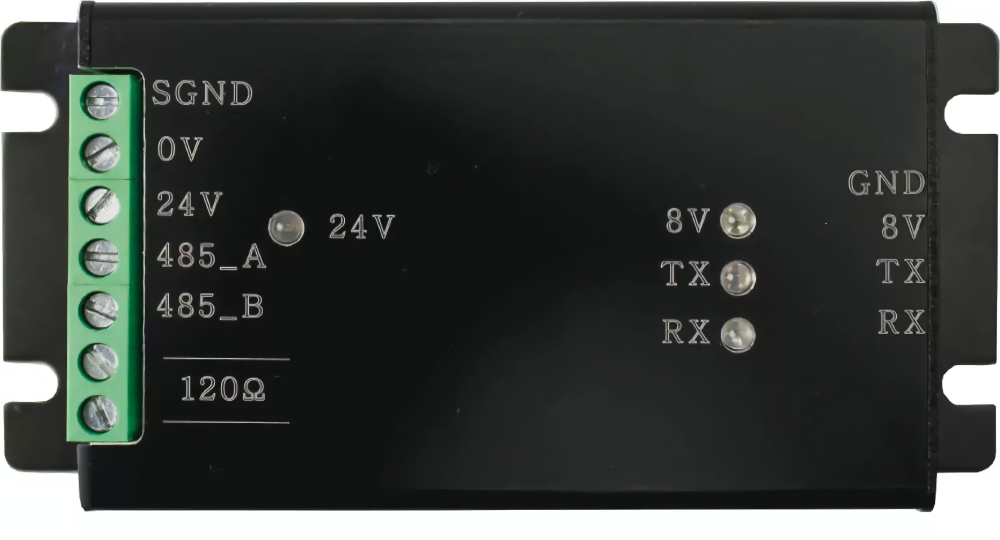

Modbus RTU Converter AED-LA-92-12MR1 Dimensions: 110 x 50 x 24 mm
Feature Overview：
1、Convert RS485 signal levels to LVTTL 3.3V levels, while utilizing the Modbus RTU communication mode—specifically, using the standard Modbus RTU protocol—to control the miniature linear servo drive.
2、24V to 8V step-down module.
