Product Description

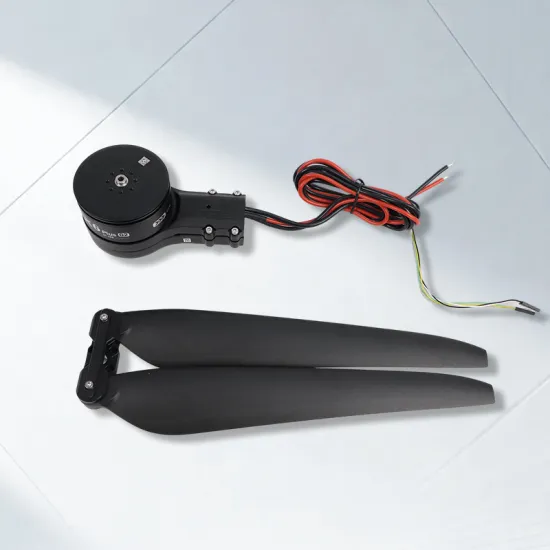

X6 Plus G2 Integrated Power Kit | Maintenance Replacement Spare Part
Integrated power spare part for plant‑protection drone workshops & industrial drone maintenance service providers. Pre‑assembled unit simplifies on‑site repair & tuning. Quick replacement for faulty power units to cut drone downtime and keep agricultural & inspection missions running. IPX6 waterproof, compatible with multi‑rotor agricultural & industrial inspection drones, easy for spare‑part stock.
Functional Features
Integrated Assembly,
Plug‑and‑Play
Pre‑integrated motor & ESC, no separate component selection.
Direct replacement for faulty power units,
save spare‑part matching trouble.

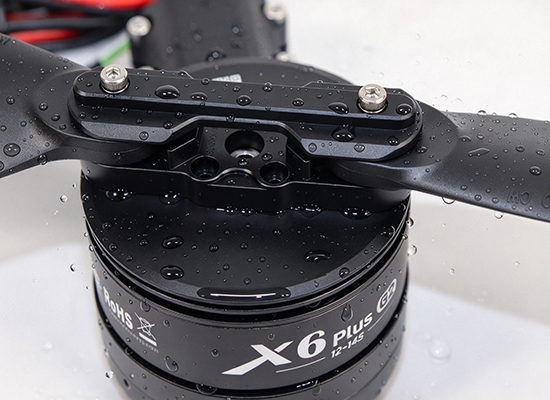

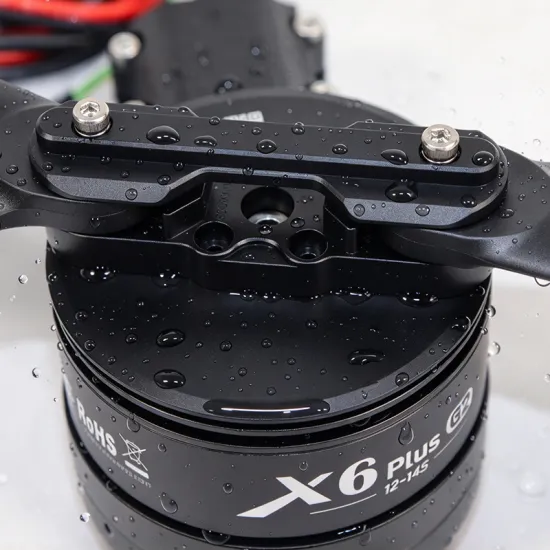

IPX6 Waterproof, Reliable for Field
& Outdoor Conditions
Resist moisture, dust and rain in farm field.
Robust performance after replacement, lower re‑repair rate.
Dual Protocol Support:
DroneCAN / HWCAN
Fits mainstream agricultural & industrial multi‑rotor drones.
One spare‑part covers multiple models, reduce stocking SKUs.

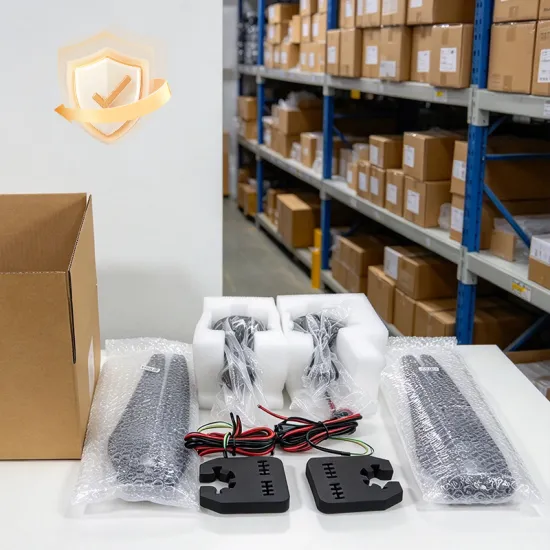

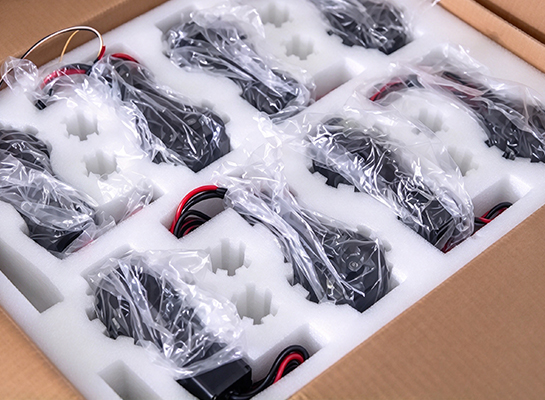

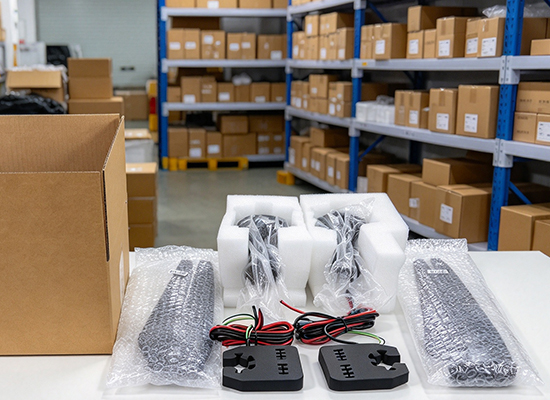

Standard Complete Pack, Convenient for
Warehouse Stock
Independent full‑set package, easy for inventory checking &
stock management for repair workshops.

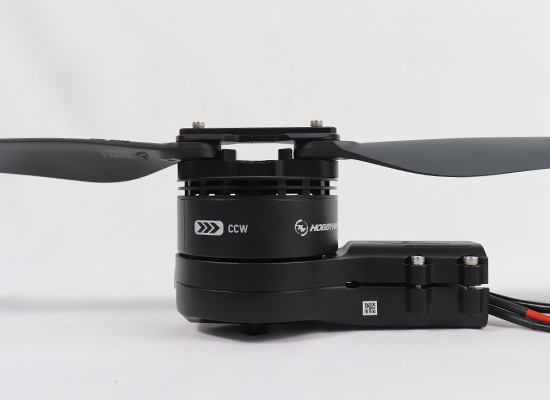

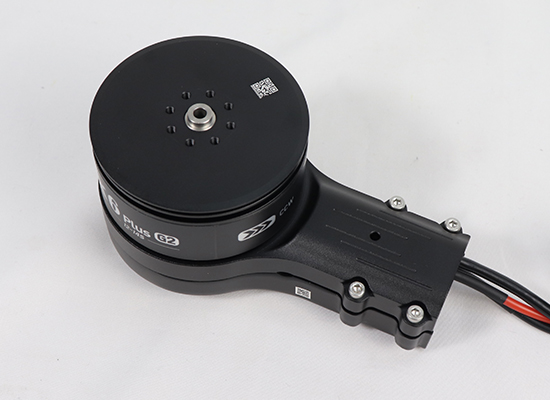

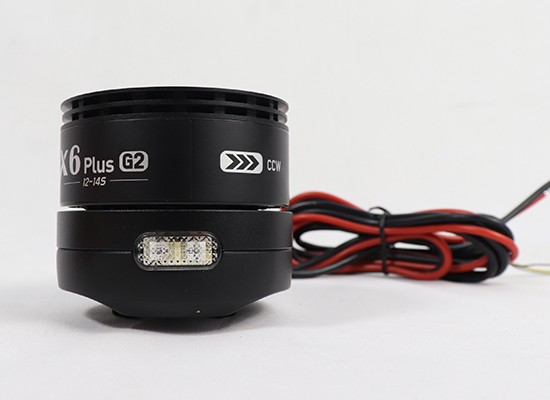

Product Display

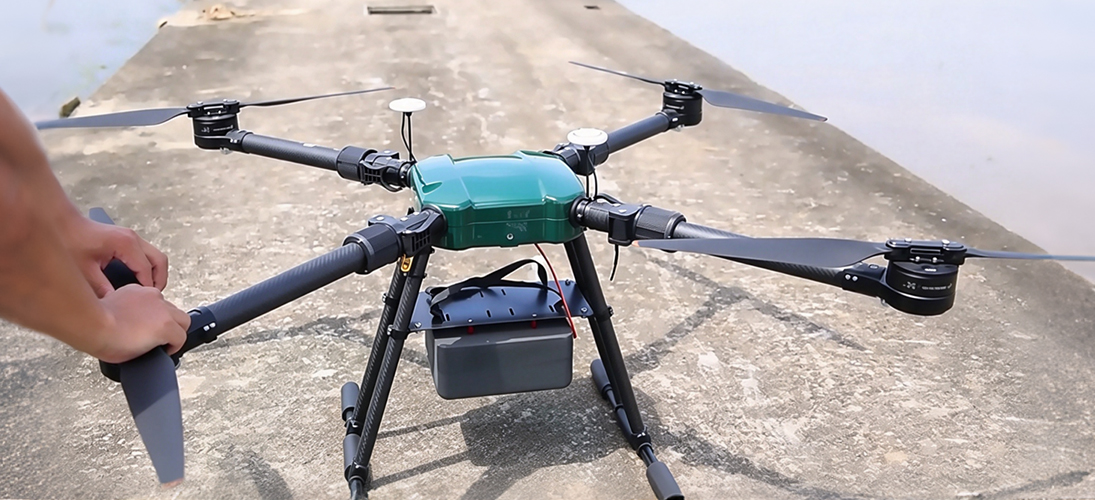

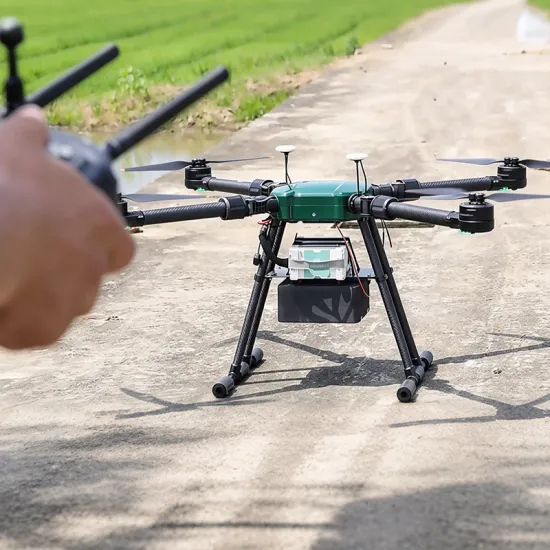

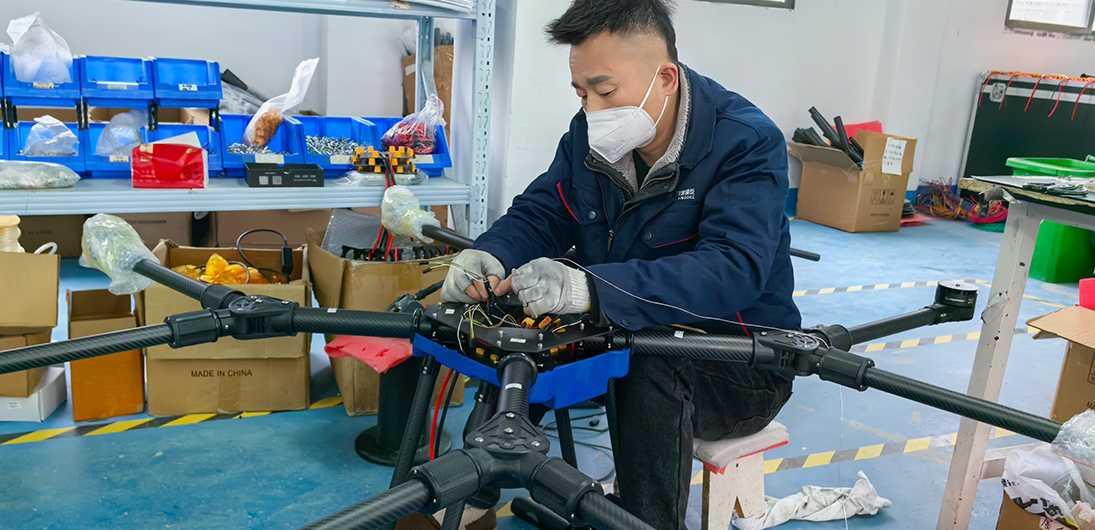

Application
Target Customers & Applicable Models and Scenarios
👉Target Customers: Plant‑protection drone repair workshops, industrial drone maintenance service providers, drone repair stores
👉Application Scenarios: Replace damaged power unit of agricultural drone; replace faulty motor / ESC for industrial inspection drone; power replacement for returned repairing drones
👉Compatible Drones: ≤25kg small‑medium multi‑rotor plant‑protection drone, light‑load industrial inspection multi‑rotor dron

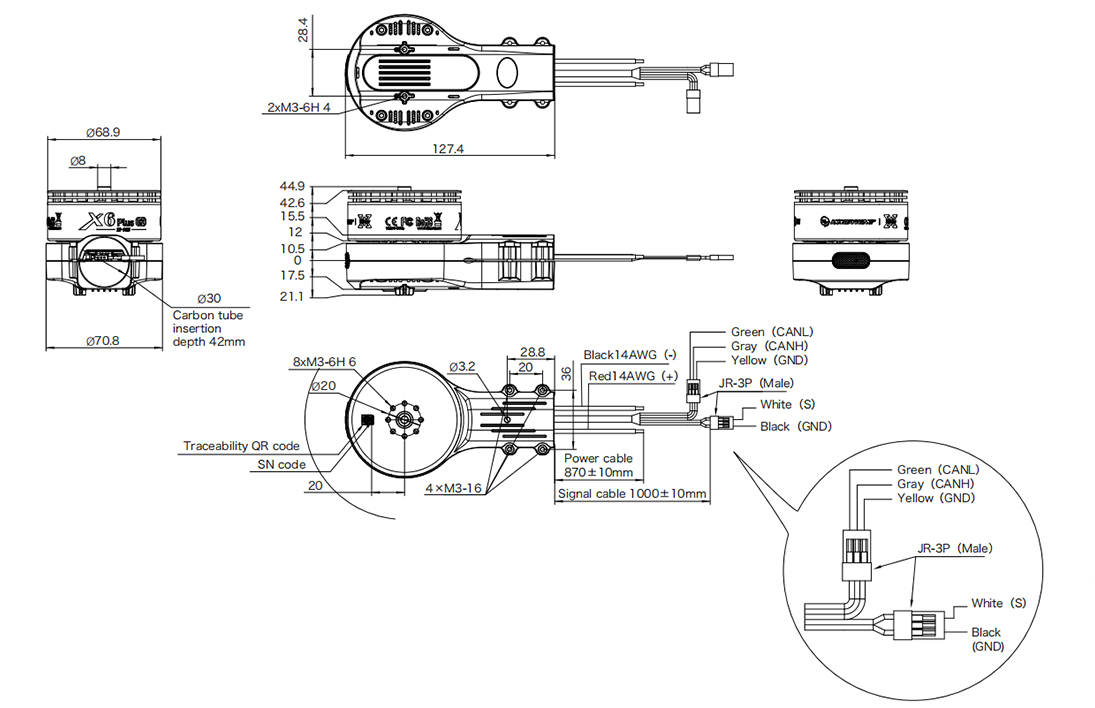

Dimensional Drawin
X6 Plus G2 | Dimension Diagram
Propeller Drawings

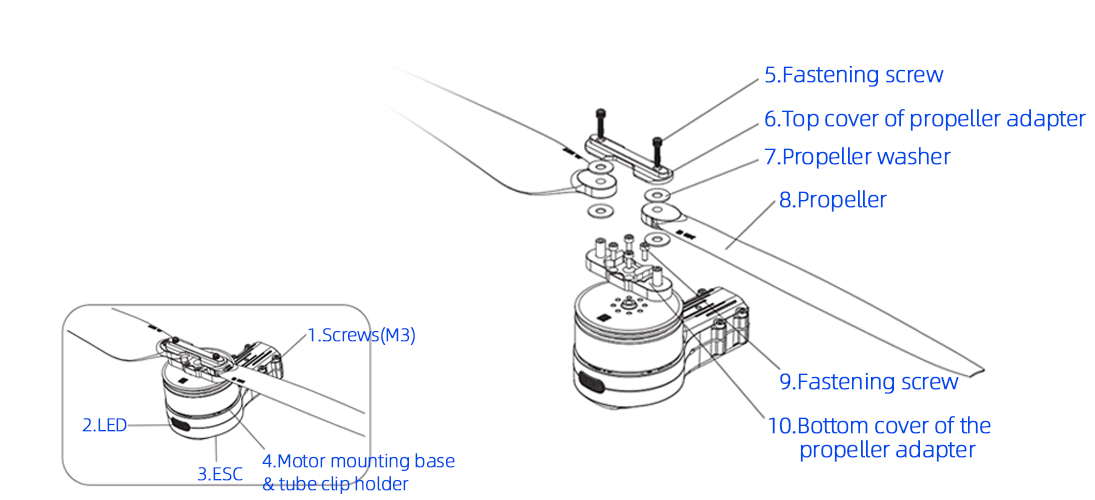

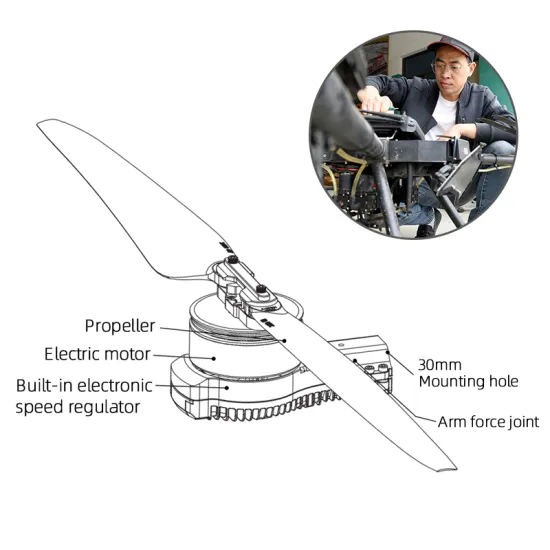

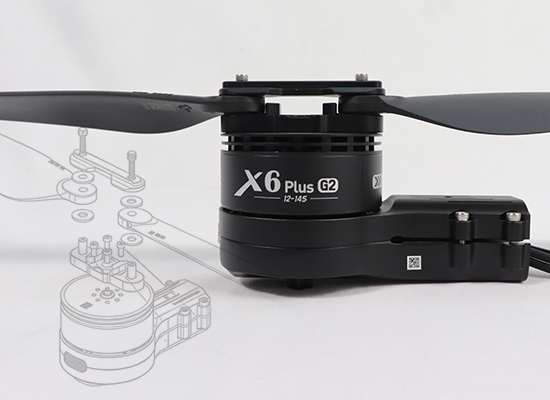

Propulsion Composition
1. Screws (M3)
2. LED

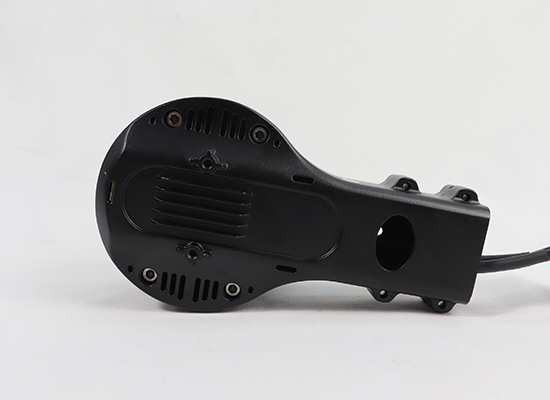

3. ESC
4. Motor mounting base & tube clip holder
5. Fastening screw
6. Topcoverofpropelleradapter
7. Propeller washer
8. Propeller
9. Fastening screw
10. Bottom cover of the propeller adapter
Product parameters
Product Name | X6 Plus G2 | |
All-in-one thrust system specification | Max Thrust | 12.5 kg(Sea level) |
Recommended takeoff weight per axis | 6kg (Sea level) | |
Efficiency of recommended takeoff weight | 7.3 g/W | |
Compatible lithium battery | 12S~14S(LiPo) | |
Rated voltage | 14S-54V / 12S-48V | |
Input voltage | 18~63 V | |
Tube outer diameter | D30 mm | |
Weight(with cable and Props) | 748 g* | |
Cable specification | Power cable: 14AWG 870 mm* Signal cable: 10000 mm* | |
Operating temperature | -20~50 ℃ | |
Ingress Protection | IPX6 | |
Rated output power (Max continuous) | 705 W | |

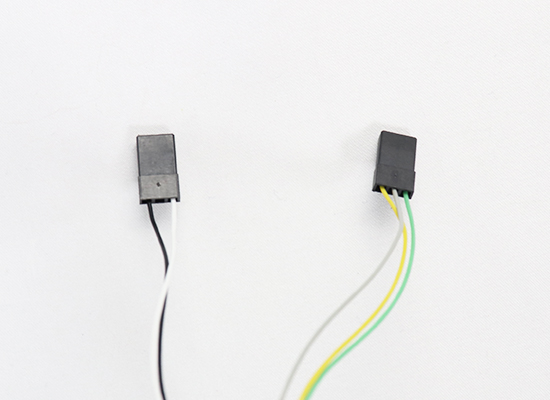

Pinout | Black-GND, White-PWM & Yellow-GND, Gray-CH, Green-CL | |
DataLink Version | DataLinkBox G3 | |
ESC specification | Rated voltage | 14 S / 12 S |
Communication protocol | Cyphal(UAVCAN) | |
Peak current (3 seconds) | 80 A (3s) | |
Continuous current | 25 A | |
Throttle travel calibration | Not supported | |
Double throttle signal | PWM + CAN | |
Operating pulse width | 1050~1950 μs | |
Failure storage & Log | Supported | |
Motor specification | KV | 150 KV |
Slot& Pole | 28N24P | |
Stator diameter | 62x18 mm | |
Motor diameter | 68.9 mm | |
Propeller specification | Model | MFP 24x8.0 (Folding propeller) |
Total Weight | 107 g* | |
Material of Props | Carbon fibre-reinforced nylon composite material | |
Single Weight | 33.5 g* | |
* Subject to the actual product. | ||
X6 Plus G2-12S & MFP 24x8.0 Load Performance Parameters
X6 Plus G2-12S & MFP 24x8.0 Thrust Test Data | ||||||||||
Voltage(V) | Propeller | Throttle(%) | Thrust(g) | Current(A) | Power Input(W) | Speed(RPM) | Efficiency(g/W) | Torque(N·m) | Power Output(W) | Temperature(℃) |
46V(12S LiPo) | MFP 24x8.0 | 33% | 1736 | 3 | 137.7 | 2169 | 12.6 | 0.51 | 115.8 | 68 |
35% | 2017 | 3.6 | 167.2 | 2327 | 12.1 | 0.59 | 143.8 | |||
37% | 2318 | 4.4 | 201.7 | 2486 | 11.5 | 0.67 | 174.4 | |||
39% | 2634 | 5.3 | 241.8 | 2646 | 10.9 | 0.76 | 210.6 | |||
42% | 3131 | 6.7 | 310.4 | 2881 | 10.1 | 0.89 | 268.5 | |||
45% | 3646 | 8.4 | 388.7 | 3107 | 9.4 | 1.04 | 338.4 | |||
48% | 4174 | 10.4 | 476.5 | 3325 | 8.8 | 1.19 | 414.3 | |||
51% | 4712 | 12.4 | 572.3 | 3534 | 8.2 | 1.34 | 495.9 | |||
54% | 5256 | 14.7 | 676.2 | 3735 | 7.8 | 1.5 | 586.6 | |||
57% | 5807 | 17.1 | 787.6 | 3929 | 7.4 | 1.65 | 678.8 | |||
60% | 6364 | 19.7 | 907.1 | 4116 | 7 | 1.81 | 780.1 | |||
63% | 6927 | 22.5 | 1035 | 4298 | 6.7 | 1.98 | 891.1 | |||
66% | 7495 | 25.5 | 1171.4 | 4474 | 6.4 | 2.14 | 1002.6 | |||
69% | 8068 | 28.6 | 1316.8 | 4645 | 6.1 | 2.31 | 1123.6 | |||
72% | 8644 | 32 | 1470.6 | 4810 | 5.9 | 2.47 | 1244.1 | |||
75% | 9219 | 35.5 | 1632.5 | 4968 | 5.6 | 2.63 | 1368.2 | |||
78% | 9786 | 39.2 | 1800.5 | 5119 | 5.4 | 2.79 | 1495.5 | |||
81% | 10337 | 42.9 | 1971.2 | 5260 | 5.2 | 2.95 | 1624.8 | |||
84% | 10861 | 46.6 | 2140.4 | 5391 | 5.1 | 3.1 | 1750 | |||
87% | 11342 | 50.1 | 2301.3 | 5508 | 4.9 | 3.23 | 1862.9 | |||
90% | 11762 | 53.2 | 2445.1 | 5610 | 4.8 | 3.35 | 1967.9 | |||
100% | 12526 | 58 | 2663.7 | 5760 | 4.7 | 3.51 | 2117 | |||
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor housing temperature is measured after running for 10 minutes under 65% throttle , for reference only. | ||||||||||
X6 Plus G2-14S & MFP 24x8.0 Load Performance Parameters
X6 Plus G2-14S & MFP 24x8.0 Thrust Test Data | ||||||||||
Voltage(V) | Propeller | Throttle(%) | Thrust(g) | Current(A) | Power Input(W) | Speed(RPM) | Efficiency(g/W) | Torque(N·m) | Power Output(W) | Temperature(℃) |
54V(14S LiPo) | MFP 24x8.0 | 33% | 1785 | 2.9 | 155.7 | 2220 | 11.5 | 0.52 | 121.2 | 68 |
35% | 2077 | 3.4 | 185.1 | 2376 | 11.2 | 0.60 | 148.6 | |||
37% | 2385 | 4.1 | 220.5 | 2535 | 10.8 | 0.68 | 180.5 | |||
39% | 2706 | 4.8 | 261.5 | 2694 | 10.3 | 0.77 | 216.9 | |||
42% | 3208 | 6.1 | 332.4 | 2932 | 9.7 | 0.91 | 279.5 | |||
45% | 3731 | 7.6 | 412.7 | 3164 | 9.0 | 1.06 | 350.8 | |||
48% | 4272 | 9.3 | 501.0 | 3386 | 8.5 | 1.21 | 429.8 | |||
51% | 4826 | 11.0 | 595.9 | 3598 | 8.1 | 1.37 | 515.1 | |||
54% | 5390 | 12.9 | 697.1 | 3800 | 7.7 | 1.52 | 605.8 | |||
57% | 5960 | 14.9 | 804.6 | 3992 | 7.4 | 1.68 | 701.4 | |||
60% | 6535 | 17.0 | 918.7 | 4177 | 7.1 | 1.83 | 801.8 | |||
63% | 7109 | 19.3 | 1040.2 | 4355 | 6.8 | 1.99 | 907.1 | |||
66% | 7681 | 21.6 | 1169.4 | 4531 | 6.6 | 2.14 | 1017.6 | |||
69% | 8246 | 24.2 | 1306.2 | 4703 | 6.3 | 2.30 | 1133.3 | |||
72% | 8800 | 26.8 | 1449.8 | 4873 | 6.1 | 2.46 | 1253.7 | |||
75% | 9338 | 29.6 | 1598.2 | 5039 | 5.8 | 2.61 | 1377.5 | |||
78% | 9856 | 32.4 | 1748.4 | 5198 | 5.6 | 2.76 | 1502.0 | |||
81% | 10346 | 35.1 | 1896.4 | 5346 | 5.5 | 2.90 | 1623.8 | |||
84% | 10803 | 37.7 | 2037.3 | 5480 | 5.3 | 3.03 | 1738.3 | |||
87% | 11218 | 40.1 | 2166.1 | 5595 | 5.2 | 3.14 | 1841.0 | |||
90% | 11581 | 42.2 | 2278.1 | 5688 | 5.1 | 3.24 | 1927.7 | |||
100% | 12521 | 46.0 | 2484.2 | 5838 | 5.0 | 3.40 | 2076.2 | |||
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor housing temperature is measured after running for 10 minutes under 65% throttle , for reference only. | ||||||||||
Advantages & Guarantees
✔Pre‑delivery Test: Every unit passes power aging test, reduce DOA & rework for repair work.
✔Full‑set Shipment: One set for one power unit, no separate ordering needed.
✔Bulk Spare‑part Supply: Support bulk stock for maintenance companies, stable supply even in peak season.
✔Technical Support: Installation & wiring guide document provided, technicians can finish replacement quickly.
Contact Us
Welcome plant‑protection drone workshops & drone maintenance service providers for bulk order inquiry.
Installation manual available, please contact us for stocking quotation & lead‑time.
Whatsapp:+86 13673532183
Contact email：[email protected]
FAQ
Q: Can this power kit directly replace old faulty power unit?
A: Direct replacement available if frame & communication protocol match. Integrated design reduces spare‑part matching work.
Q: Is it suitable for field repair of plant‑protection drone?
A: IPX6 waterproof, fits field environment. Installable both in workshop and outdoor site.
Q: Do you support bulk order for stocking?
A: Yes, bulk purchasing for maintenance enterprises is supported, bulk supply terms negotiable.
