Product Description

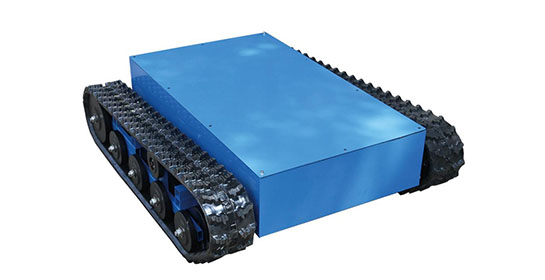

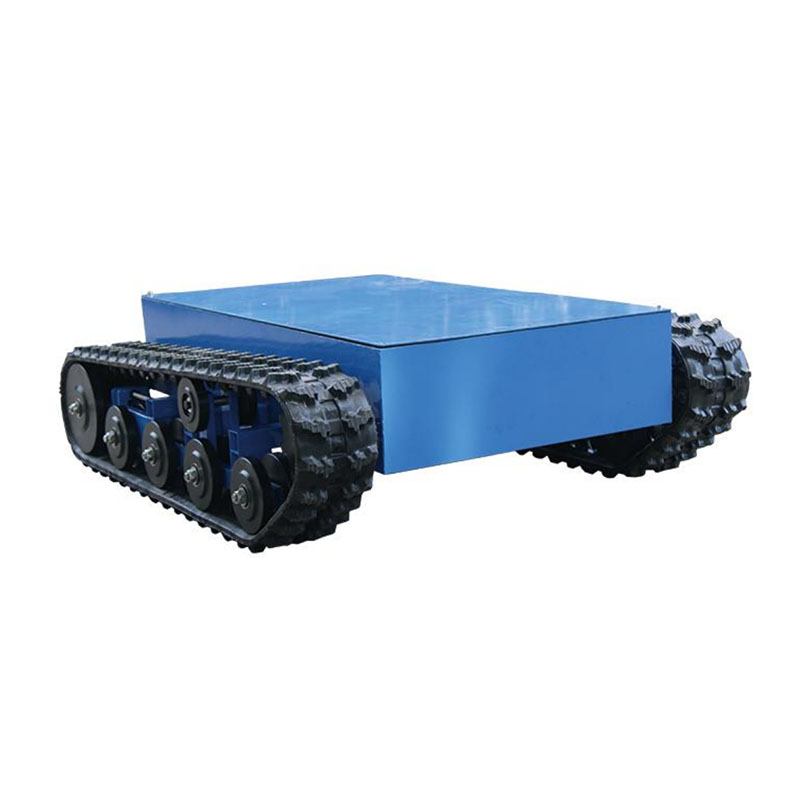

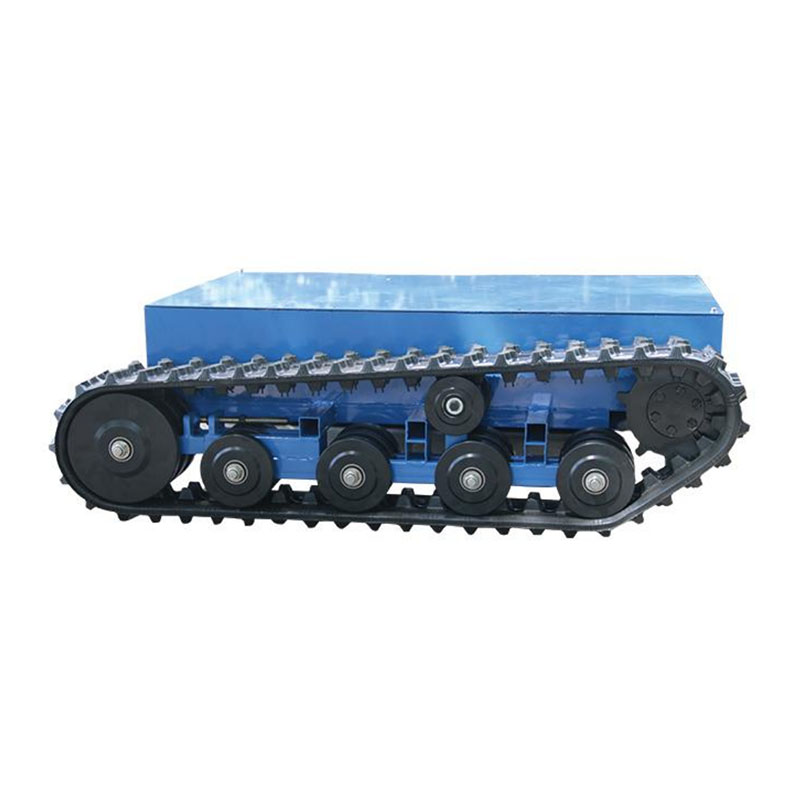

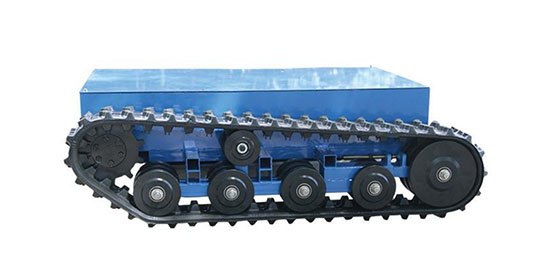

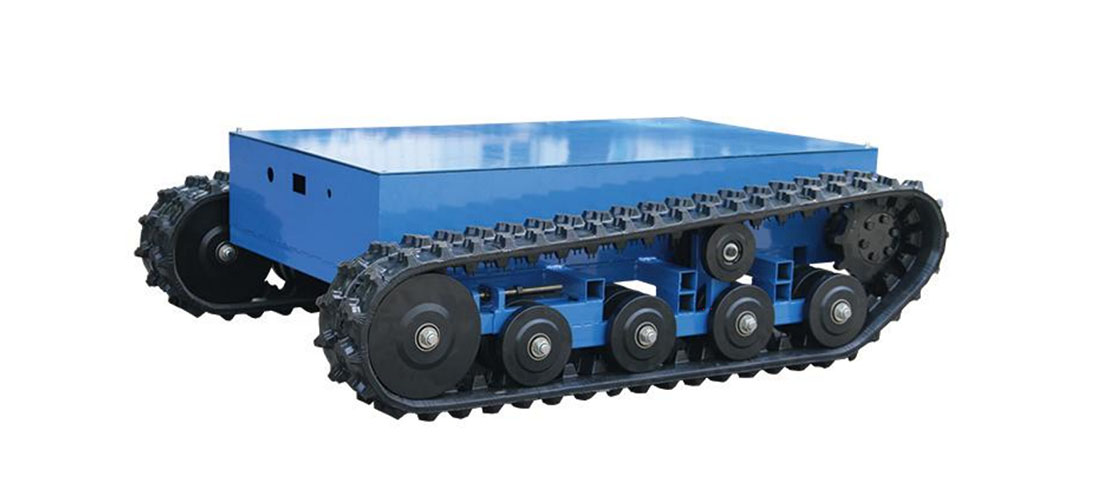

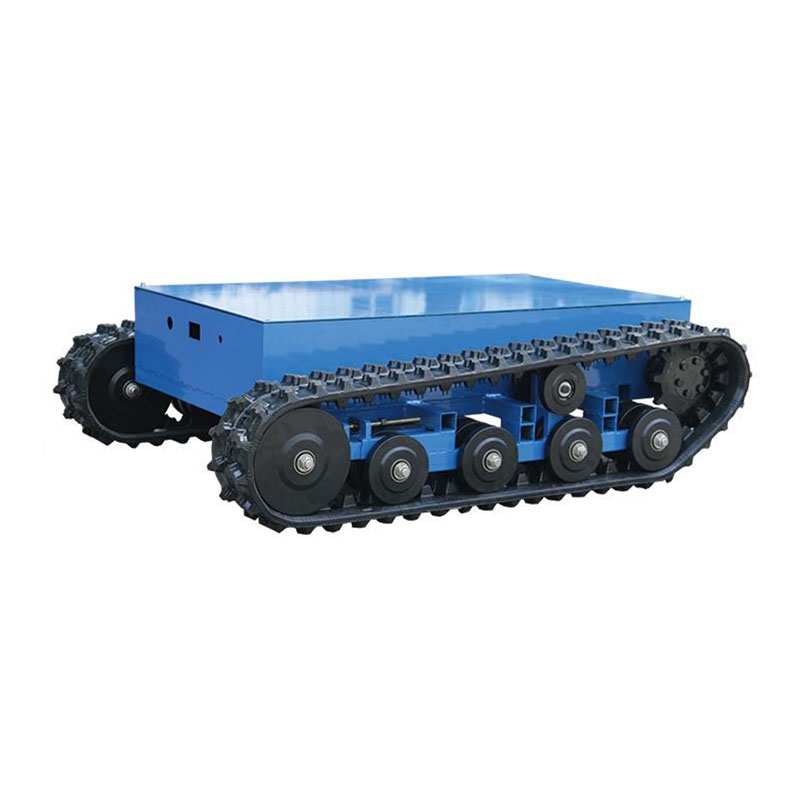

ZDDP-WJG-150 medium tracked robot chassis, from the material source to control the quality of the product, the size standard has good adaptability, strong versatility. Humanized design reasonable design, easy to use, simple operation. We only use the national standard material reliable performance, durable. High quality rubber track has the advantages of fast speed, low noise, small vibration, large traction, small damage to the road surface, and small ground pressure. Users can quickly access sensing systems and other modules through the reserved interface of the chassis to build a robot for autonomous application. The platform space is large, providing expansion conditions for secondary development.
Product Features
Low noise
The tractive force is large, the structural stiffness is large, the track adopts the mechanical matching freely, and the operation is stable and lasting.
With fine workmanship
The combination of high-tech production line and mature products creates product quality. Performance guarantee, good stability, driving force, climbing ability.
Long life
Thickened material, strong bearing capacity; In the face of complex terrain, it can also maintain stable operation and long service life.
Tracked chassis can move in all kinds of complex ground, such as sand, mud, hillside, culvert, etc., often used in the field of special robots, such as exploration, fire, special shooting, special transportation, disinfection robots in the field of epidemic prevention, security inspection robots and so on.
At present, it has involved industries: security, disinfection, agriculture, animal husbandry, photovoltaic, special industrial and agricultural research and development.

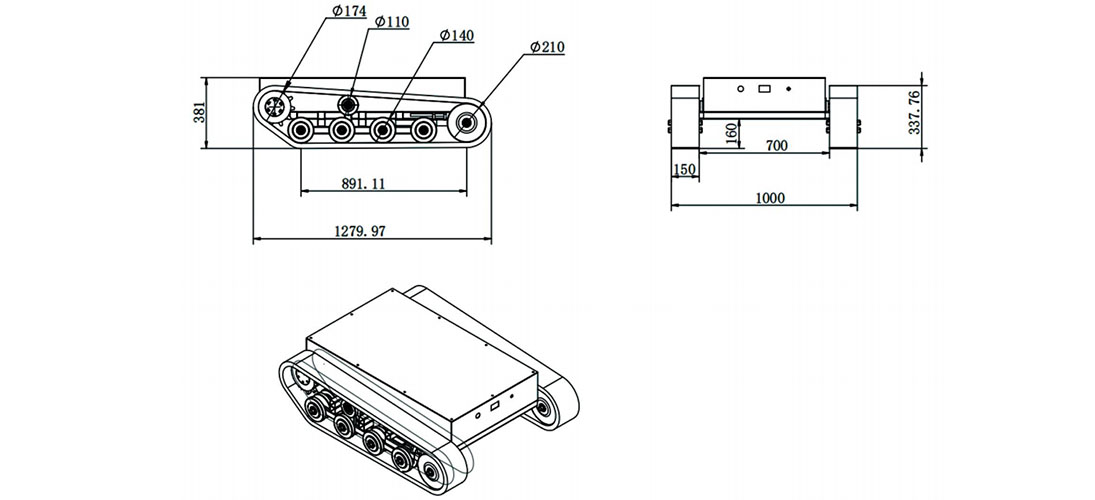

Structure Diagram
Product parameters
| name | argument | name | argument |
|---|---|---|---|
| Chassis length | 1250mm | Chassis width | 1030mm |
| Chassis height | 400mm | Track width | 150mm |
| Travel speed | Conventional 0-3km/h or so, can also be customized | Track pitch | 60mm |
| Climbing ability | 30° slope | Track material | Rubber track (Grade A natural rubber with Kevlar fiber) |
| Waterproof class | IP55 | Motor power | 48V1.5KW-3000 RPM (DC brushless motor) |
| Braking mode | Motor braking | surface | Spray treatment |
| Gear train material | Ultra high molecular weight polyethylene | Main material | Carbon steel/aluminum |
| Turning radius | 360° turn in place | Control parameter | Dual drive controller (CAN/PWM/232/485) |
