YA-310 high precision sensor encoder
Split installation is convenient, the line outlet is flexible, and the high speed encoder
- Positioning accuracy：±2—10
- Resolution：10—23
- Repeat Positioning Accuracy：±1
- Maximum speed：7500
USD： 726-2205
ablity：Monthly Output1000
- Product Description
- Product Params
Product Description

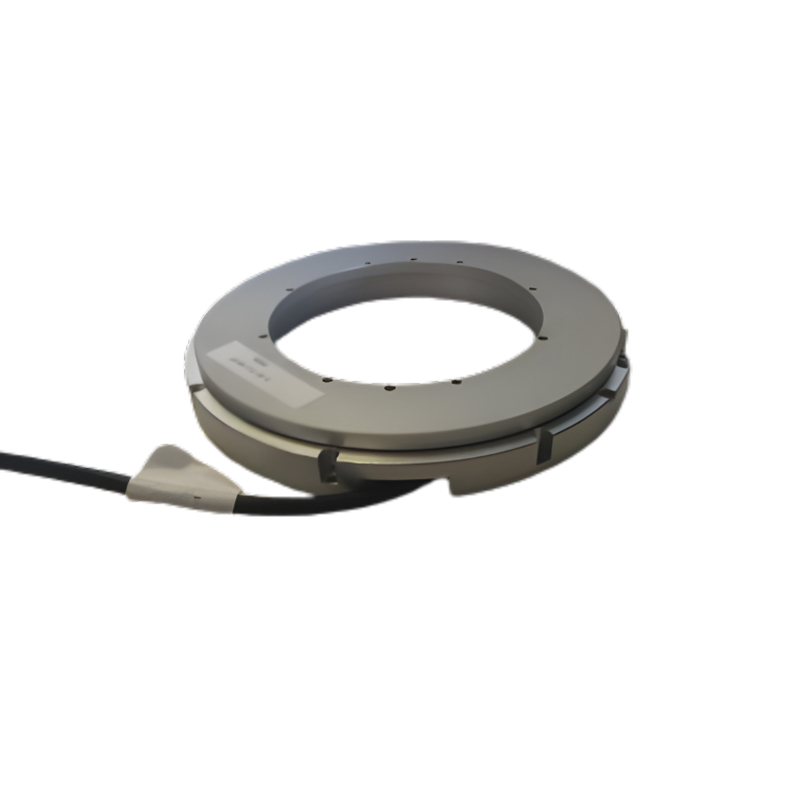

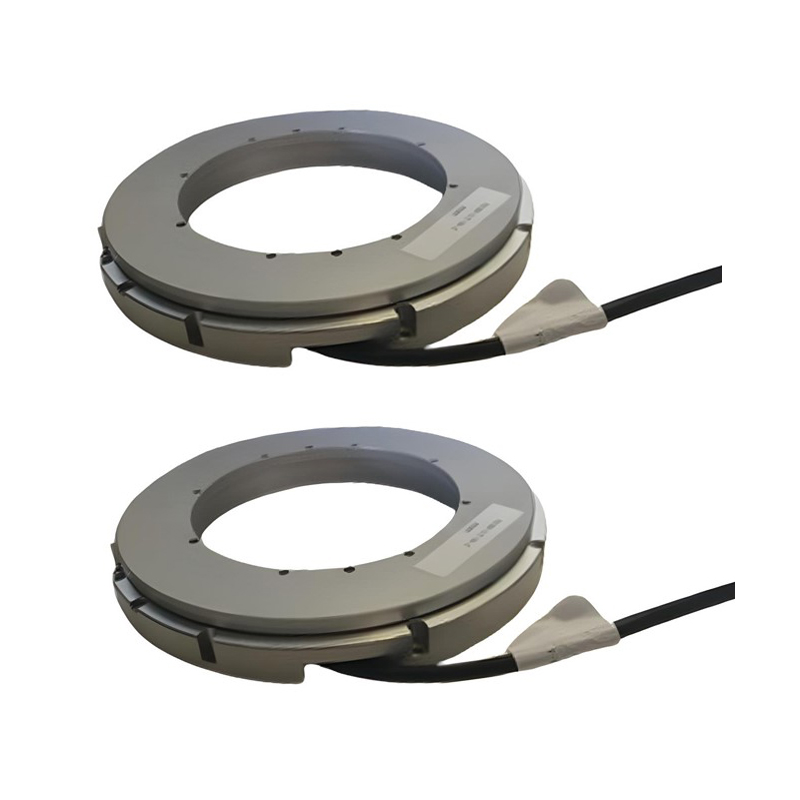

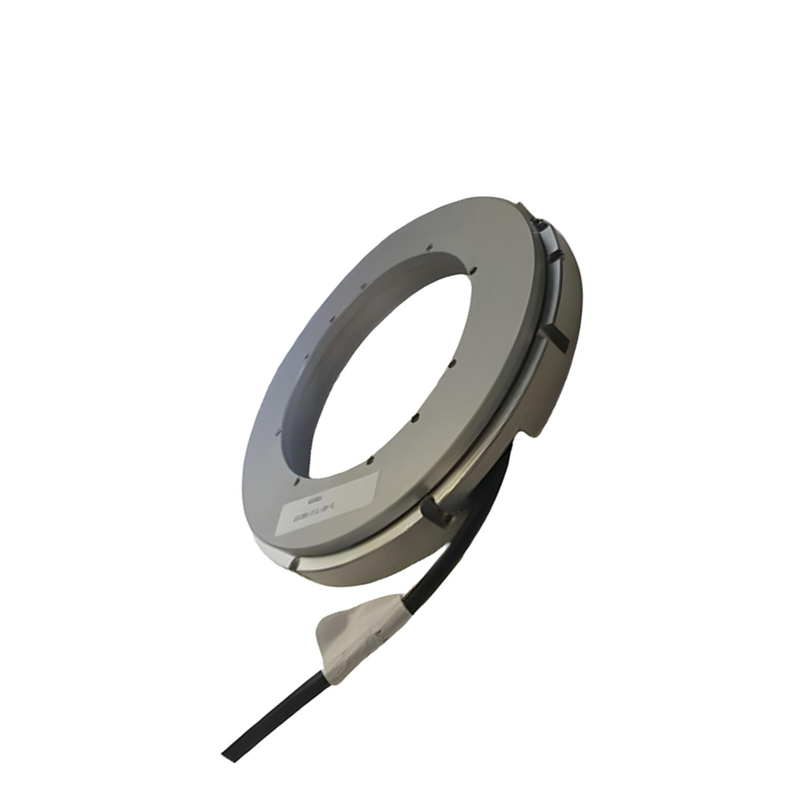

YA-310 high precision sensor encoder
YA series sensor encoder is based on the principle of electromagnetic induction detection, and consists of a stator and a rotor. Compared with photoelectric encoders, it has higher anti-pollution and anti-impact capabilities.
Its structure can be understood as a "planar rotating transformer", in which the current-carrying wires are distributed on the surface of the stator and rotor in the form of planar wires.
With absolute value detection code channel, the absolute position of the encoder can be calculated after power on.
It has strong environmental adaptability and can work normally when immersed in water.
The wire outlet method is flexible and can be from the side or bottom of the stator.
Features
Electromagnetic induction principle High precision High speed High reliability Absolute value Split type Easy to install Super strong environmental adaptability IP67 |  |
Size Chart

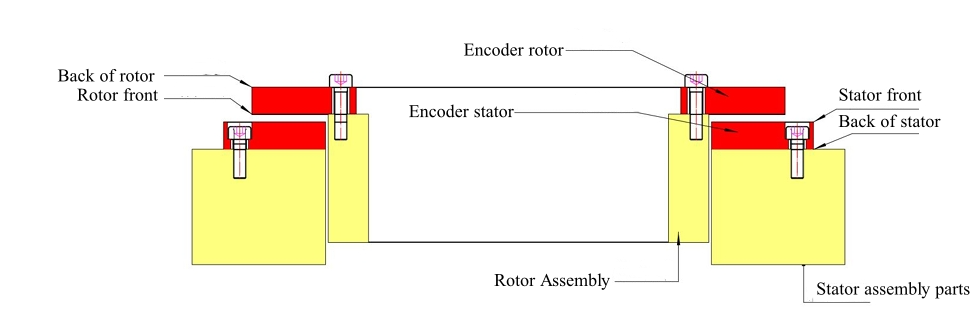

Mechanical Dimensions

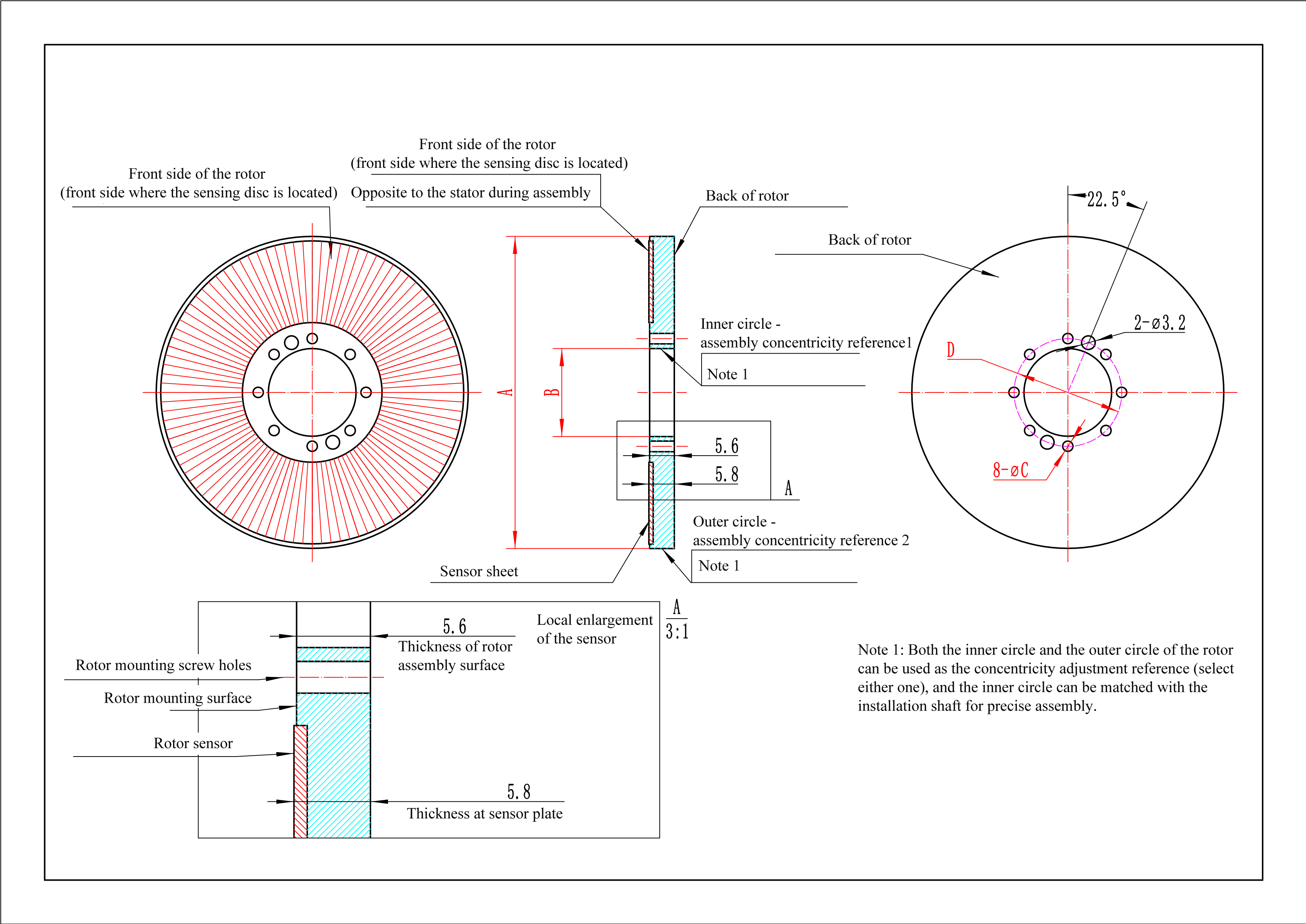

Rotor Dimensions

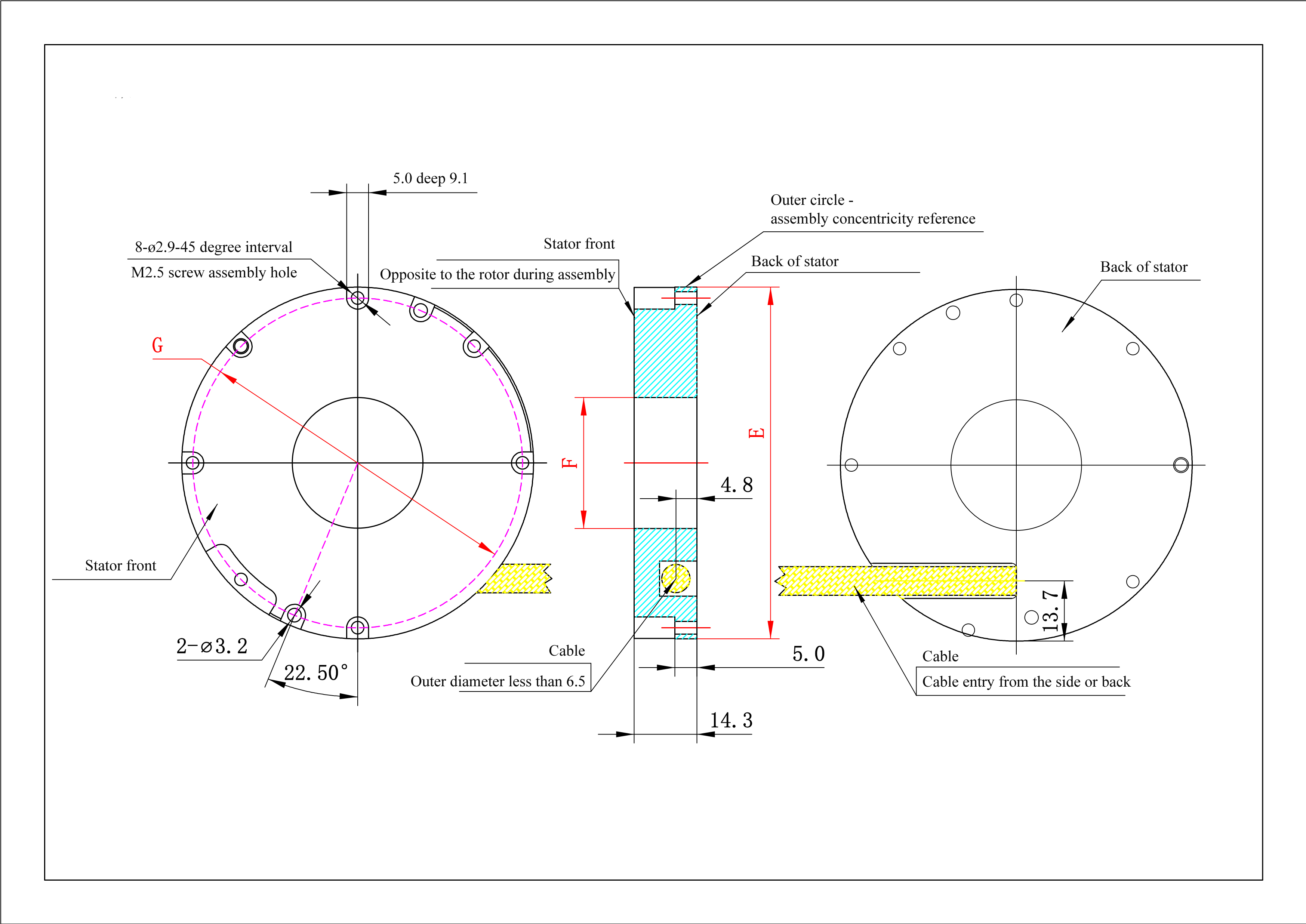

Stator Dimensions
Performance Parameters
| Absolute value | √ | |
| Resolution | 10—23 | bit |
| Repeat Positioning Accuracy | ±1 | LSB |
| Positioning accuracy | ±2—10 | arc seconds |
| Internal location update cycle | <0.01 | ms |
| Maximum speed | 7500 | r/min |
| Communication interface protocol | SSI \ BISS-C \ UART serial port (all three interfaces are based on RS422 hardware standard) | |
| Supply voltage | 5-12 or 12-30 available | V |
| Current consumption | <0.25 | A |
| Reverse power protection | The maximum reverse protection voltage of the power supply is the maximum value of the nominal supply voltage | |
| Operating temperature | -40—80 | ℃ |
| Protection level | IP67 | |
| Data valid time after power on | <1 (Data is valid 1s after the encoder is powered on. Please make sure the encoder does not rotate within 1s) | S |
| Assault | IEC 60068-2-27 100g for 11ms - axial and radial | |
| Shock | IEC 60068-2-6 20g for 10-2000Hz - axial and radial | |
| EMC electromagnetic compatibility | IEC 61000-6-2 compliant - suitable for harsh EMC environments | |
| EMC electromagnetic radiation | Complies with IEC 61000-6-4 - For use near equipment susceptible to EMI |
