Optoelectronic Singleturn absolute encoders
Optoelectronic 18-bit singleturn RS485 free protocol encoder
Product parameters
| Mechanical parameters | Electrical parameters | ||
|---|---|---|---|
| Maximum speed | 6000 rpm | Operating voltage | 10-30Vdc (5Vdc can be customized) |
| Spindle load | Axial force 40N, radial force 100N | Current consumption | < 50mA (24Vdc) no load |
| Shock resistance | 1000m/s²(6ms), equal to 100g | Output signal | RS485 free protocol |
| Vibration resistance | 200m/s² (10-2000Hz), equal to 20g | Linear resolution | 1/262144FS |
| Allowable axial movement | ±1.5mm | IP Rating | IP65 or IP68 |
| Allowable radial runout | ±0.2mm | Positioning accuracy | 0.01° |
| Appearance and structure | 60mm outer diameter, solid shaft, blind hole shaft | Operating temperature | -40℃~100℃ |
| Connection Type | 6-core shielded cable or aviation plug | Storage temperature | -40℃~85℃ |
Wiring parameters
| Function | Vcc | GND | RS485 A | RS485 B | Set (optional) | Setting Allow | Shield |
|---|---|---|---|---|---|---|---|
| Color | Brown | White | Green | Yellow | Gray | Blue | Net (thick red) |

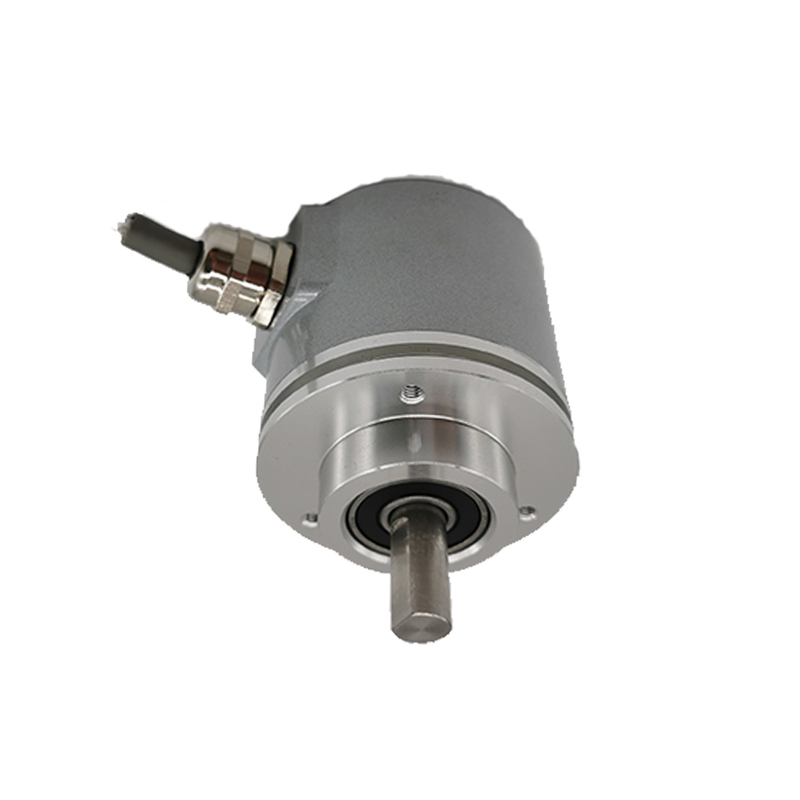

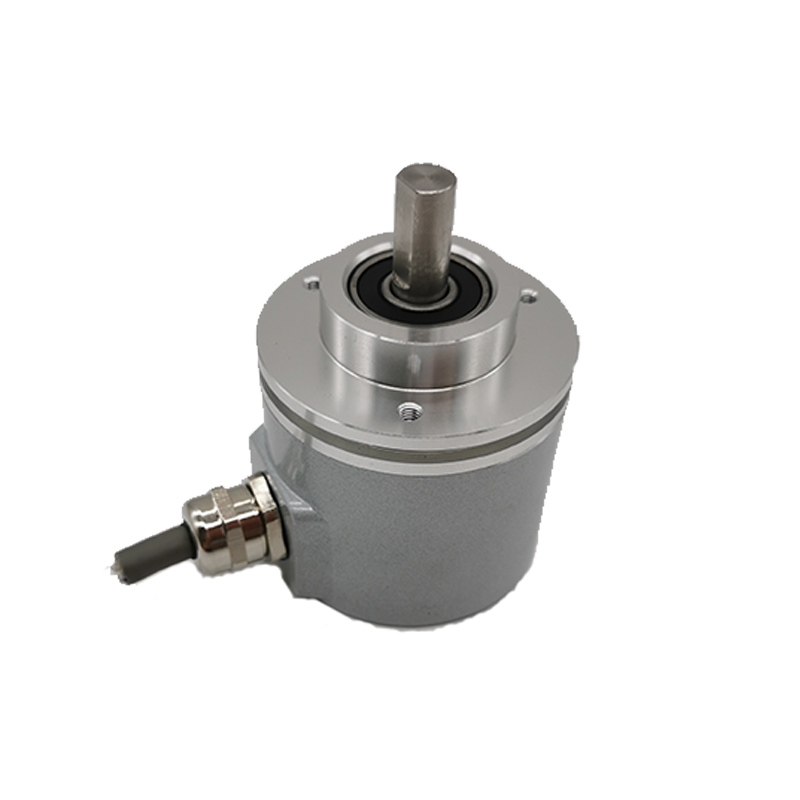

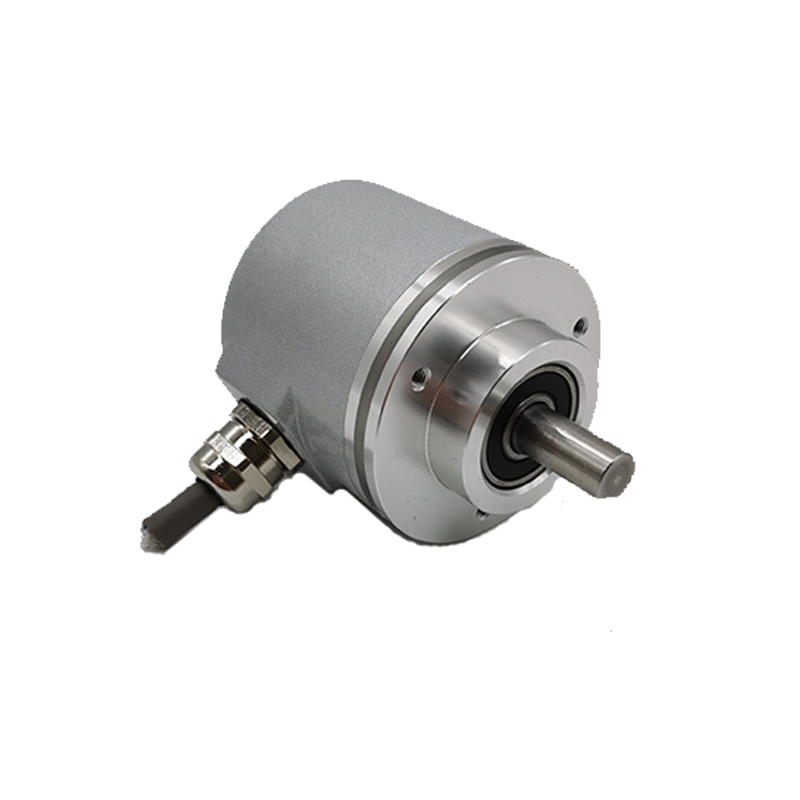

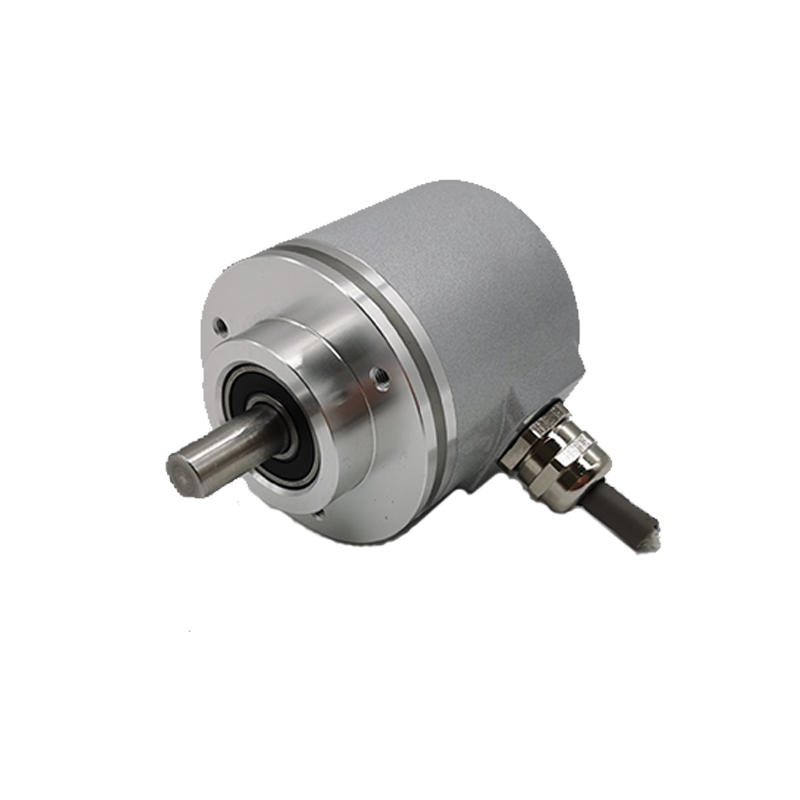

Product Views
Output mode: photoelectric
Output signal: RS485
Output type: single-turn absolute value
Dimensions: 60mm
Application industry: industrial automation
Product structure: solid shaft, through hole
Outer diameter (mm): 60mm
Aperture/shaft diameter (mm): 6mm, 8mm, 10mm, 8-15mm aperture
Resolution (CPR): 12-bit, 13-bit, 14-bit, 18-bit
Working voltage: 10~30V or 5V
Output signal: RS485 free protocol

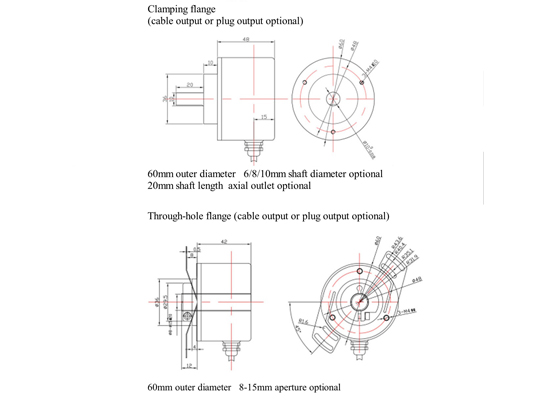

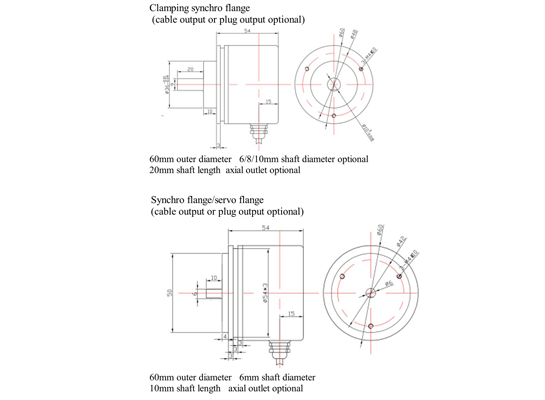

Size & Interface
Application Cases
The products can be widely used in my country's vehicle control systems, metallurgical control systems, port machinery control systems, ships, aerospace, textile machinery, petroleum machinery, mining machinery, elevators, machine tools, water conservancy, precision machinery, automobile and motorcycle industries, as well as other factory automation and process control related industries.
