Product Description
The precise chassis height combined with a reasonable power motor makes the chassis have the advantages of low center of gravity, good passability, and smooth operation under heavy load suspension.
Functional Features
1.Strong traction force
The structure has high strength and stiffness, and the tracks are made of construction machinery, ensuring smooth, stable, and long-lasting operation
2.Good shock absorption and stability
The metal suspension system has low vibration, good stability, and effectively protects the chassis
3. Stable operation
Good driving performance, built-in low-speed high torque motor walking reducer
4.thick tracks
Built in steel wire wrapped plug-in steel plate, with a long service life and stronger grip
Widely used:
Applied to tracked chassis in military, engineering machinery, agricultural machinery, scientific research, inspection, firefighting robots and other fields.

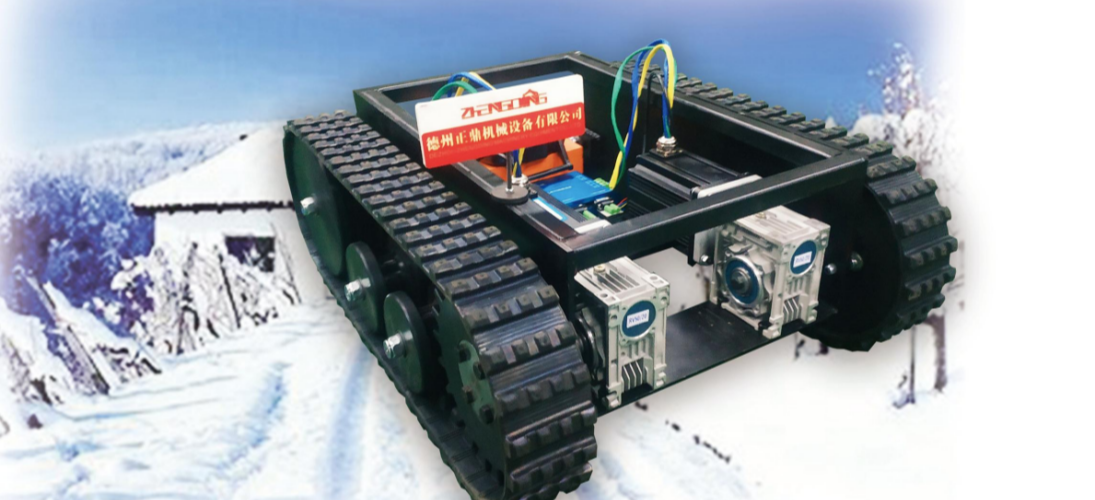

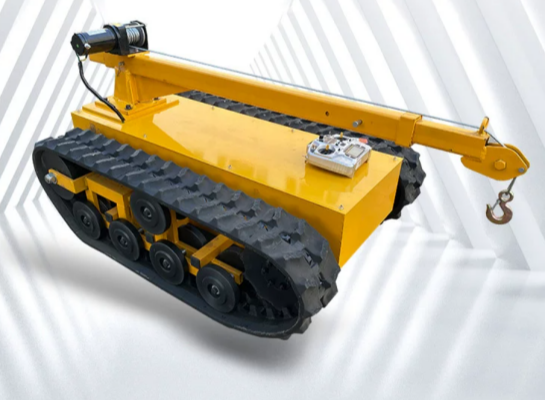

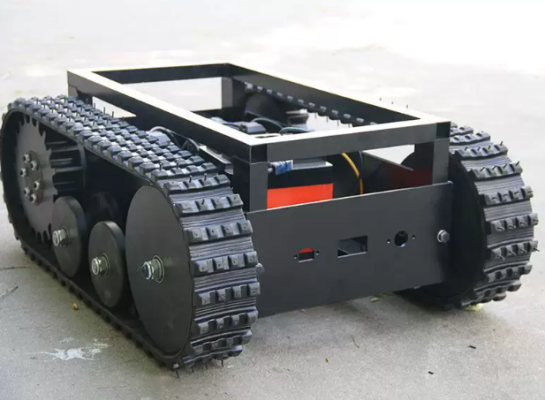

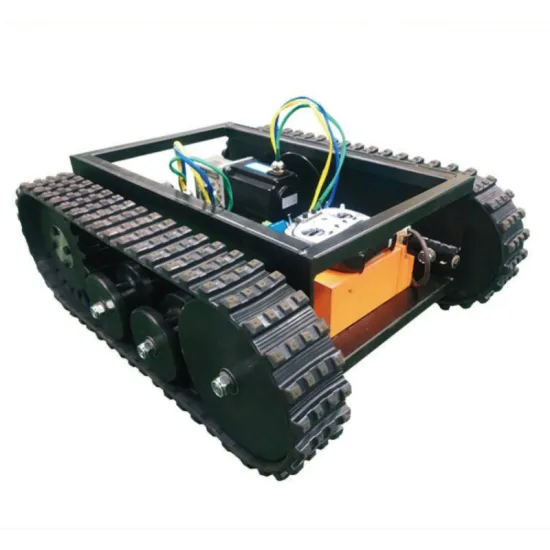

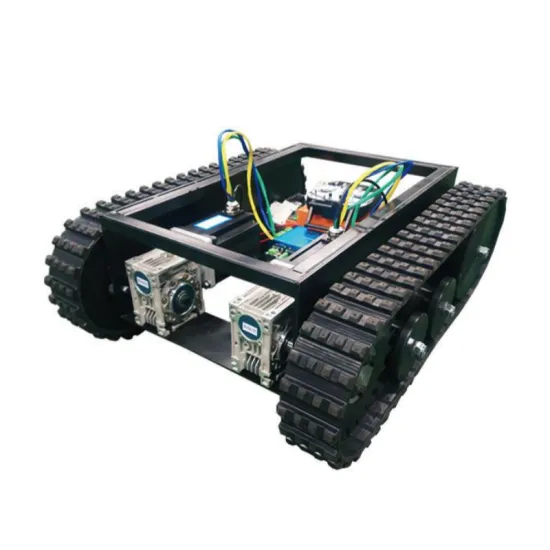

Product Real Shot

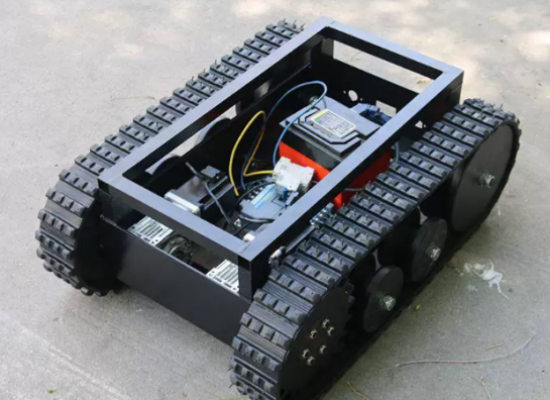

Open frame, easy for modification & integration

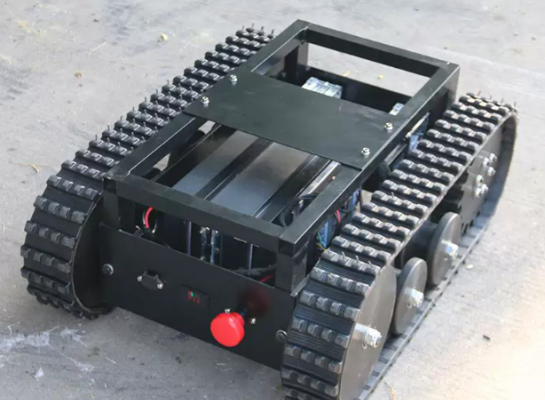

Integrated control system with E‑stop, plug‑and‑play

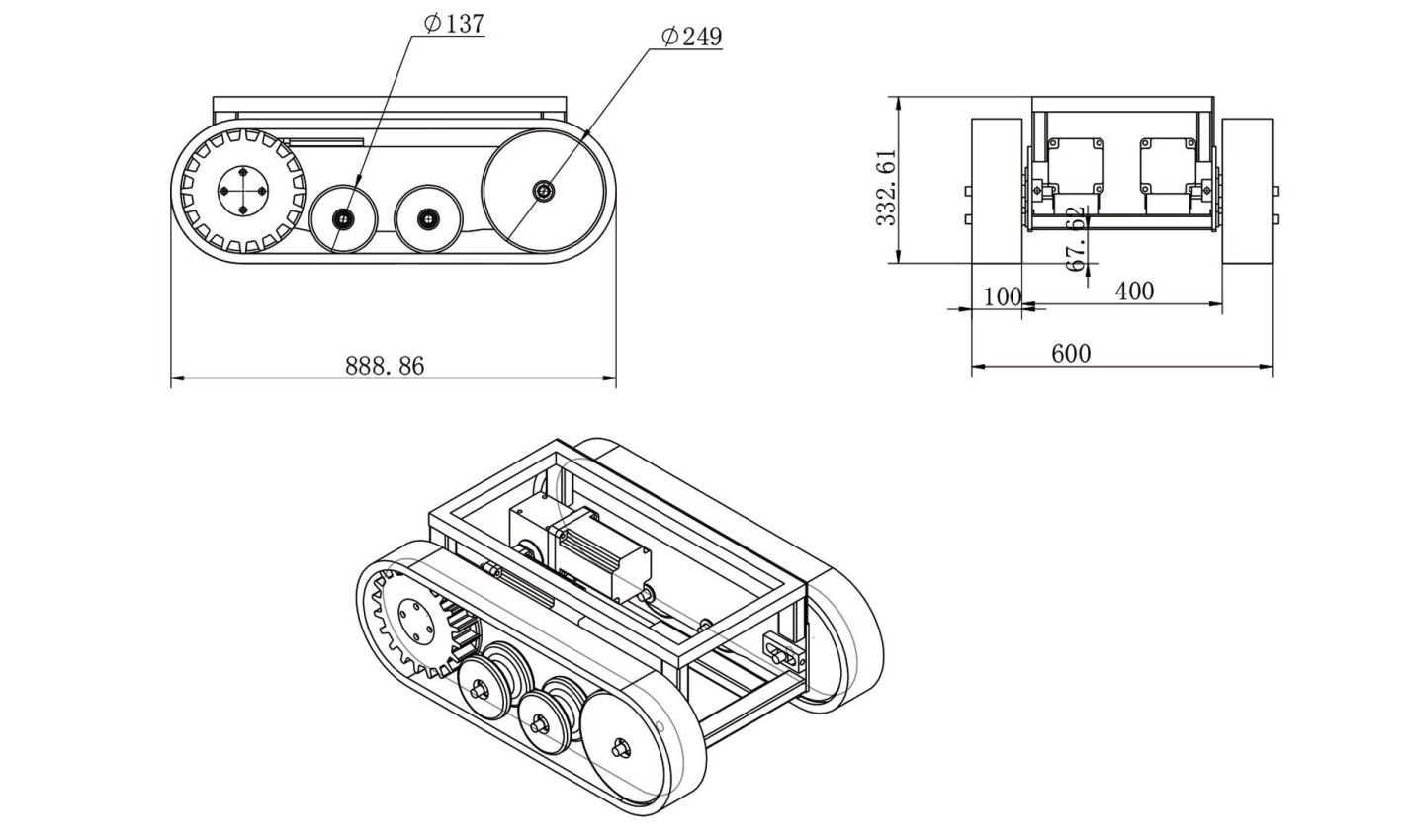

Dimensional Drawin
Product parameters
Parameter | Value |
Chassis Model | ZDDP-KJDP-100 |
Chassis Dimensions | 860MM*685MM*320MM (L*W*H) |
Surface | Plastic Spraying |
Main Material | Carbon Steel / Aluminum |
Braking Method | Motor Braking |
Waterproof Rating | IP55 |
Climbing Ability | 30° Slope |
Running Speed | Standard 0~3KM/H, Customizable |
Turning Radius | In-situ 360° Rotation |
Reducer Parameters | RV50-20 (Worm Gear Reducer) |
Motor Parameters | 48V1.5KW-3000RPM (Brushless DC Motor) |
Control Parameters | Dual-drive Controller (Supports CAN/PWM/232/485) |
Track | Rubber Track (Grade A Natural Rubber, Kevlar Fiber Reinforced) |
Track Pitch | 40MM |
Track Width | 100MM |
Wheel Material | Ultra-high Molecular Weight Polyethylene (UHMWPE) |
