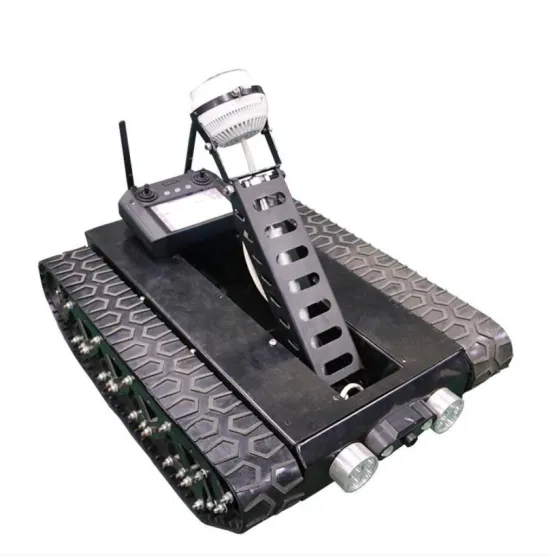

Product Description

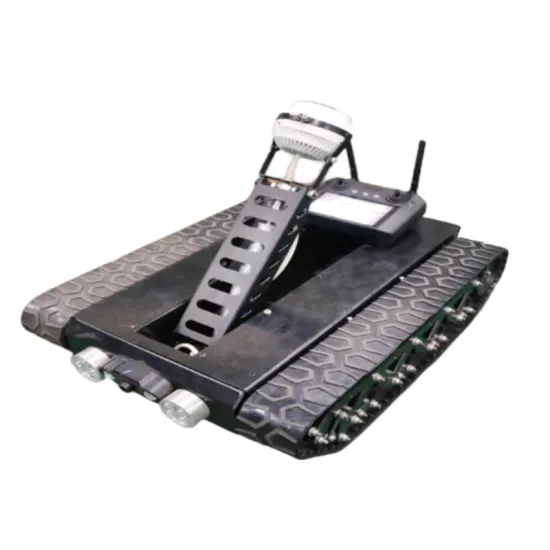

All-terrain rubber tracked chassis with smart remote control, designed specifically for pipeline inspection, easily traversing mud, gravel and other complex terrains, stable and reliable.
Functional Features
1.Powerful performance
Internally equipped with a high torque DC brushless deceleration motor, providing strong power to the chassis and overcoming difficulties.
2.Not picking terrain
Large development space and smoother driving. This is a universal tracked robot chassis vehicle, equipped with Christie independent suspension design for better heavy-duty shock absorption.
3.Thickened material
The precise chassis height combined with a reasonable power motor makes this model have the advantages of low center of gravity, strong passability, and smooth operation under heavy load suspension.
4.Application areas
Mainly used as robot chassis for exploration, rescue, reconnaissance, photography and other functions.
Product Views

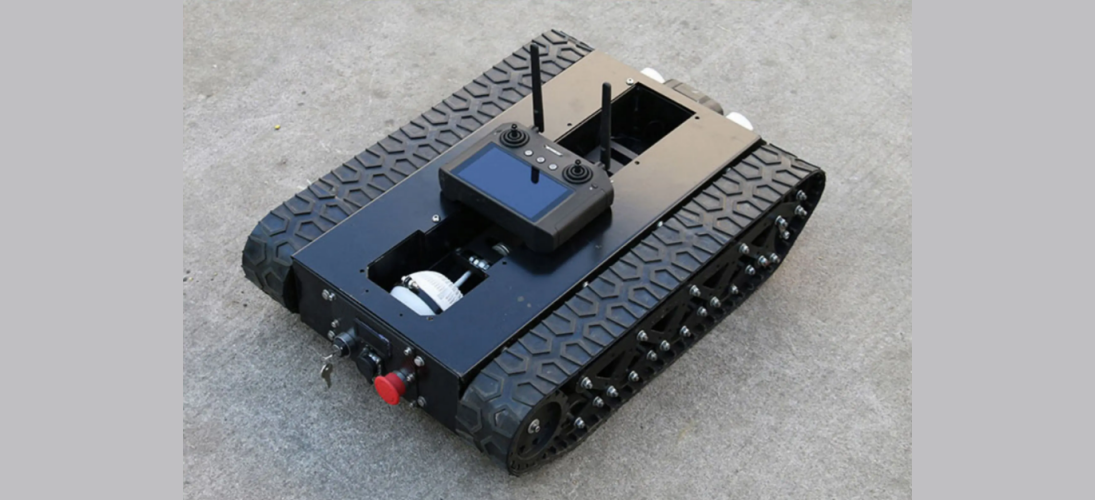

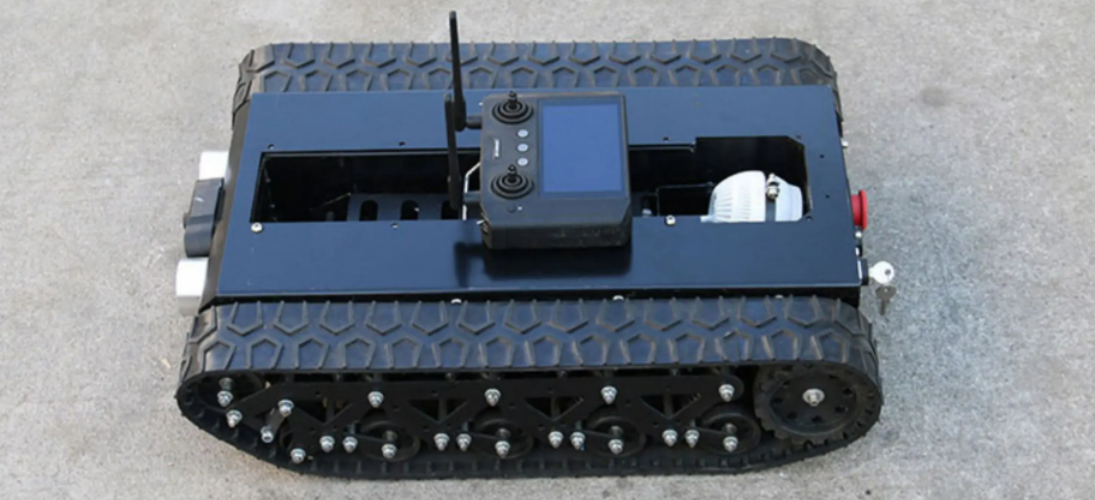

Thickened carbon steel body, precision welded, built to last

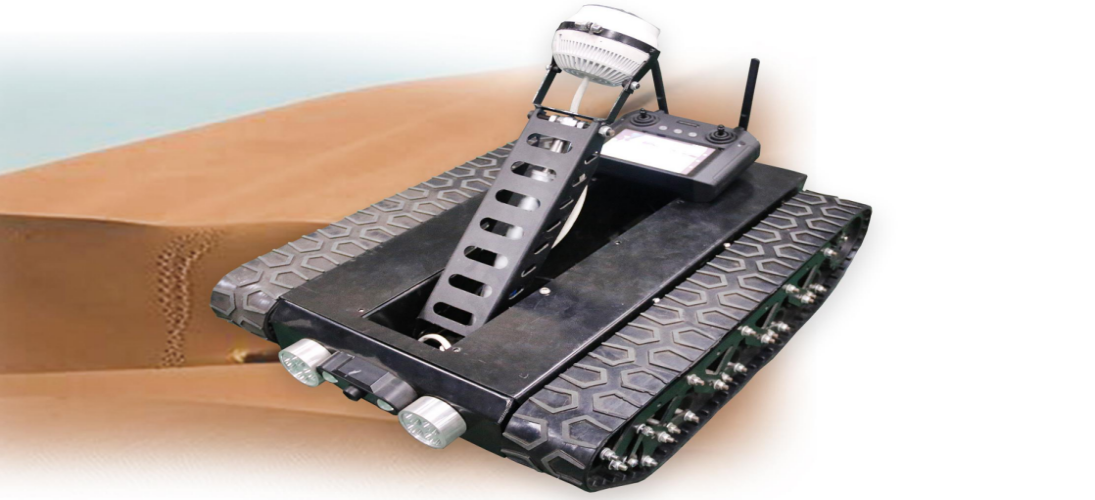

Rubber tracks with independent suspension, heavy-load shock absorption, smooth all-terrain travel
Real Shot

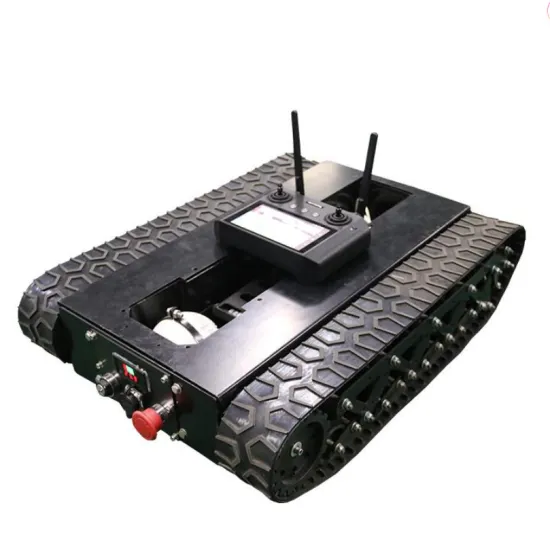

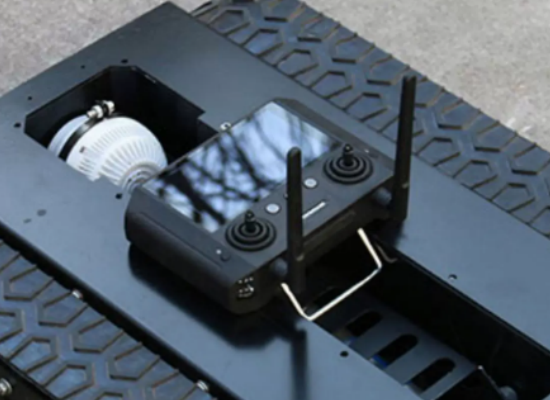

Smart remote control, in-situ 360° rotation, agile maneuvering

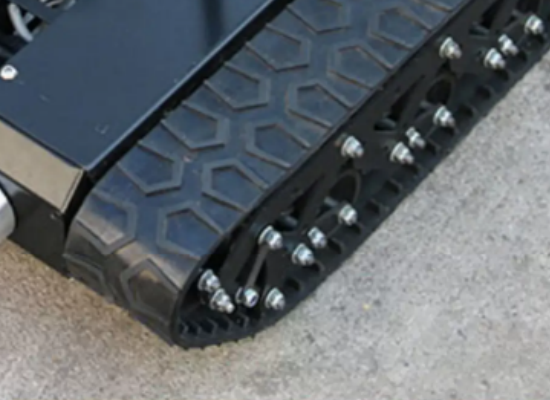

Rubber tracks with independent suspension, 30° climbing, all-terrain access
Product parameters
Parameter | Value |
Chassis Model | ZDDP-HWK-80 |
Chassis Dimensions | 600MM*600MM*180MM (L*W*H) |
Surface | Plastic Spraying |
Main Material | Carbon Steel / Aluminum |
Braking Method | Motor Braking |
Waterproof Rating | IP55 |
Climbing Ability | 30° Slope |
Running Speed | Standard 0~3KM/H, Customizable |
Turning Radius | In-situ 360° Rotation |
Reducer Parameters | Worm Gear Reducer |
Motor Parameters | Brushless DC Motor |
Control Parameters | Dual-drive Controller (Supports CAN/PWM/232/485) |
Track | Rubber Track (Grade A Natural Rubber, Kevlar Fiber Reinforced) |
Track Pitch | 20MM |
Track Width | 80MM |
Wheel Material | Special Ultra-high Molecular Weight Synthetic Material |
Service
We have a highly professional service team.
Team members are the elites in their respective fields, they have gone through strict selection and systematic training, have a wealth of professional knowledge and superb skills.
Whether facing complex technical problems or daily service needs, they can quickly understand your needs with keen insight and provide the perfect solution with efficient action.
Company Introduction
Zhengding Machinery Co., Ltd. in Dezhou is a leading manufacturer in the all terrain walking industry, specializing in the research and production of all terrain rubber tracks and track chassis, intelligent robot chassis, and track assemblies. It is a group style military enterprise.
The product supports customization and is sold globally with quality assurance.
