Product Description
The Helios series LiDAR features a modular architecture with customizable beam distribution, covering 32-line and 16-line models.
Helios32 offers 2 customized specs; Helios16 delivers high performance, high reliability and high cost-effectiveness.

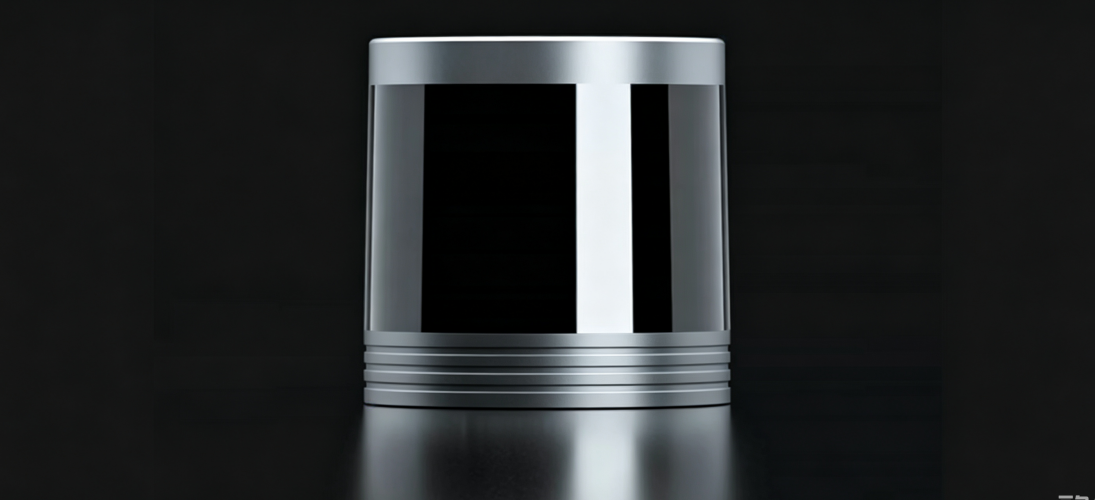

Product Display

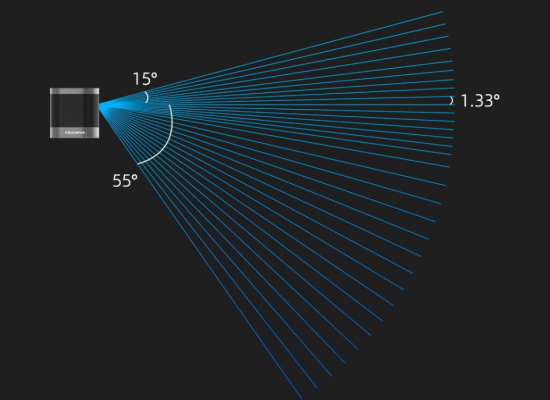

Helios 32(H32F70)
Featuring a 70° ultra-wide vertical FOV and a 55° downward tilt to eliminate blind spots, it achieves perception and blind-spot compensation in one step, greatly simplifying vehicle sensor configuration.
Helios 32 (H32F26)

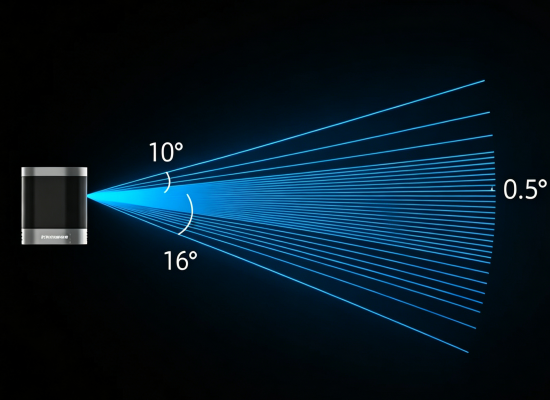

Featuring a 26° vertical FOV with densified central beams and the highest vertical resolution in the series at 0.5°.

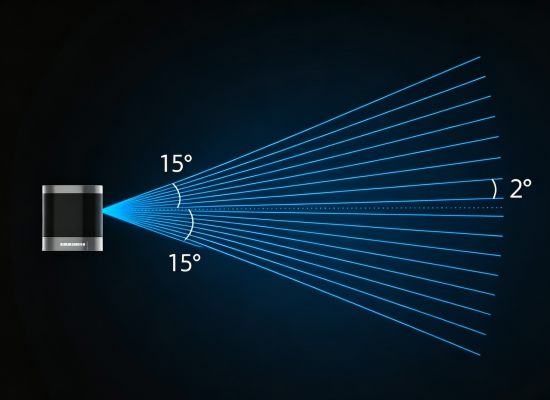

Helios 16
Featuring a 30° vertical FOV with 16 evenly distributed channels.

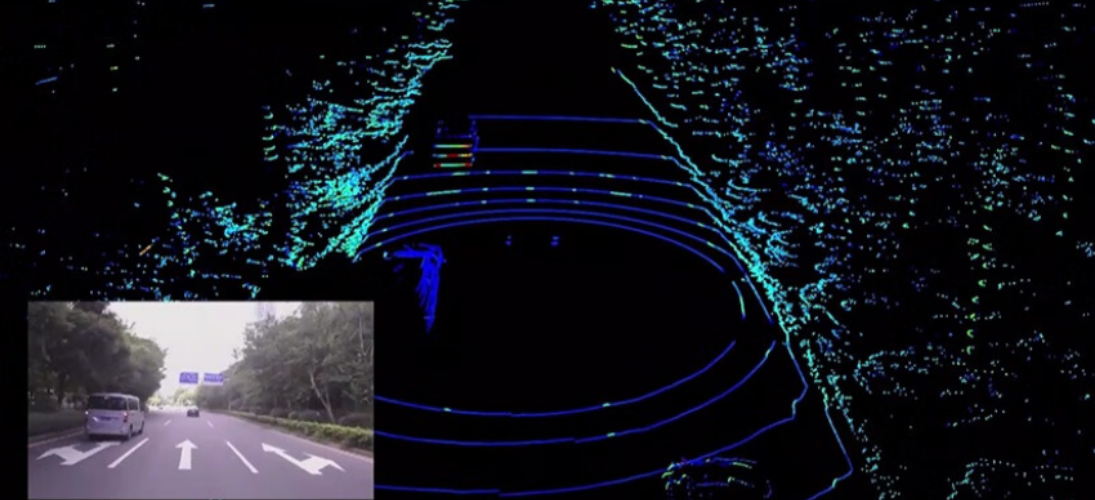

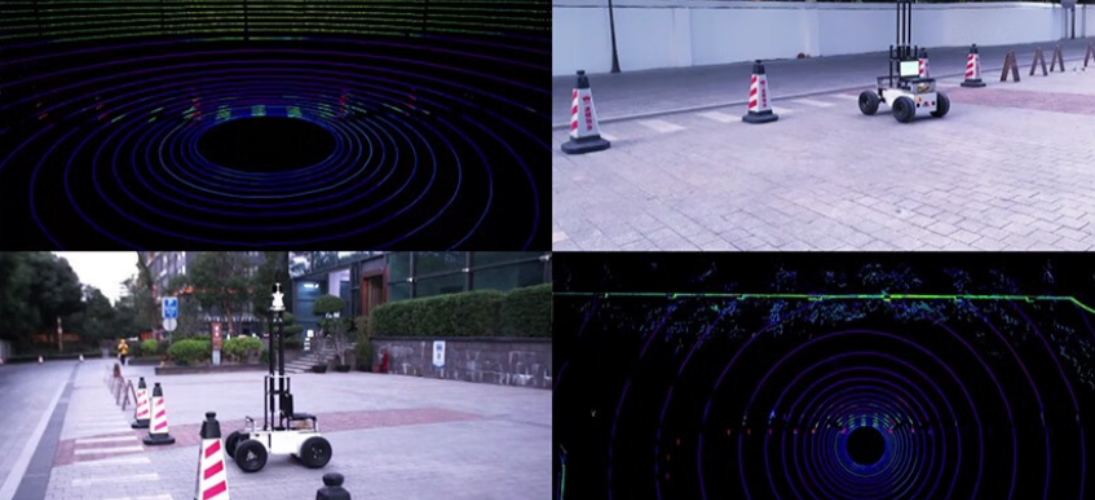

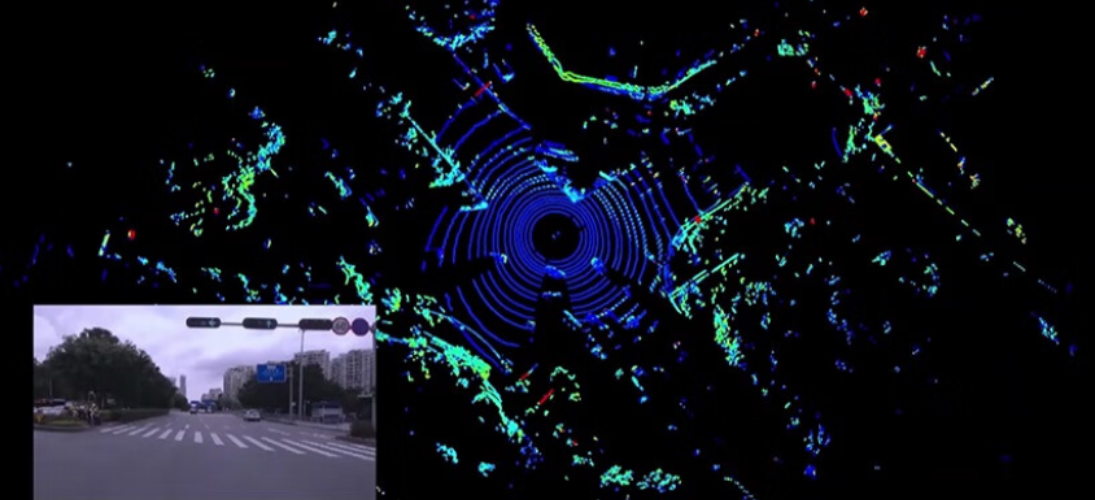

Measured Point Cloud
Helios 16 Point cloud effect
Helios 32(H32F26)Point cloud effect
Helios 32(H32F70)Point cloud effect

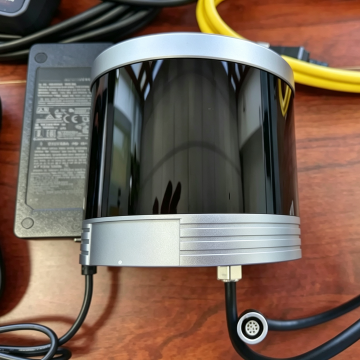

Actual Photos
Main Application Scenarios:
Environmental perception for autonomous/assisted driving vehicles; navigation and obstacle avoidance for unmanned delivery vehicles and AGV robots; 3D surveying, mapping and localization
Product parameters
parameter | Helios 16 | Helios 32 | Helios 32 |
H16 | H32F70 | H32F26 | |
Specification | — | 70° FOV | 26° FOV |
Number of Channels | 16 | 32 | 32 |
Laser Wavelength | 905nm | 905nm | 905nm |
Laser Safety Class | Class 1 Eye Safe | Class 1 Eye Safe | Class 1 Eye Safe |
Ranging Capability¹ | 150m (110m@10% NIST) | 150m (110m@10% NIST) | 150m (110m@10% NIST) |
Blind Zone | ≤0.2m | ≤0.2m | ≤0.2m |
Accuracy (Typical)² | 1cm | 1cm | 1cm |
Horizontal FOV | 360° | 360° | 360° |
Vertical FOV | 30° (-15°~+15°) | 70° (-55°~+15°) | 26° (-16°~+10°) |
Horizontal Angular Resolution³ | 0.1°/0.2°/0.4° | 0.1°/0.2°/0.4° | 0.1°/0.2°/0.4° |
Vertical Angular Resolution | 2° | Up to 1.33° | Up to 0.5° |
Frame Rate | 5Hz/10Hz/20Hz | 5Hz/10Hz/20Hz | 5Hz/10Hz/20Hz |
Rotation Speed | 300/600/1200rpm (5/10/20Hz) | 300/600/1200rpm (5/10/20Hz) | 300/600/1200rpm (5/10/20Hz) |
Output Points | 288,000pts/s (Single) | 576,000pts/s (Single) | 576,000pts/s (Single) |
Ethernet Output | 100Base-T1 | 100Base-T1 | 100Base-T1 |
Output Data Protocol | UDP packets over Ethernet | UDP packets over Ethernet | UDP packets over Ethernet |
UDP Packet Content | 3D coordinates, reflectivity, timestamp, etc. | 3D coordinates, reflectivity, timestamp, etc. | 3D coordinates, reflectivity, timestamp, etc. |
Operating Voltage | 9-32V | 9-32V | 9-32V |
Power Consumption¹ | 11W | 12W | 12W |
Weight (Excl. Cable) | 1000g±50g | 1000g±50g | 1000g±50g |
Dimensions | φ100mm × H100mm | φ100mm × H100mm | φ100mm × H100mm |
Operating Temperature⁴ | -40℃ ~ +60℃ | -40℃ ~ +60℃ | -40℃ ~ +60℃ |
Storage Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ |
Time Synchronization | $GPRMC with 1PPS, PTP & gPTP | $GPRMC with 1PPS, PTP & gPTP | $GPRMC with 1PPS, PTP & gPTP |
Ingress Protection | IP67, IP6K9K | IP67, IP6K9K | IP67, IP6K9K |

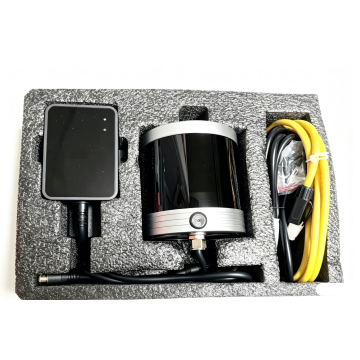

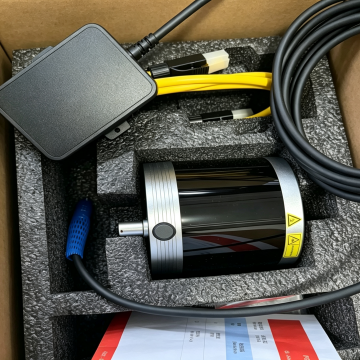

Accessory Details
Accessory | Qty |
3m Straight Connector Junction Box Assembly | 1 |
RJ45 Dual-ended Ethernet Cable | 1 |
Power Adapter | 1 |
AC Power Cord | 1 |
Mounting Screws | 6 |
