Product Description
MX redefines vehicle mounted medium to long range LiDAR
MX is the new generation of medium to long range LiDAR on the RoboSenseM platform, combining outstanding cost-effectiveness, leading performance, and compactness.
MX is not only equipped with RoboSense's self-developed SoC chip M-Core, but also uses the two-dimensional scanning chip of the M platform. At the same time, the transceiver system completes the chip iteration upgrade, which is the culmination of laser radar chipization.

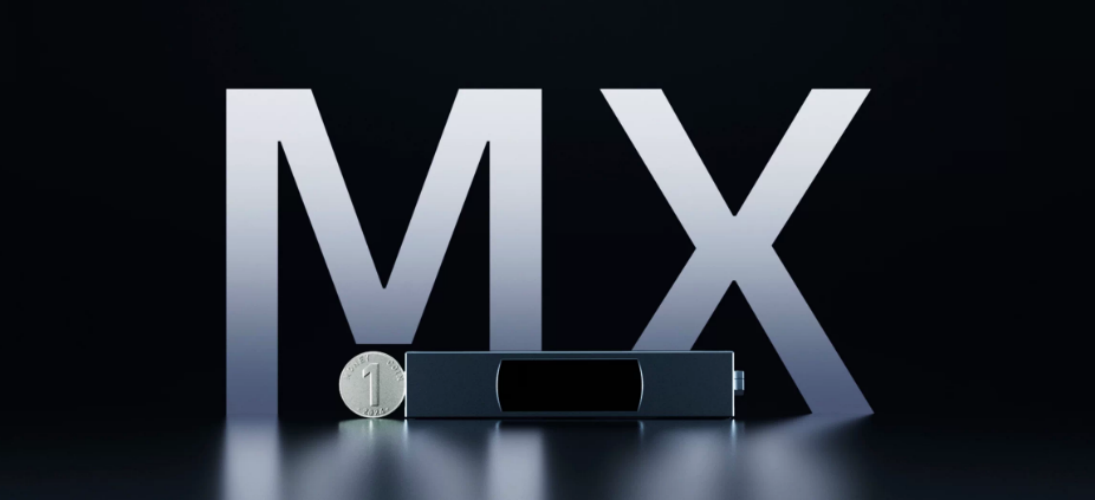

Thanks to its ultimate design, MX boasts an unparalleled 25mm slim and light appearance, ultra quiet running sound, and ultra-low power consumption below 10W.
The MX has a maximum range of 200 meters, a field of view angle of 120 ° x25 °, 126 lines (equivalent to 251 lines in the R0I area), and an upgraded intelligent "gaze" function with globally adjustable ROI, providing a safer and more efficient intelligent driving experience.
Product Advantages

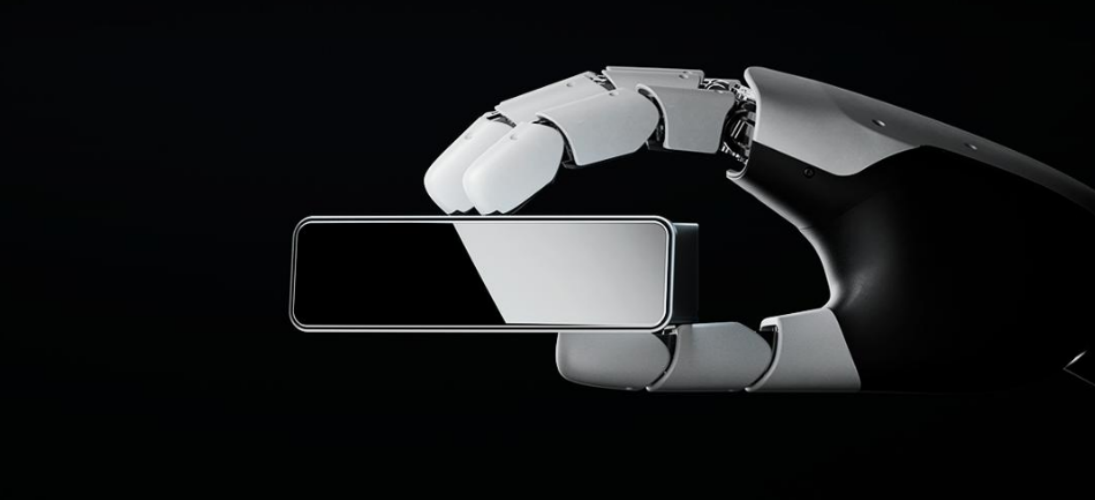

1. Lightweight and compact, elegant and agile
2. Inside and outside the cabin, there is silence and quietness
3. ROI globally adjustable, equivalent to 251 lines
4. Self developed dedicated SoC chip: M-Core
5. M platform 2D scanning MEMS chip
6. M platform transceiver system, chip iteration upgrade
Extravehicular deployment: Integrated roof fusion, ultra-low wind resistance

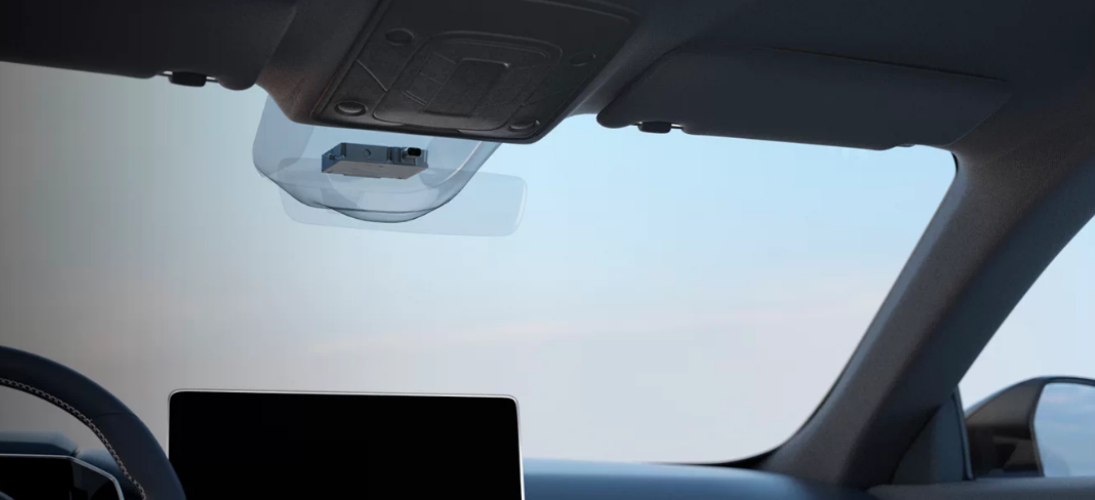

Cabin deployment: Extremely small KOZ *, driver's field of view obstructed by "0"
Equipped with professional self-developed SoC chip: M-Core
1. Advanced architecture with strong performance:
Integrated quad core 64 bit APU+dual core MCU, clock speed of 1GHz, 8MByte on-chip storage unit
2. Specialized design, powerful empowerment
Multi threshold TDC increases weak echo detection capability by 4 times and equivalent distance resolution capability by 32 times
3. High integration, small area, low power consumption
Integrating backend circuits reduces circuit board area by 50%, power consumption by 40%, and significantly lowers costs
Leading performance intelligent adaptation for advanced inte
Parameter | Value |
Max Range | 200m |
Number of Lines | 126 lines (ROI: equivalent to 251 lines) |
Thickness | 25mm |
Best Angular Resolution (H×V) | 0.1°×0.1° |
FOV (H×V) | 120°×25° |
Power Consumption | <10W |

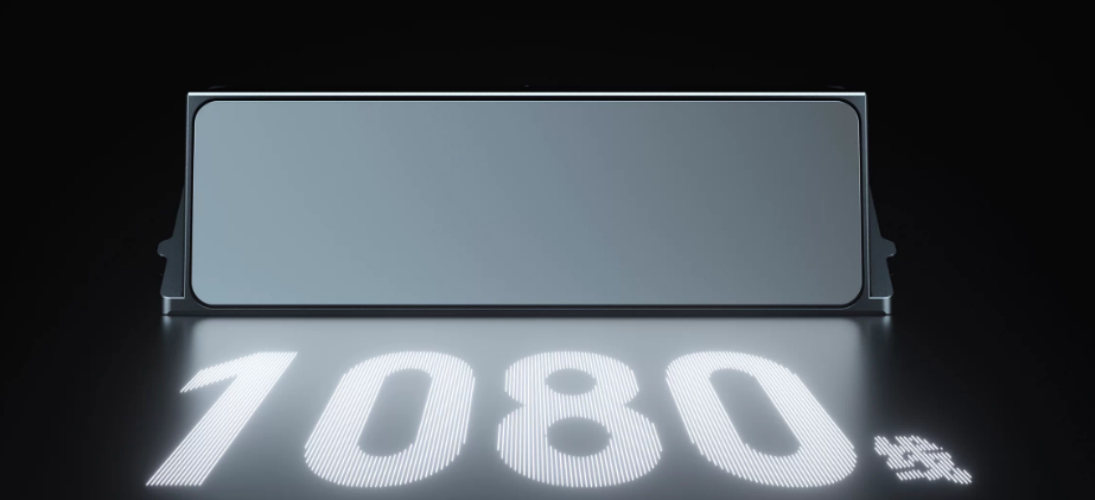

EM4
The world's first "thousand line" ultra long distance digital LiDAR
EM4 is the first product of RoboSense's new digital architecture EM platform, which integrates advanced technologies such as digital architecture, crosstalk cancellation, all condition optoelectronic signal processing, and data lossless compression.
It has top performance such as up to 1080 lines, a range of up to 600 meters, and an imaging capability of 25.92 million points per second, leading car mounted LiDAR into the era of "thousand lines".
EM4 can provide 1080P high-definition 3D perception capability for cars, accurately identifying small objects such as tires, cones, and paper boxes in the distance.
Compared to current mainstream LiDAR products, EM4 can increase the response time of intelligent driving systems by up to 70%, making system decision-making more relaxed and providing a safer and more comfortable driving experience.
Parameter | Value |
Max Number of Lines | 1080 lines |
Points/sec (Single Echo) | 25.92M pts/s |
Max Range | 600m |
FOV | 120°×27° |

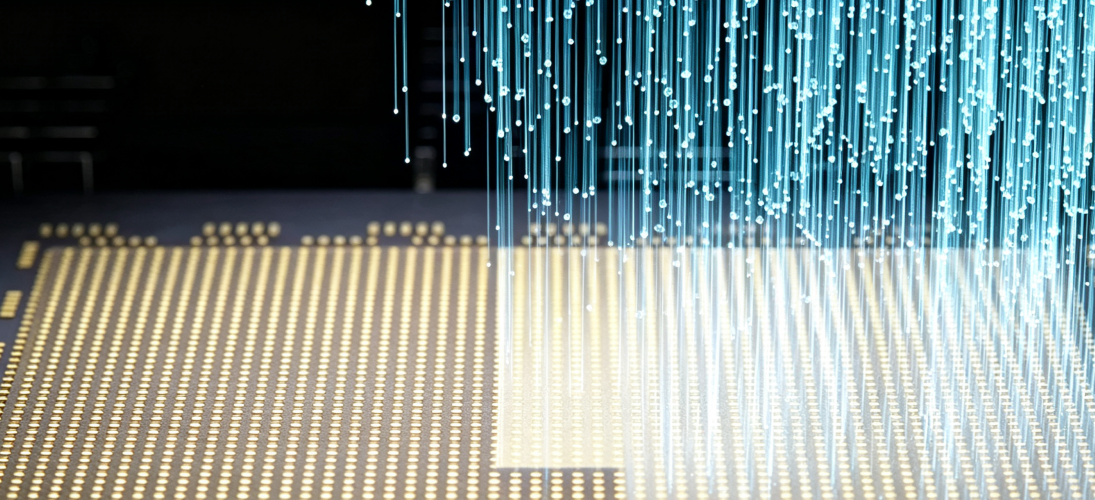

Fully Digital Architecture | SPAD-SoC chip |
Data Lossless Compression Rate | 60% |

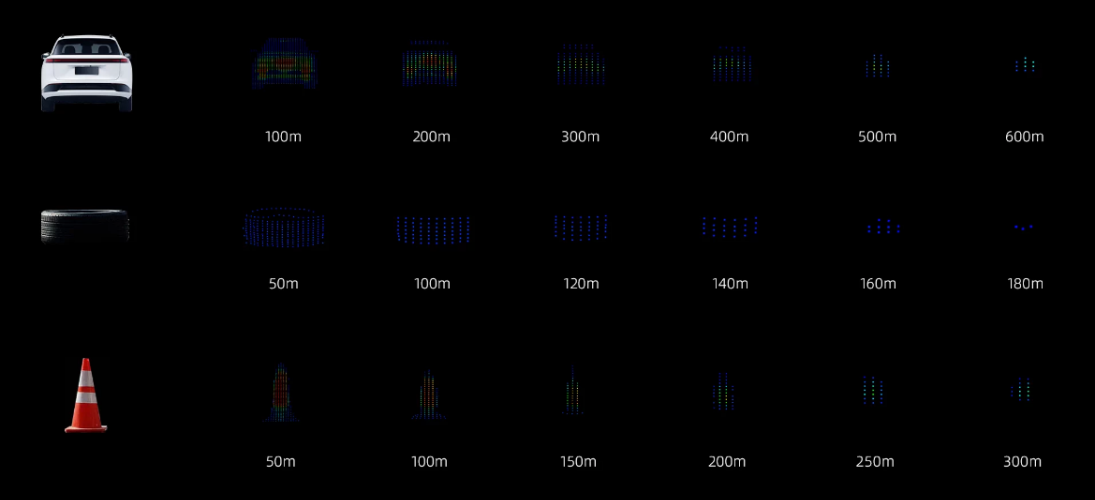

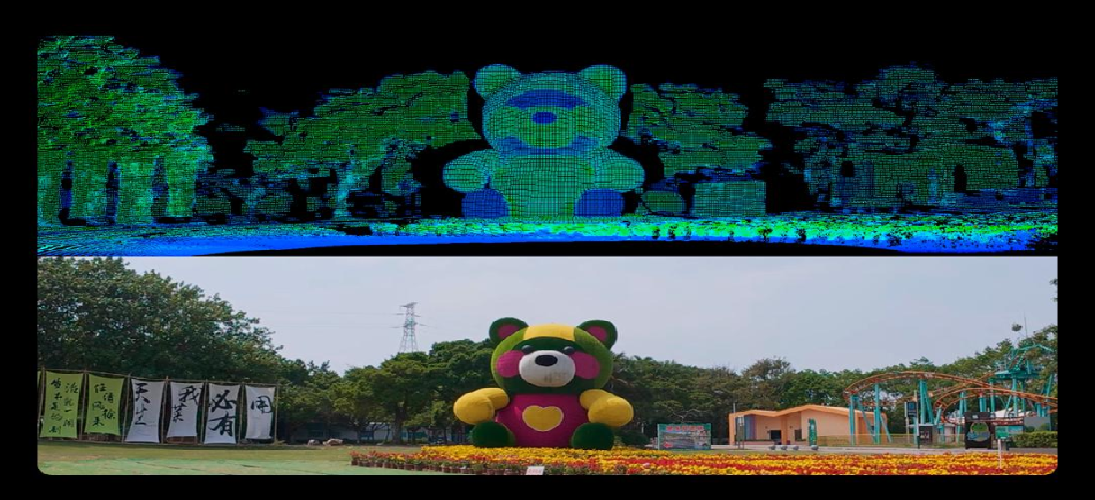

The world's first 1080 line LiDAR accurately detects distant objects
Exclusive core technology controls all working conditions
Realize high anti inflation suppression

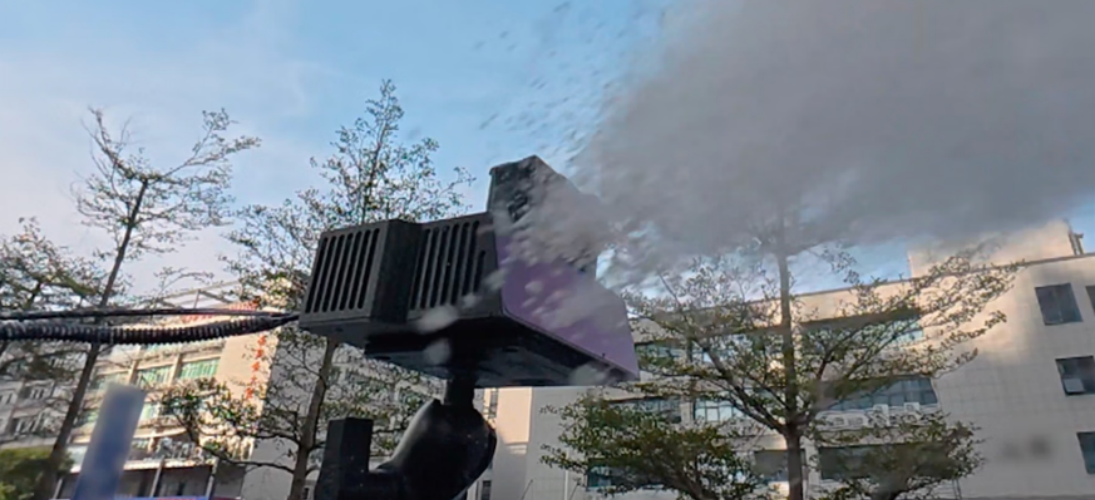

Fearless of rain, fog, and dust

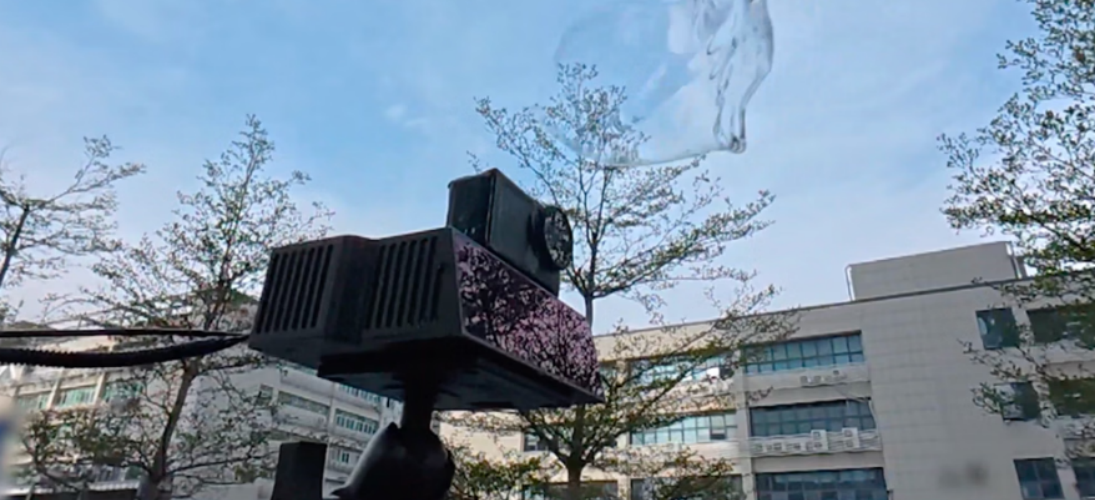

Anti dirt and water stain blocking

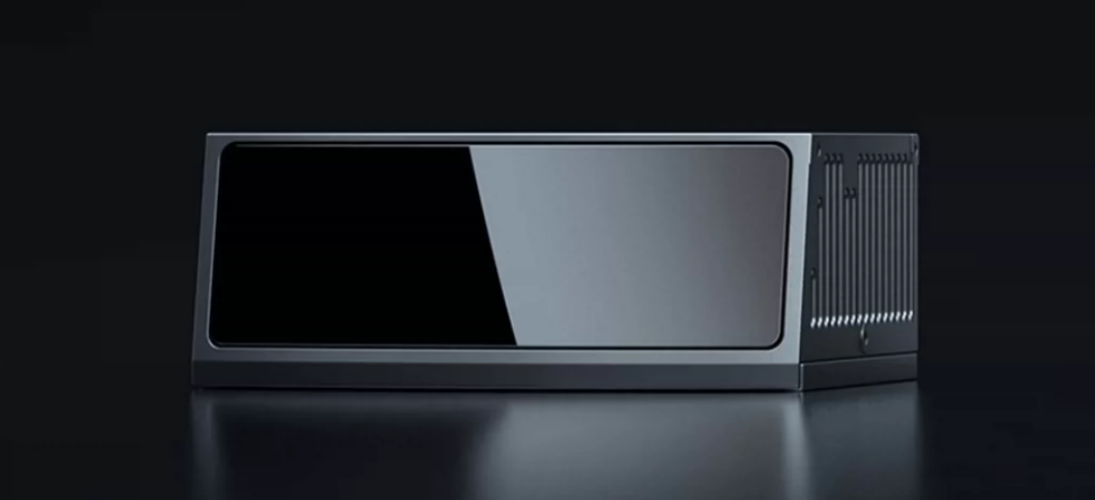

EMX
True 192 line high-performance digital LiDAR
EMX is built on our leading new digital vehicle mounted main LiDAR platform - the EM platform, providing high-definition point clouds with true 192 lines, 2.88 million points per second, a maximum frame rate of 20Hz, a maximum distance of 300 meters, and a maximum horizontal field of view of 140 °.
At the same time, the "gaze" function has been upgraded, with a maximum increase of 6 times in horizontal angle resolution and a significant improvement in dynamically adjustable performance range.
EMX supports customization to meet the comprehensive popularization of advanced assisted driving needs for different positioning vehicle models.
Product Advantages
1. Upgrade the "gaze" function
2. Ultra high frame rate
3. Lightweight and compact
4. Adapt to all working conditions
5. SPAD SoC chip
6. VCSEL chip
High performance point cloud：
2.88 million points/second with rich details，20Hz high frame rate, low latency, fast response

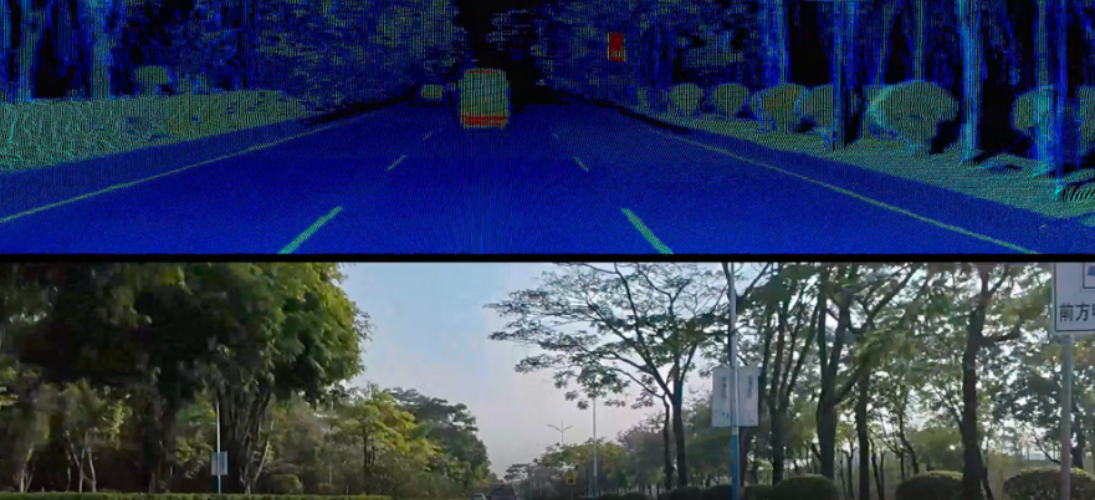

Accurately detect distant objects
Product parameters
Parameter | Value |
Number of Channels | 192 |
Wavelength | 905nm |
Laser Safety Class | Class 1 Eye Safety |
Ethernet Output | 1000M Base T1 |
Detection Range | 200 m@10% |
Output Data Protocol | UDP packets over Ethernet |
Blind Zone | ≤1m |
UDP Packet Contents | Range, angular coordinates, reflectivity, timestamp, etc. |
Accuracy (Typical) | 5cm (1σ) |
Operating Voltage | 9V - 16V |
Horizontal FOV | 120° |
Power Consumption | 10W |
Vertical FOV | 20° |
Operating Temperature | -40℃ ~ +85℃ |
Horizontal Angular Resolution | 0.08° (Avg.) |
Storage Temperature | -40℃ ~ +105℃ |
Vertical Angular Resolution | 0.1° |
Weight | ~520g±5% |
Frame Rate | 10 Hz |
Dimensions (DxWxH) | 110mm (D) x 100mm (W) x 32mm (H) |
Points per Second (Single Echo) | ~2,880,000 pts/s |
Time Synchronization | gPTP |
Points per Second (Dual Echo) | ~5,760,000 pts/s |
Ingress Protection | IP67, IP6K9K |
EMX accessory kit details introduction
Part Name | Quantity |
8 m Ethernet Power Cable Harness | 1 |
RJ45 Dual-End Ethernet Cable | 1 |
Power Adapter | 1 |
AC Power Cable | 1 |
Power Junction Box | 1 |
M5 Screws | 6 |
