Product Description
EMX is built on RoboSense's leading global digital vehicle mounted main LiDAR platform - the EM platform, specifically designed for L2+applications, covering low-speed robot application scenarios such as unmanned delivery, commercial cleaning, unmanned mining trucks, and unmanned inspections. It provides high-definition point clouds with true 192 lines and 2.88 million points per second 200m@10 %Ultra long low anti object detection distance.
True 192 Line: Insight into Details on a Large Scale
EMX provides 192 line scanning, 0.08 ° x0.10 ° global angular resolution, and 2.88 million points per second of high-definition point cloud.
EMX can capture every detail of the environment within a 300 meter range, helping advanced driver assistance systems achieve faster and more accurate planning decisions.
Accurately detect distant objects

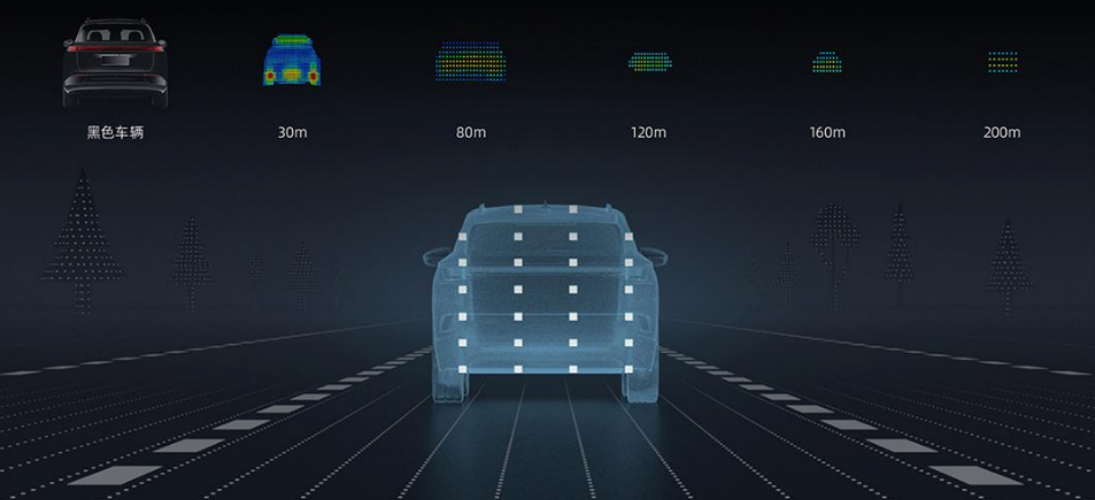

·Black vehicle
Clear detection of black vehicles within 200 meters, emergency avoidance or braking speed increased to 160km/h.

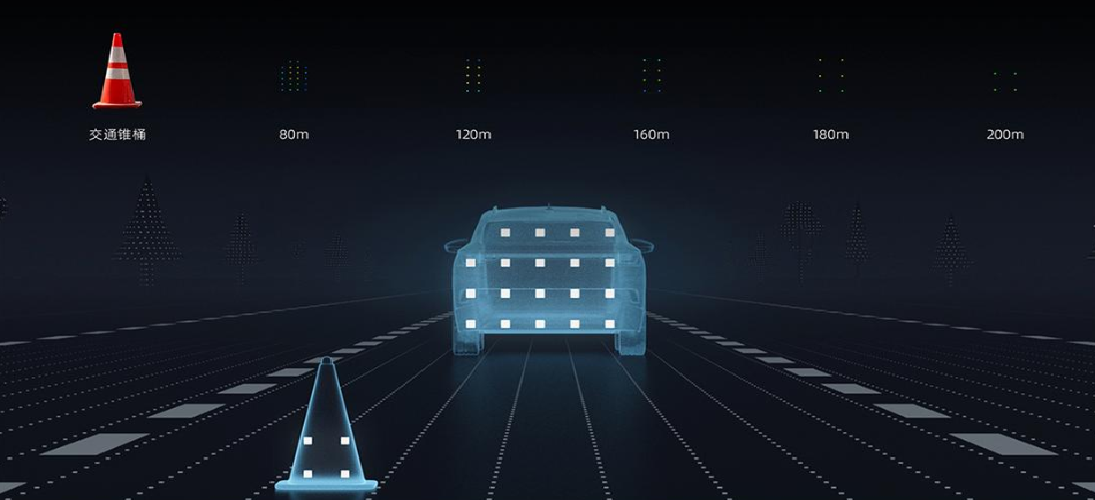

·Traffic cone bucket
Clear detection of traffic cones within 200 meters, emergency avoidance or braking speed increased to 160km/h.

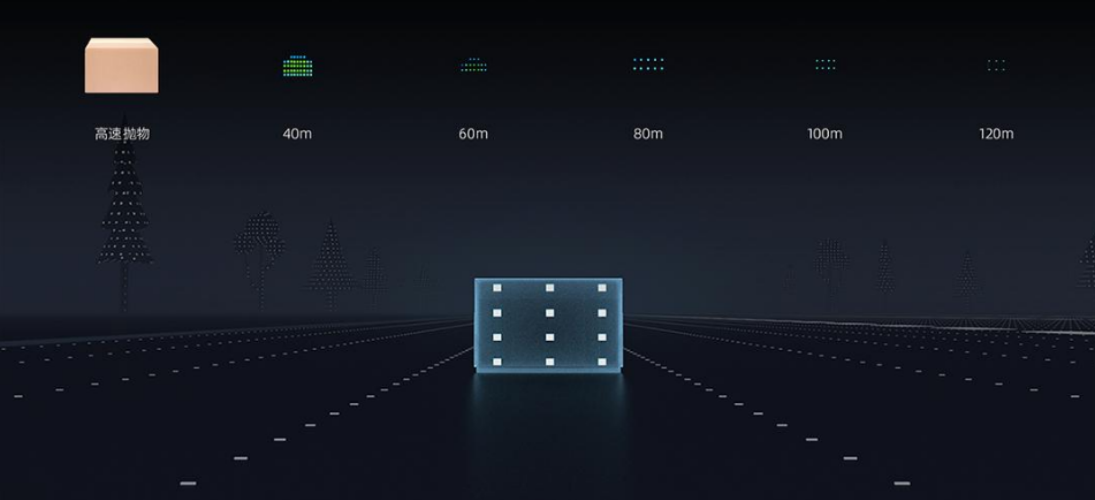

·High speed throwing
Clear detection of express cardboard boxes (30x17cm) within 120 meters, emergency avoidance or braking speed increased to 121km/h.

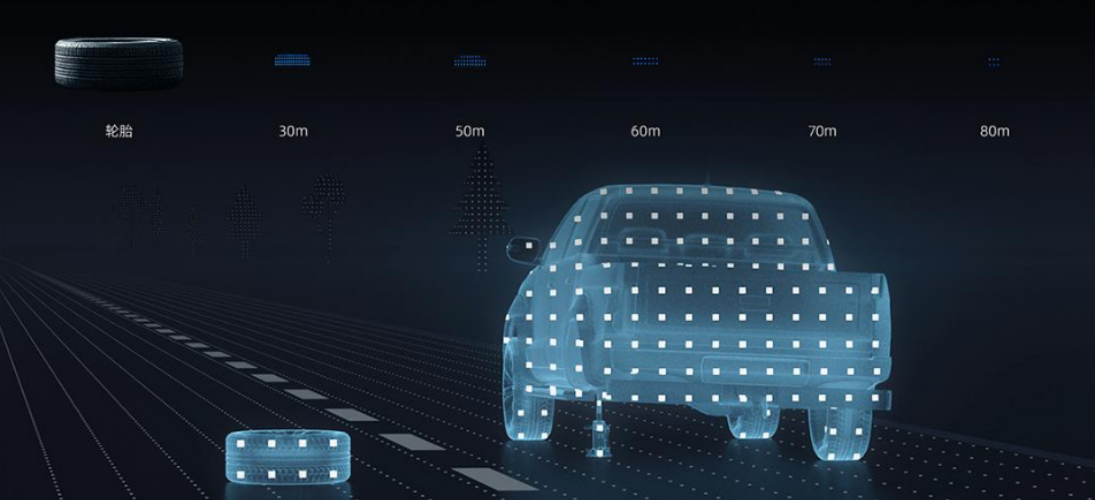

·Black tires
Clear detection of accidentally scattered tires within 80 meters, emergency avoidance or braking speed increased to 96 km/h.
Exclusive core technology adapted to all working conditions
Under the exclusive technical support of the EM platform, EMX also possesses advanced technologies such as high anti expansion suppression, rain, fog, and dust denoising, anti dirt and water mark obstruction, etc., to safeguard advanced assisted driving systems in various complex scenarios.

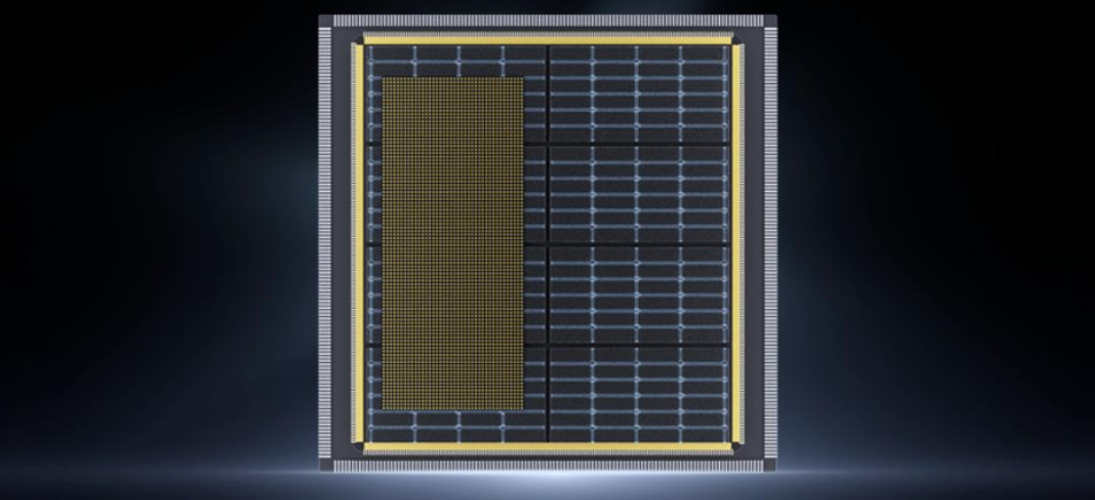

Digital Architecture
Based on RoboSense's leading digital architecture, EMX is equipped with digital SPAD SoC chips and VCSEL chips, which not only have high detection sensitivity and preserve original information, but also facilitate the temporal and spatial synchronization alignment of digital LiDAR data with camera raw data, achieving ultimate fusion perception effect and accelerating breakthroughs in automotive intelligent innovation.
Meanwhile, with its advanced architecture and highly integrated design, EMX has become the smallest and most sophisticated vehicle mounted digital main LiDAR.

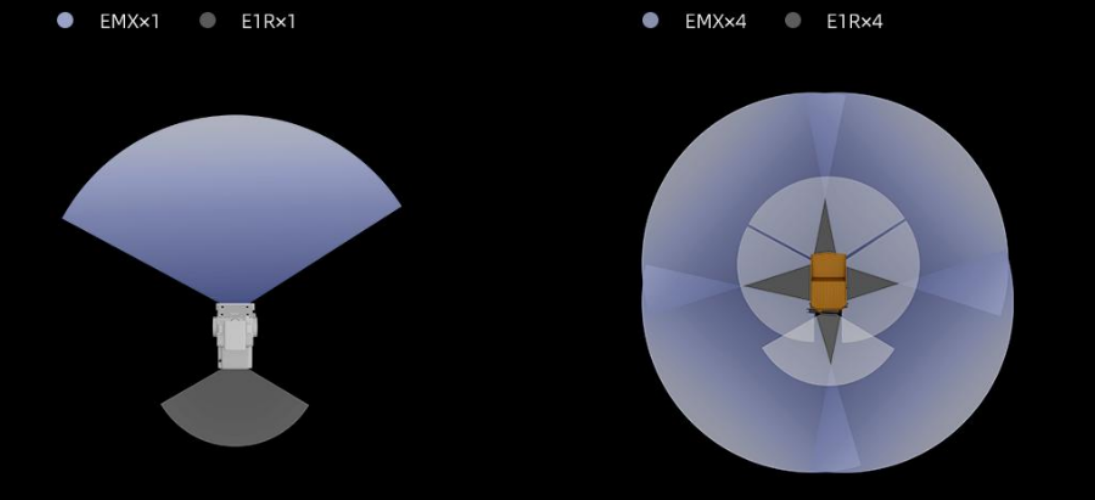

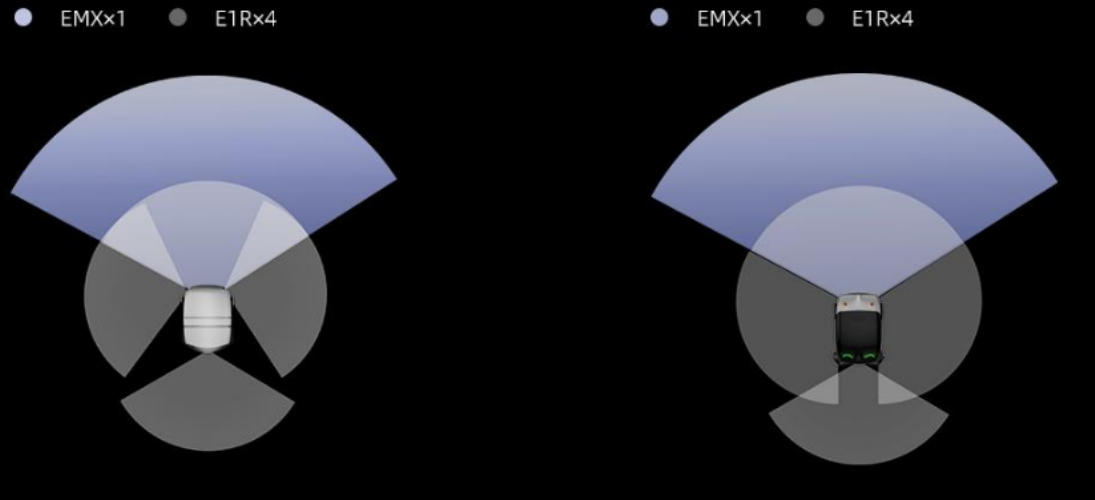

Deployment plan suggestion
EMX is paired with 3-4 E1R solid-state blind spot LiDAR to achieve 360 ° no dead corners, which can meet the vast majority of application scenarios, such as unmanned delivery, commercial cleaning, unmanned inspection vehicles, unmanned mining trucks, etc.
Product parameters
Parameter | Value |
Number of Channels | 192 |
Wavelength | 905nm |
Laser Safety Class | Class 1 Eye Safety |
Ethernet Output | 1000M Base T1 |
Detection Range | 200 m@10% |
Output Data Protocol | UDP packets over Ethernet |
Blind Zone | ≤1m |
UDP Packet Contents | Range, angular coordinates, reflectivity, timestamp, etc. |
Accuracy (Typical) | 5cm (1σ) |
Operating Voltage | 9V - 16V |
Horizontal FOV | 120° |
Power Consumption | 10W |
Vertical FOV | 20° |
Operating Temperature | -40℃ ~ +85℃ |
Horizontal Angular Resolution | 0.08° (Avg.) |
Storage Temperature | -40℃ ~ +105℃ |
Vertical Angular Resolution | 0.1° |
Weight | ~520g±5% |
Frame Rate | 10 Hz |
Dimensions (DxWxH) | 110mm (D) x 100mm (W) x 32mm (H) |
Points per Second (Single Echo) | ~2,880,000 pts/s |
Time Synchronization | gPTP |
Points per Second (Dual Echo) | ~5,760,000 pts/s |
Ingress Protection | IP67, IP6K9K |
EMX accessory kit details introduction
Part Name | Quantity |
8 m Ethernet Power Cable Harness | 1 |
RJ45 Dual-End Ethernet Cable | 1 |
Power Adapter | 1 |
AC Power Cable | 1 |
Power Junction Box | 1 |
M5 Screws | 6 |
