Product Description
CX128S2 hybrid solid-state LiDAR: new optical structure for a more compact size, detects up to 200m(@10%) at 1.53 million points/sec, reconstructing high-precision 3D point clouds for smart transportation, security & logistics, surveying and industrial automation.
Features

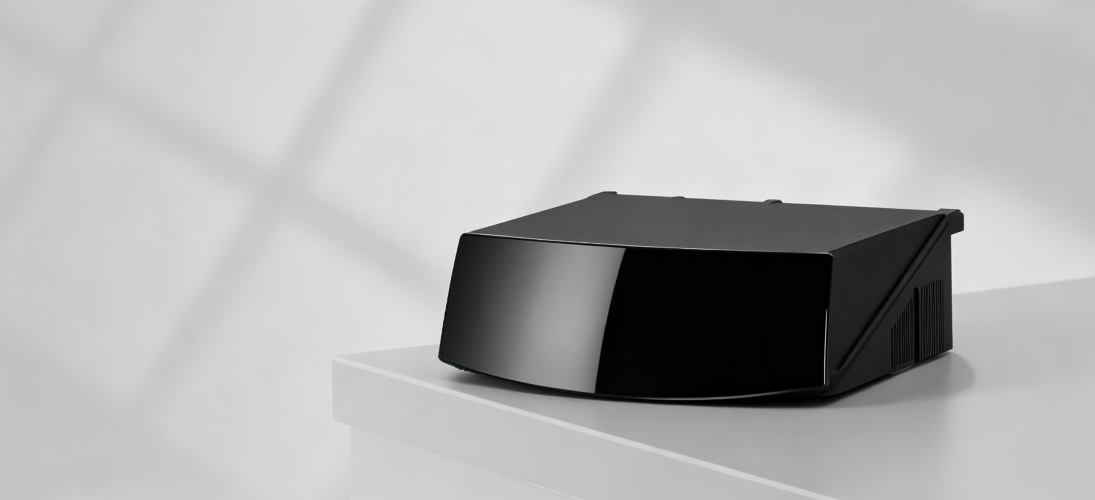

CX128S2
128 line hybrid solid-state laser radar
A brand new optical structure solution with a smaller size and significantly enhanced ranging
High precision perception reconstruction of 3D point cloud
The measurement point speed is as high as 1.53 million points per second
Application
·Intelligent Transportation ·rail transit ·High end security
·Smart Logistics ·surveying and mapping ·Industrial Automation
Product parameters
Parameter | Value |
Wavelength | 905nm |
Laser Safety Class | Class I (Eye Safety) |
Number of Channels | 128 |
Ranging Principle | TOF (Time of Flight) |
Detection Range | 200m@10% |
Range Precision | ±3cm |
Horizontal FOV | 120° |
Vertical FOV | 25°(-12.5°~12.5°) |
Horizontal Resolution | 0.05°/0.1°/0.2° |
Vertical Resolution | 0.125°@ROI, 0.25°@Non-ROI |
Scan Frequency | 5/10/20 Hz |
Data Points per Second | 1,530,000 pts/s |
Communication Interface | Industrial Ethernet |
Power Supply | 9V~32V DC |
Power Consumption | 15W |
IP Rating | IP6K9K |
Operating Temperature | -40℃~85℃ |
Vibration | 5Hz-2000Hz, 3G rms |
Shock | 500m/sec², 11ms duration |
Weight | <1000g |
Dimensions (LxWxH) | 139x115.7x47mm (rear cable, curved); 139x100.3x47mm (rear cable, flat); 139x114.2x47mm (side cable, curved) |
