Product Description

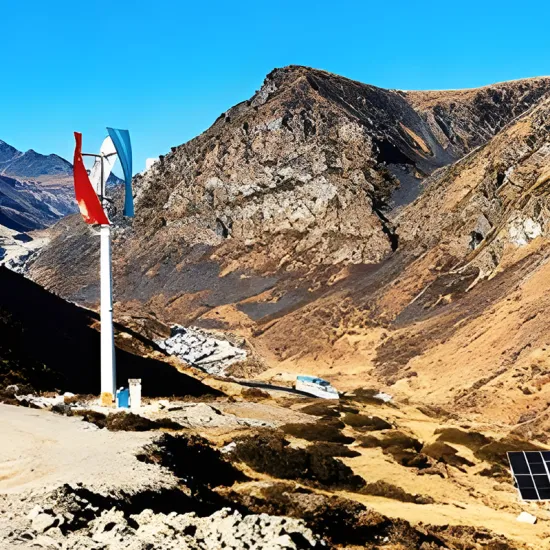

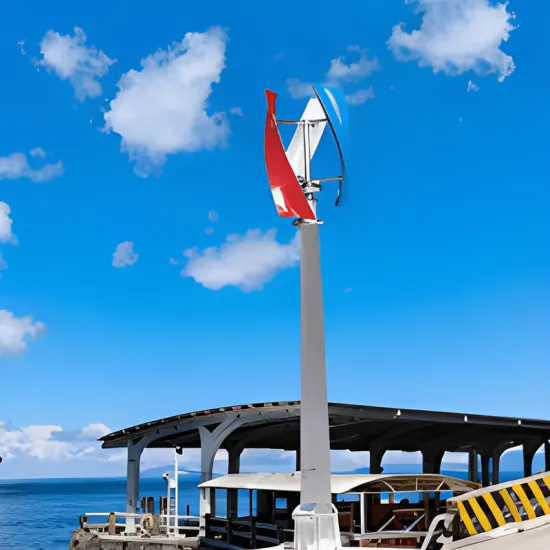

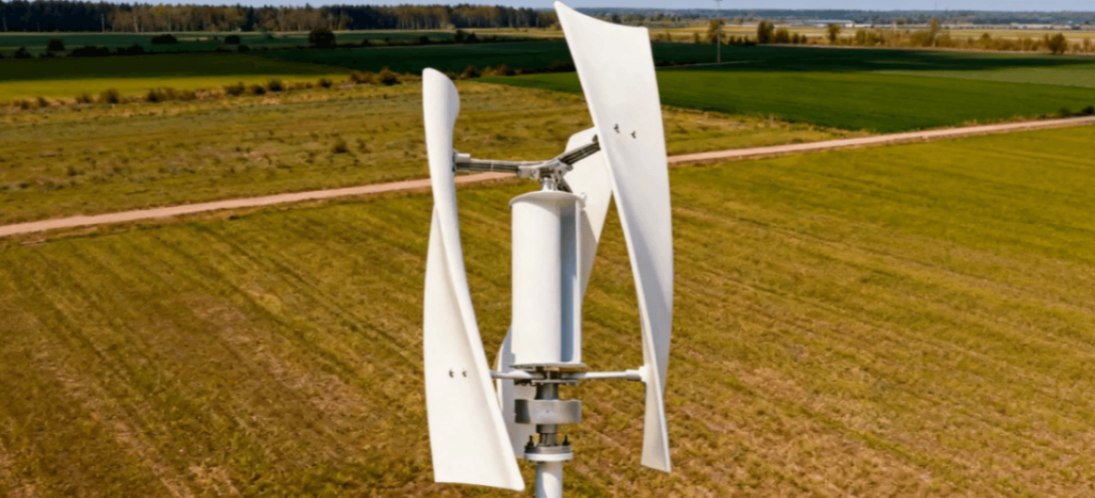

The X-type wind turbine is a compact vertical-axis wind turbine designed for efficient power generation in low- to medium-wind-speed conditions. Its unique cross-shaped blade configuration captures wind from any direction without the need for yaw control and ensures stable performance in turbulent environments. With a low cut-in speed and quiet operation, this model is ideal for residential, off-grid, and small-scale commercial applications.

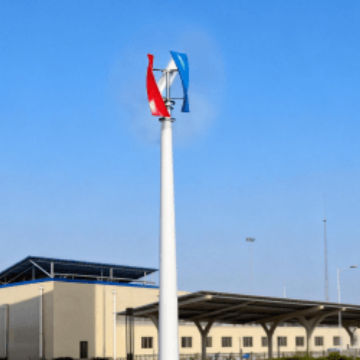

This wind turbine mounting pole is designed to provide a stable and durable support structure for small to medium-sized wind generators. Made of high-strength steel and treated with anti-corrosion coating, it ensures long-term performance in outdoor environments.Ideal for off-grid systems, residential use, and hybrid wind-solar installations.
Product Features

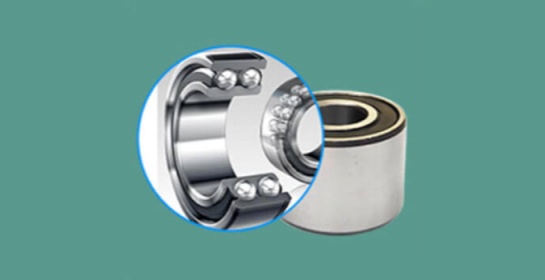

Double-Row Deep Groove Ball Bearings
Engineered with a wider profile and dual-row construction, these bearings effortlessly absorb radial impacts and dynamic wind loads. This design delivers exceptionally low-vibration, whisper-quiet operation while dramatically reducing mechanical wear, giving your end-users long-term reliability and saving you after-sales maintenance costs.

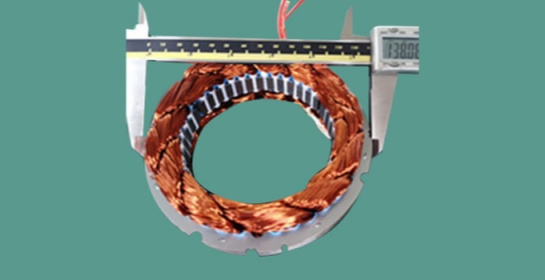

Enlarged Stator Diameter & High Groove Capacity
The increased stator diameter maximizes electromagnetic torque at low wind speeds for higher overall power output. Packed with heavy-gauge, high-purity copper windings inside high-capacity slots, it significantly reduces internal resistance and heat build-up—preventing thermal overload during peak generation and ensuring real, uncompromised power ratings.

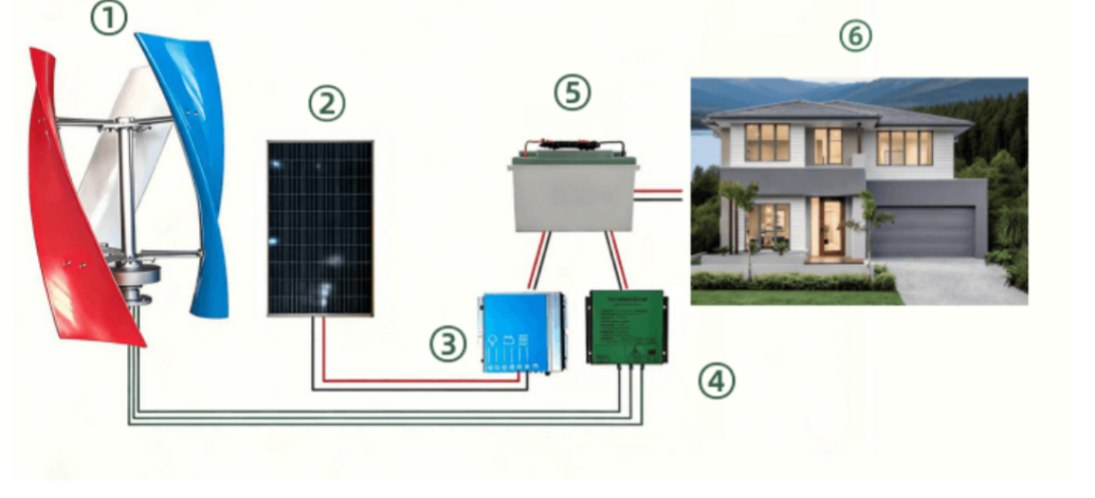

Structure Diagram
① Wind turbine
② Solar panel
③ Photovoltaic controller
④ Wind turbine controller
⑤ Battery bank
⑥ Various home appliances for prefabricated villas
Product parameters
Model | NE-100 | NE-200 | NE-300 | NE-400 |
Rated Power | 100W | 200W | 300W | 400W |
Maximum Power | 130W | 220W | 320W | 420W |
Rated Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
Start-up Wind Speed | 3.0m/s | 3.0m/s | 3.0m/s | 3.0m/s |
Rated Wind Speed | 10m/s | 11.5m/s | 11.5m/s | 11.5m/s |
Safe Wind Speed | 45m/s | 45m/s | 45m/s | 45m/s |
Net Weight of Main Unit | 9kg | 10kg | 11kg | 12kg |
Rotor Diameter | 0.53m | 0.53m | 0.53m | 0.53m |
Number of Blades | 3 | |||
Blade Material | Nylon fiber | |||
Generator | Three-phase AC permanent magnet generator | |||
Braking Method | Electromagnetic brake | |||
Operating Temperature | -40℃—80℃ | |||
Wind Turbine Power | Recommended Pole Height | Pole Diameter | Wall Thickness | Support Type |
300W – 500W | 3m – 6m | 60–76mm | 2.0–2.5mm | Free-standing / Optional guy wire |
600W – 1kW | 6m – 9m | 76–89mm | 2.5–3.0mm | Guy wire recommended |
2kW – 3kW | 9m – 12m | 89–114mm | 3.0–4.0mm | Guy wire required |
5kW | 12m – 18m | 114–140mm | 4.0–5.0mm | Reinforced + guy wire |
10kW | 18m – 24m | 140–219mm | 5.0–6.0mm | Tower structure (not simple pole) |

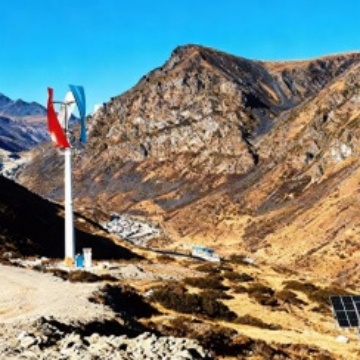

Customer Case
farms
telecom systems
rural homes
